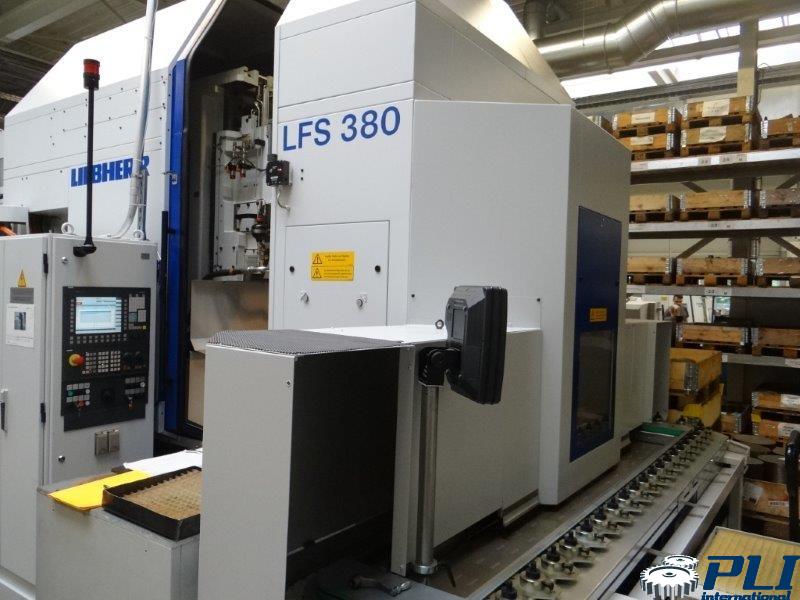

Max. outer pinion diameter: 380 mm
Max. inner sprocket diameter: 380 mm
Maximal height of the piece : 350 mm
Cutting spindle :
- maximum module: 5
- adjustable sleeve stroke: 0 to 70 mm
- maximum speed: 1500 strokes/min
- spindle nose: ISO 40
- adjustable speed: 0 to 30 rpm
- power: 17 kW
- vertical travel of the head (Z1): 400 mm
- horizontal stroke of the upright (X1): 450 mm
Table :
- diameter: 320 mm
- Adjustable speed : 0 to 30 rpm
- table/spindle distance : -50 to 450 mm
Power supply: 400 V, 50 Hz
Weight: 16,000 kg
EQUIPMENT :
CNC SIEMENS 840D
CNC tailstock support type GS20 (predisposed tailstock) stroke 540 mm
Hydraulic workpiece clamp, max. force 72 kN adjustable
Central lubrication unit 280l :
- with pump 100 l/min
- with 0,1 mm fine filtration
- with cooling unit
- with washing gun
Chip conveyor
Oil mist suction ELBARON
Rotary parts loading unit type RL20 :
- capacity diameter 200/300 mm
- capacity weight piece 35 kg
- 180° rotation
- max. vertical travel 200 mm
Workpiece palletization type KKL 20/3600
- dimensions 3600 x 1100 mm
- pallets size 150 mm
- total weight allowed 300 kg
Hydraulic workpiece chuck
Set of loading clamps capacity 26 / 36 mm
Set of loading clamps capacity 45 / 60 mm
Set of loading clamps capacity 60 / 90 mm
