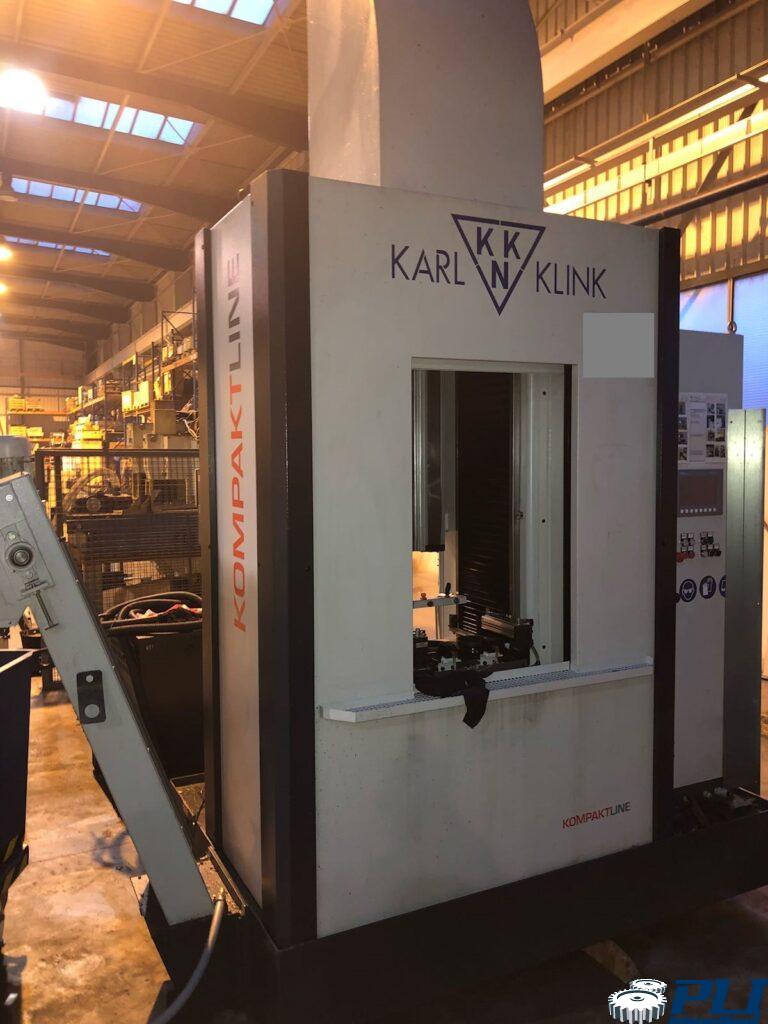

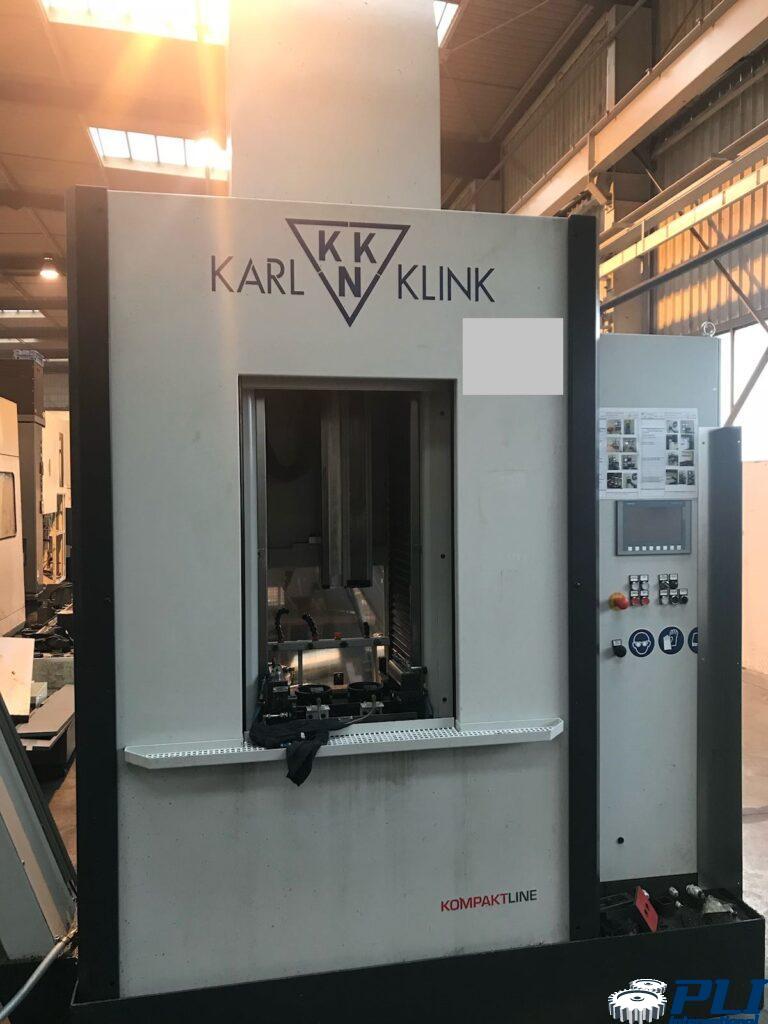

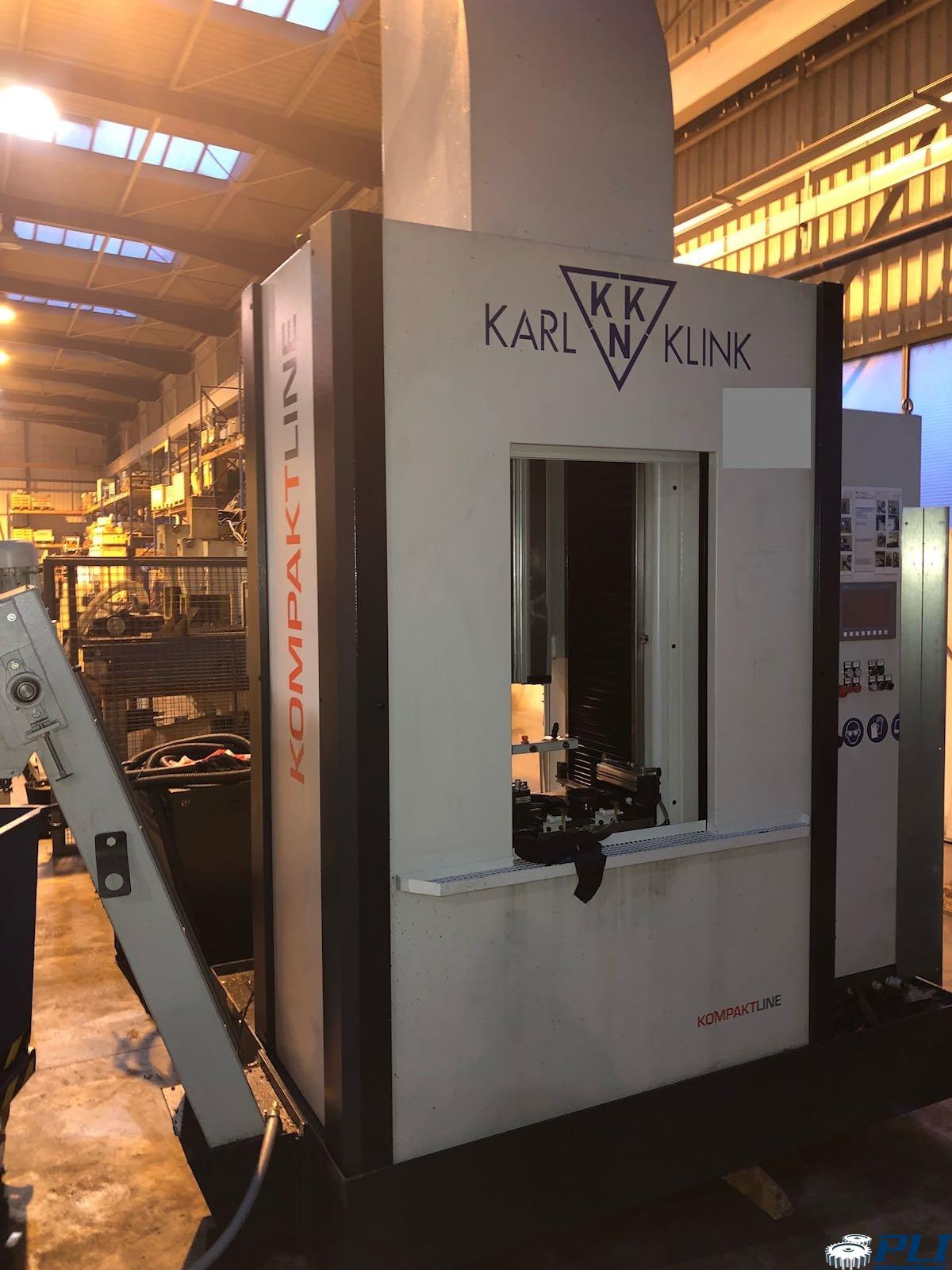

Vertical broaching machine KARL KLINK
Model: RISHM 8.1250.400.S.LV
Pulling force : 8 Tons
Max. broaching stroke: 1250 mm
Max. spindle feed stroke: 500 mm
Spindle length: 650-1400 mm
Table top width: 400 mm
Pinning speed: 1-10m/min
Max. return stroke speed: 1-15m/min
Machine weight : 4300Kg
Electrical power : 25Kw

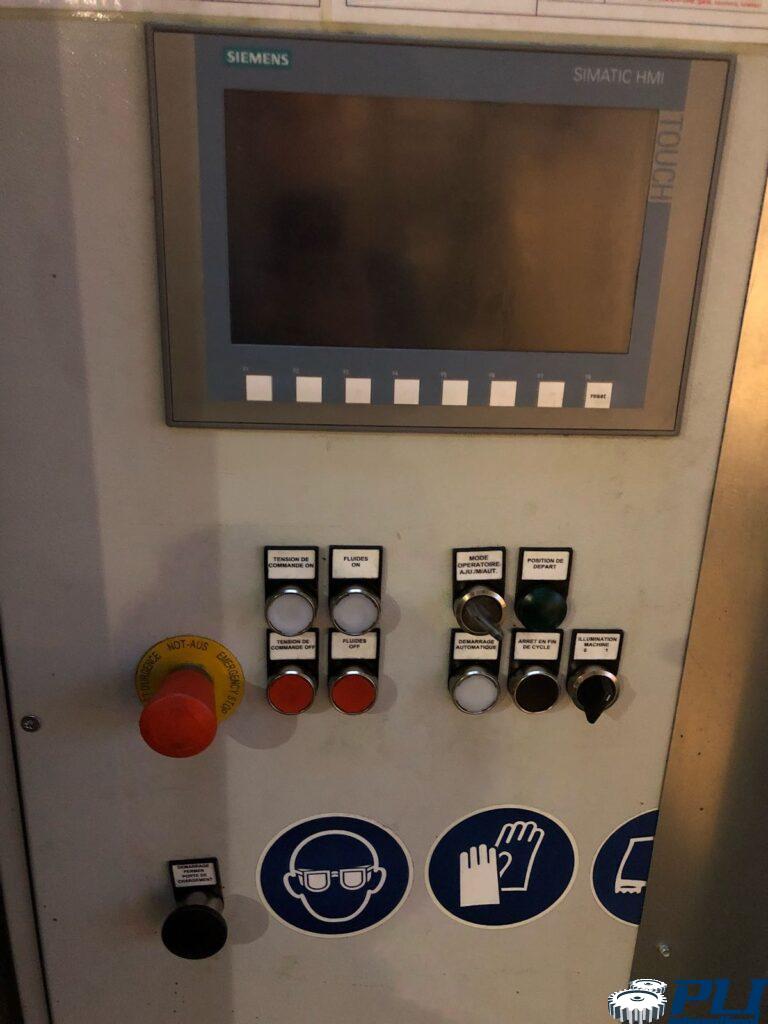

SIEMENS programmable logic controller
Watering tank capacity: 500L
Scraper conveyor
Interface for external automation
Options :
Part program management
Sliding table for rooms
Traction and lifting head with automatic locking
