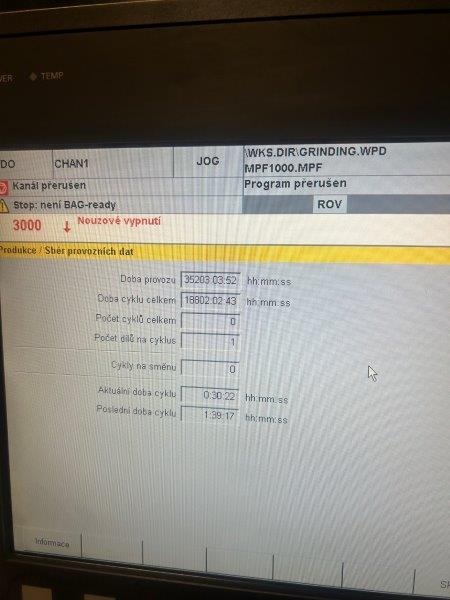

| CNC : | Siemens 840D |
| Workpiece - nominal diameter : | 800 mm |
| Largest grindable profile depth : | 80 mm |
| Largest/smallest distance between the axis of the grinding wheel and the axis of the workpiece (X-axis) : | 100 /670 mm |
| Largest axial travel (Z-axis) : | 1600 mm |
| Largest tangential travel of the sled (Y-axis) : | + 50 / - 250 mm |

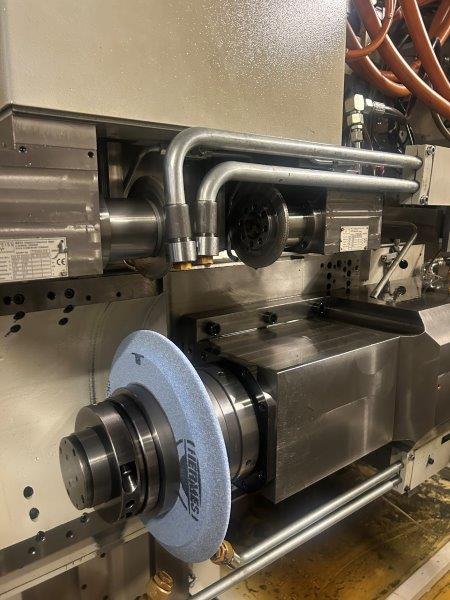

| Dimensions of the grinding wheel Max. diameter : | 450 mm |
| Min. / max. width : | 32 / 80 mm |
| Swivel range of grinding head (A - axis) : | + / - 45° |
| Table diameter : | 800 mm |
| Maximum table load approx. : | 13.000 kg |
| High-performance grinding head : | 50kW |
| Hoffmann filtration unit : |
SOLD

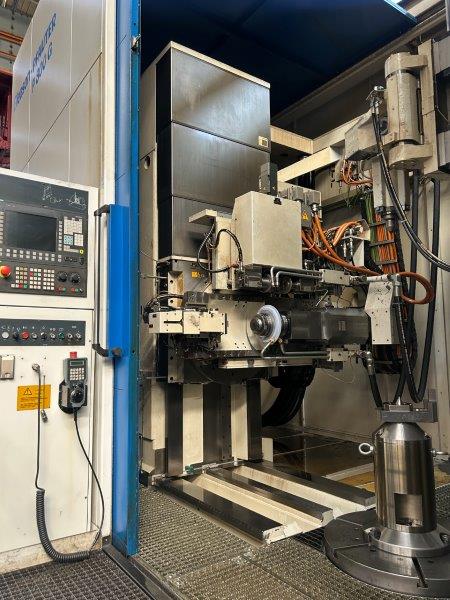

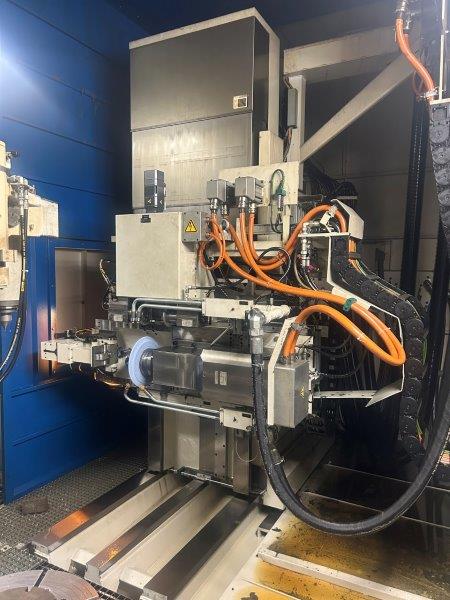

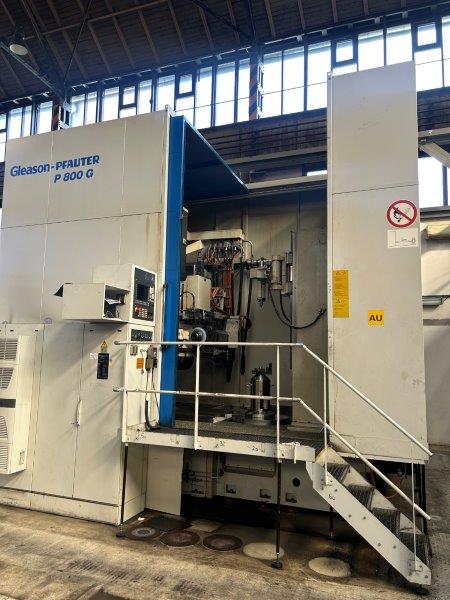

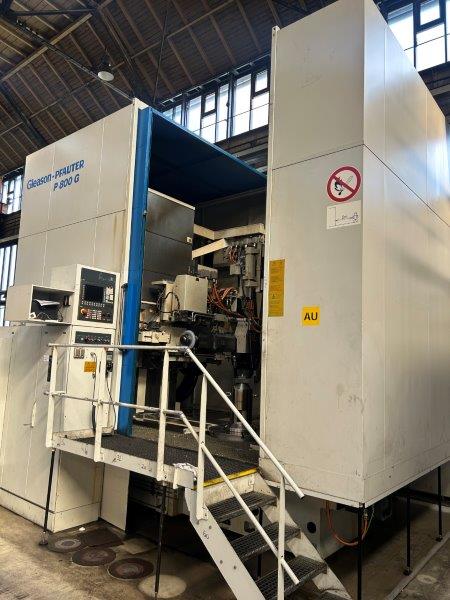

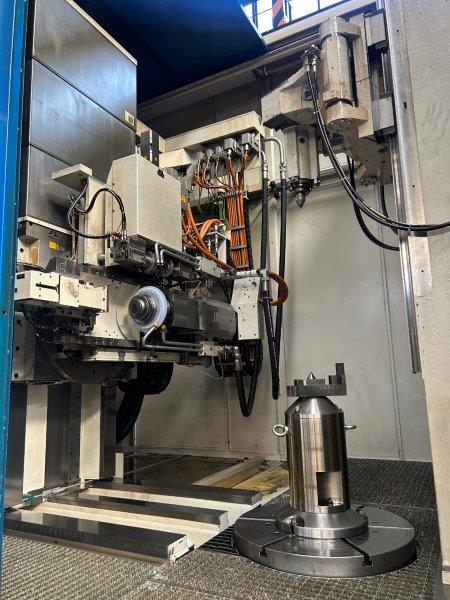

CNC Gear Grinding Machine – GLEASON PFAUTER P800G
| Brand : | GLEASON PFAUTER |
| Model : | P800G |
| Year : | 2008 |
