Gear Grinding Machine
Manufacturer

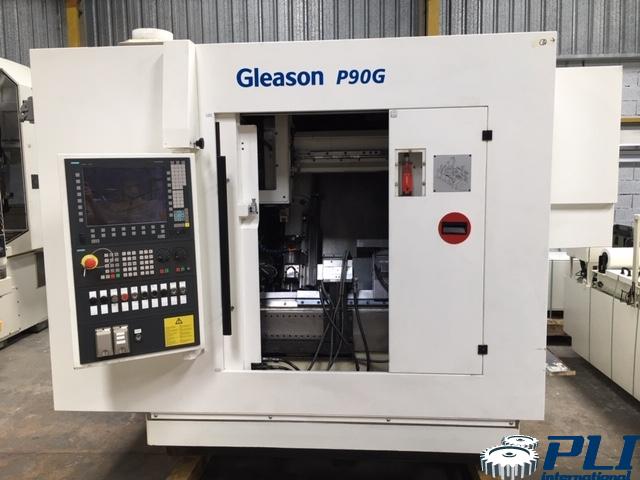

GLEASON-PFAUTER Type P 90 G
New
2014
Spindle hours
17,310 hrs.
Power-on hours
37,810 hrs.
Technical details
:
Max. workpiece dia. 100 mm
Max. modul 3.0 mm
Radial travel 90 mm
Axial travel 400 mm
Tangential travel 160 mm
Grinding length max. 180 mm
Programmable tailstock (Z4-axis) 320 mm
Loader travel (X5-axis) 1738 mm
Distance spindle head – tailstock 140 / 460 mm
Min/Max axis distance 10 – 100 mm
Diameter of grinding wheel 120 mm
Swivel angle of grinding head – 45 / + 115 °
Max. shiftway 160 mm
Grinding spindle drive 14 kW
Spindle turning speed range 50 – 12.000 U/min
Grinding wheel hole 40 mm
Rapid traverse 10/7,5/5,0 m/min
Machine weight 6,0 to
Total power requirement 13 kW
Overall size 5,4 x 3,5 x 3,0 m
CNC SIEMENS 840 D
CBN grinding wheels
Software: Error-diagnosis
Software: X-Z Correction
Software: C-Z Correction
Software: Extension of the remote diagnostic
Software: Extension of the remote diagnostic
Automatic portal loader LP-H
Electric interface with PROFIBUS
Direct measuring system Y-axis
Automatic positioning adjustment
Spindle nose for collars type B 32
Hydraulic chuck clamping
Energy saving tool
Safety back stroke
Sealing air
Fluid sensor – automatic positioning inside tooth by acustic sensor
Power clamping attachment stroke 32 mm
Sprung tailstock quill
Milling cutter cooling attachment
Paper filtration cooling attachment 150 l/min.
Running through cooler; temperature accuracy +/-1° C
Oil mist separator
Oil spinning program
Fireextinguisher
Chip conveyor
