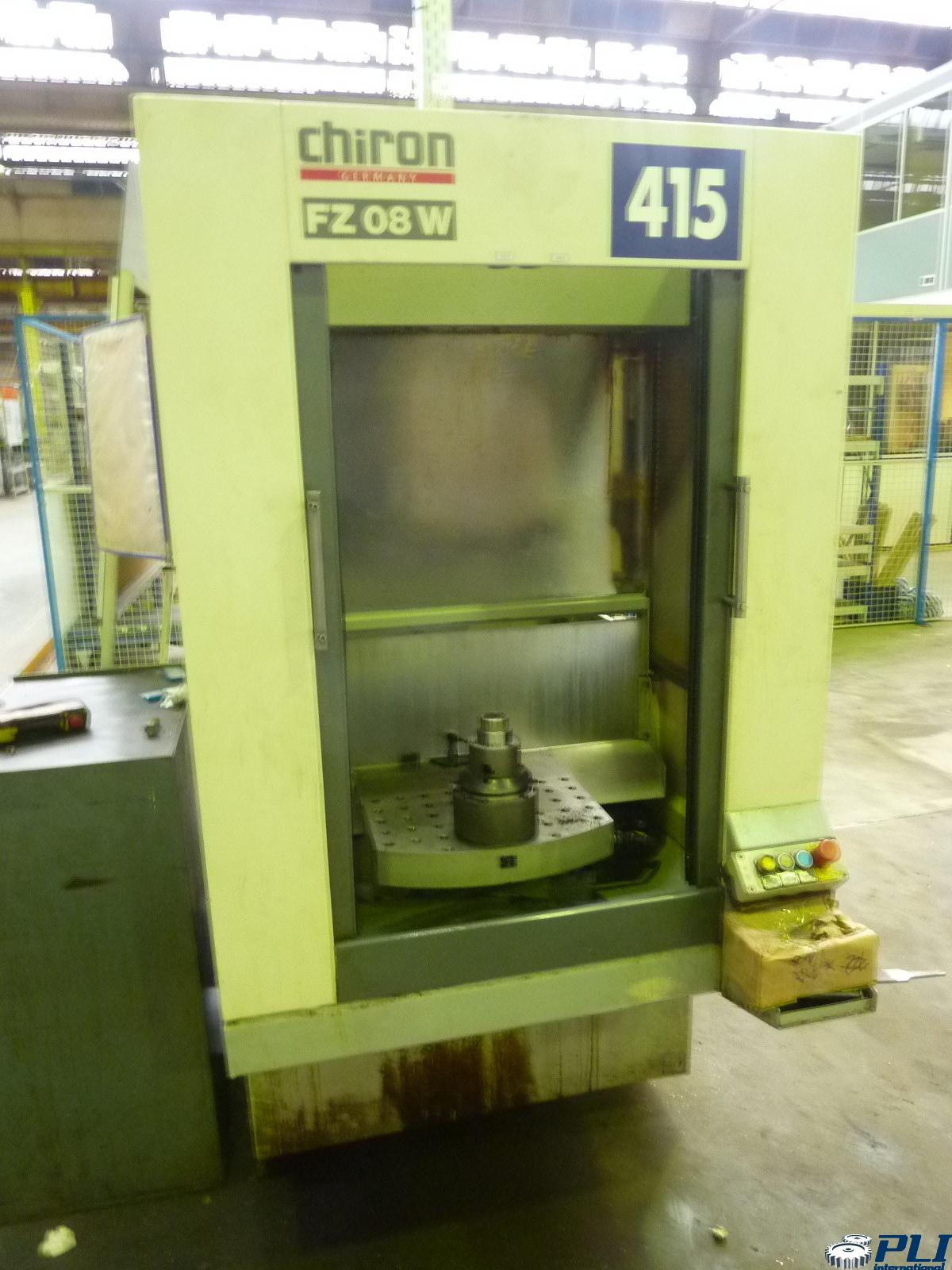

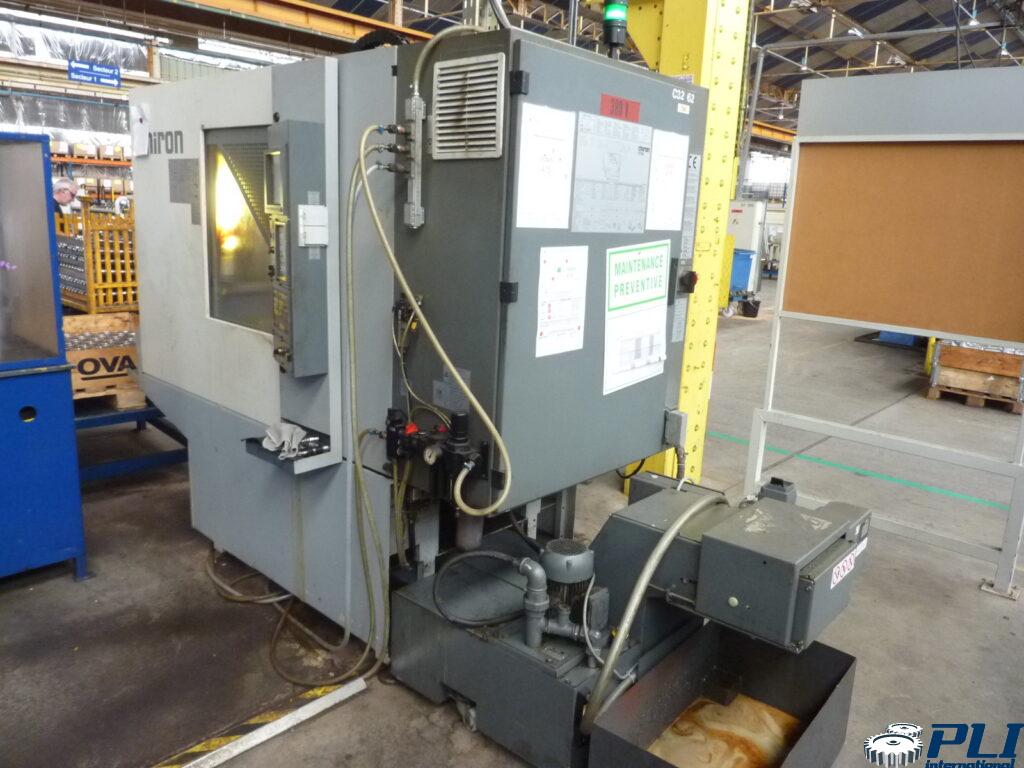

Center CHIRON FZ 08W very good condition.

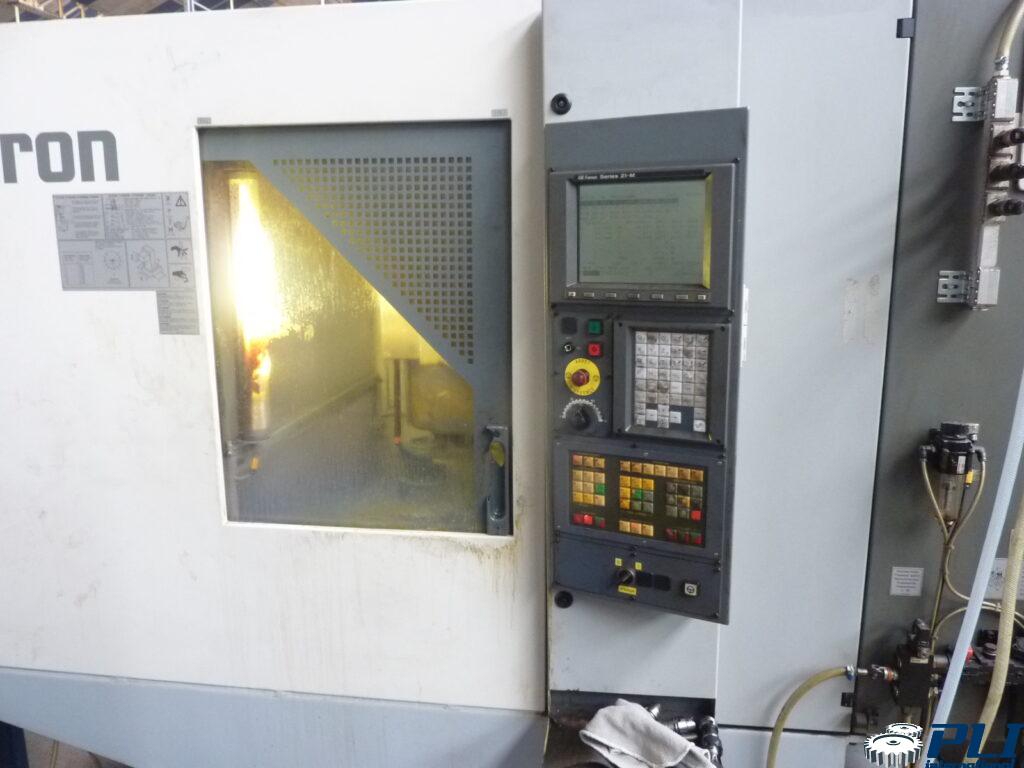

FANUC 21 M
X axis travel: 450 mm
Y axis travel: 270 mm
Z axis travel: 280 mm
Drilling capacity in steel DaN : 16 mm
Milling capacity in steel DaN : 60 cm3/mn
Tapping: M 12
Tool slots: 12
Tool connection DIN 69893: HSK-A32
Maximum tool diameter: 40 mm
Maximum tool length: 160 mm
Speed range: 20 – 10,500 rpm
Spindle to table distance: 170-450 mm
Load capacity on table: 200 Kg
