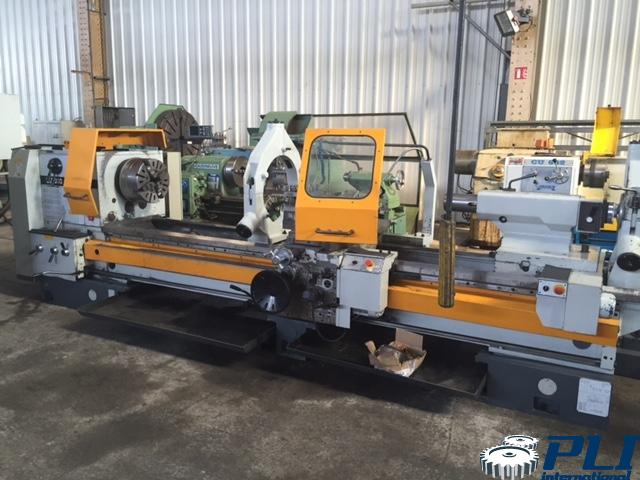

ZMM SLIVEN CU 800 x 3000 from 2008
Distance between spikes 3,000 mm
Spike height 400 mm
Diameter allowed on the bench 890 mm
Permitted diameter above the carriage 490 mm
Passage through the break 1,050 mm
Bench width 700 mm
Load capacity without steady rest 5,000 kg
Permitted load with one steady rest 7,000 kg
Permitted load with 2 spectacles 8,000 kg
Spindle nose No. 15
Spindle passage 152 mm
Spindle cone 160 metric
Spindle speed (24) 6,3 to 1 450 rpm
Spindle motor 22 kW
Power 22,5 kVA
Longitudinal feed 0.032 – 38.9 mm/rev
Cross feed 0.016 – 19.45 mm/rev
Tube diameter 125 mm
Cone of the Morse sheath N° 6
Quill stroke 260 mm
Voltage 690 / 400 V / 50 Hz / 3 ph
Machine weight 7,5 T
Machine dimensions 5,200 x 1,800 x H 1,755 mm
Equipped with
:
4-jaw chuck RÖHM
Removable broken
2 fixed glasses (diameter from 50 to 300 mm and from 270 to 520 mm)
CE standards
