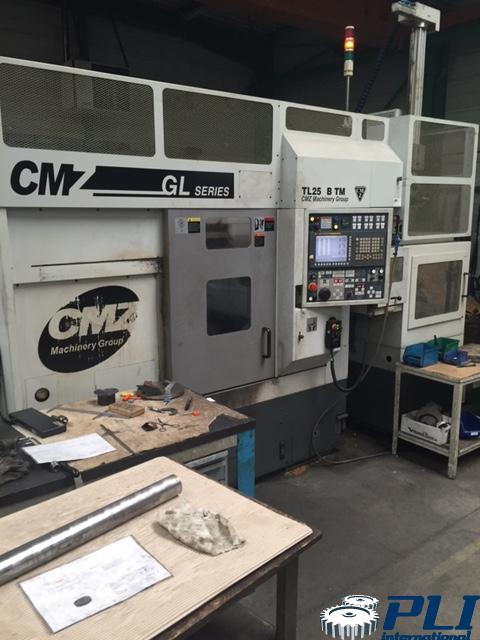

3 axis lathe CMZ TL 25 BTM + GL20 from 2007
TECHNICAL SPECIFICATIONS :
CNC FANUC 32i Control
C-axis on main spindle
Digital counterpoint
Measuring arm
Bar passage 76 mm
Max. diameter 510 mm
Max. diameter machinable 400 mm
Max. length machinable 676 mm
Main spindle speed 3500 rpm
3-jaw chuck 250 mm
Spindle power 25/40 kW
12-position turret
Rotating tools 17 kW motor with 75Nm @ 4000rpm
Weight 5.6 T
EQUIPMENT :
14-vane paddle shifter
Various tool holders
Tool feeler, chip conveyor
