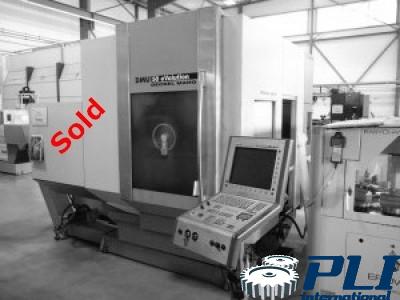

– Number of axes: 5
MILLING SPINDLE
– Tool type: ISO40
– Spindle power: 25 [kW]
– Spindle speed: 18,000 [tr/min]
LINE AXES
– X/Y/Z axis travel: 500 / 450 / 400 [mm]
– Rapid feed speeds (X/Y/Z): 80 / 50 / 50 [m/min]
ROTARY AXIS A
– Stroke: 360 [°] (+/-)
– Indexing accuracy: 0.001 [°]
ROTARY AXIS B
– Stroke: 0 – 161.955 [°] (+/-)
– Indexing accuracy: 0.001 [°]
TOOL CHANGER
– Type of tool changer: Loader arm
– Tool magazine capacity: 64
TABLE
– Table size : 500 X 380 [mm]
– Weight capacity on table: 200 [kg]
– Distance table / spindle nose (min/max) : 560 [mm]
POWER SUPPLY
– Supply voltage: 400 [V]
– Installed capacity: 43 [kVA]
DIMENSIONS
– Floor dimensions : 3100 X 2732 [mm]
– Machine height: 2550 [mm]
– Machine weight: 6800 [kg]
MACHINE HOURS
– Hours worked: 29,253 [h]
Equipment
– CNC : Heidenhain iTNC530
– Remote electronic handwheel
– Direct measurement rules
– Irrigation tank: 900 [l]
* with high pressure pump
– Spindle center watering
– Chip conveyor: Left
– Spindle cooling
– Loading robot: EROWA Easy Changei (10 pallets ITS 148)
– Tool holder : 30
– EROWA ITS 148 pallets : 10
– Electrical transformer: 400 / 400 [V]
