– Number of axes: 5
MILLING SPINDLE
– Tool type: SK 40
– Spindle power: 12 [kW]
– Spindle speed: 12,000 [tr/min]
LINE AXES
– X/Y/Z axis travel: 510 x 510 x 460 [mm]
ROTARY AXIS A
– Stroke: +30 / -120 [°]
– Indexing accuracy: 0.001 [°]
ROTARY AXIS B
– Course: 360.
– Indexing accuracy: 0.001 [°]
TOOL CHANGER
– Type of tool changer: Loader arm
– Tool magazine capacity: 40

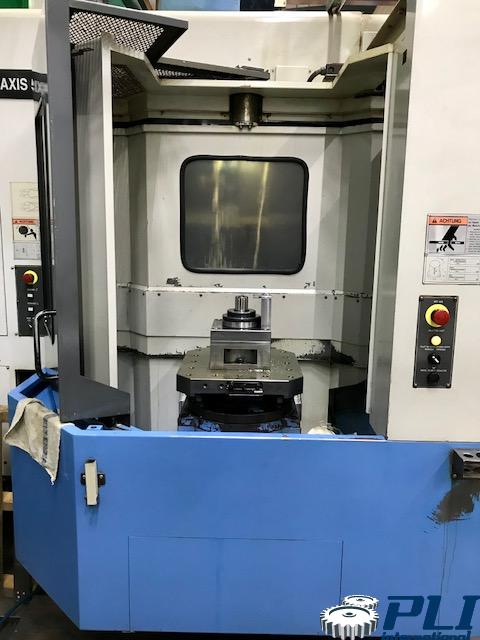

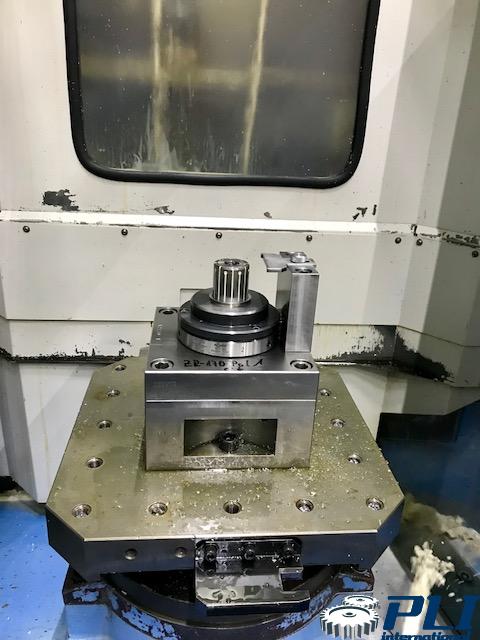

TABLE
– Table size : 400 x 400 [mm]
– Weight capacity on table: 300 [kg]
– Maximum machinable diameter: 500 [mm]
– Maximum machinable height: 405 [mm]
PALLET CHANGER
– Pallet size : 400 X 400 [mm]
– Number of pallets : 2
POWER SUPPLY
– Supply voltage: 400 [V]
– Installed capacity: 50 [kVA]
DIMENSIONS
– Machine weight : 11500 [kg]
MACHINE HOURS
– Hours worked: 32763 [h]

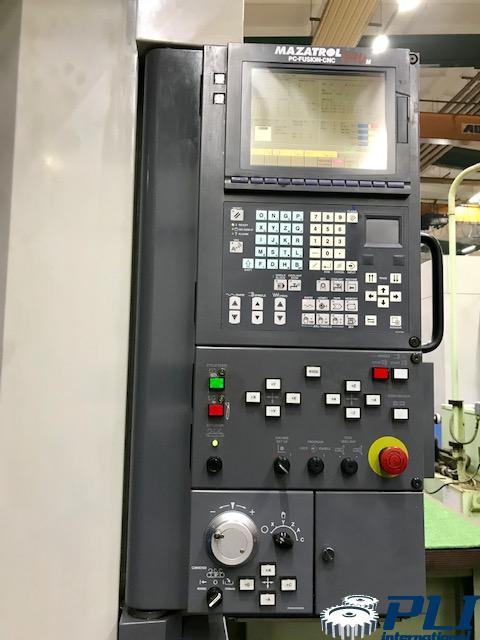

– CNC : Mazatrol PC-Fusion 640
– Conversational
– Ports: RS232/RJ45/PCMCIA
– Rigid tapping
– Sprinkler tray
* with high pressure pump: 15 [bars]
– Spindle center watering
– Spindle cooling
– Chip conveyor : MAYFRAN
– Tool Probe
