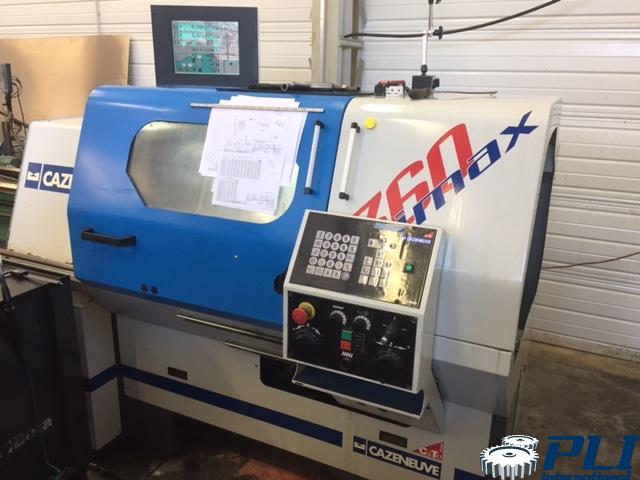

Used lathe by learning Cazeneuve Optimax 360 from 2006
Tip height: 207 mm
Ø allowed above the bench: 430 mm
Ø allowed above the cross slide: 178 mm
Ø allowed above the arms of the carriage: 300 mm
Distance between warehouses: 700 mm
Bench width: 330 mm
Doll :
ISO A1 6″ spindle nose
Spindle bore Ø: 54 mm
Spindle taper CM 6
Capacity:
Cross slide travel X: 180 mm
Length of continuous carriage Z: 610 mm
Fast axis movement: 6 m/mn
Tailstock :
Standard tailstock travel 140 mm (capstan option on this lathe)
Conicity of the sleeve CM 4
Ø of the sleeve: 60 mm
Technical specifications
Spindle speed (continuously variable): 70 to 3000 rpm
Spindle motor power: 14 kW
Installed electrical power: 27 kVA
Power supply: 400 volts
Weight : 2100Kg
Dimensions (L x W x H): 1950 x 1320 x 1770 mm
