Year: 2007

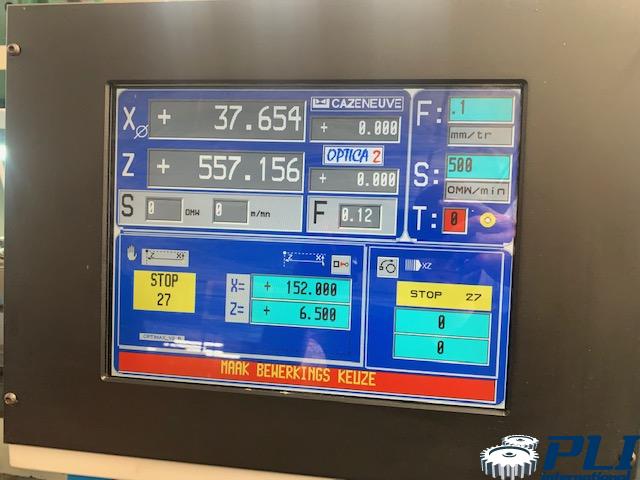

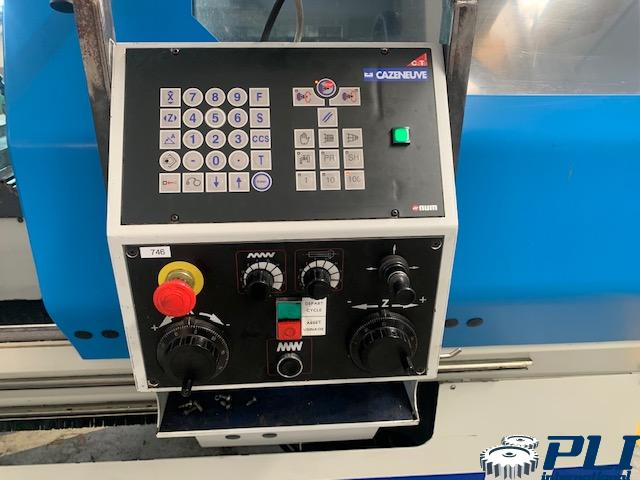

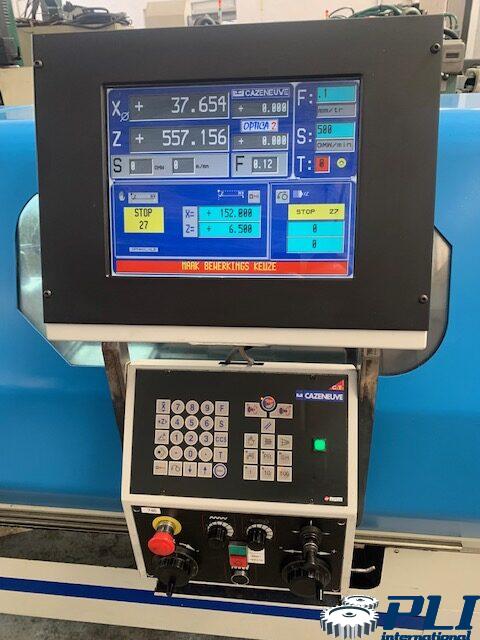

CN: NUM
Distance between spikes 1800 mm
Ø allowed above the bench 583 mm
Ø allowed above the slide 300 mm

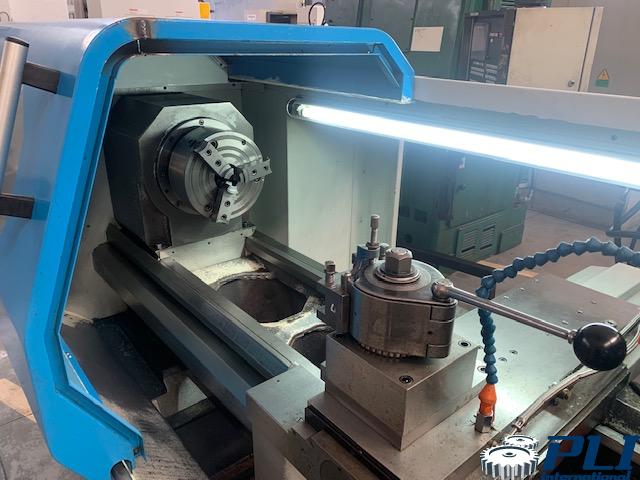

Spindle
Spindle passage Ø 82 mm
Motor power 12 kW (S1) – 22 kW (S6)
Spindle speed 2500 rpm
Spindle nose type ISO A1 8″

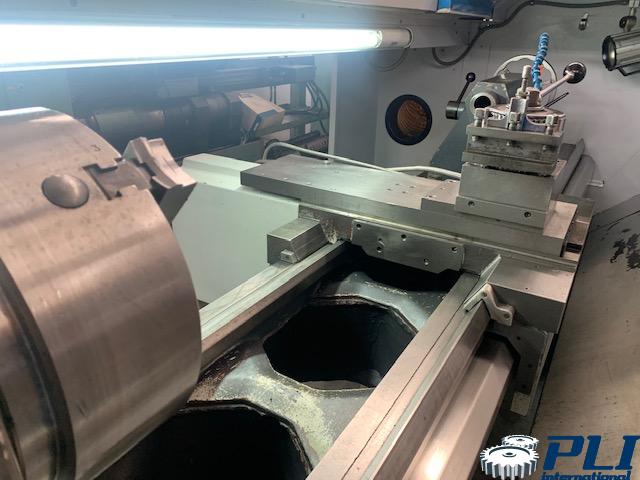

Trolley
Cross slide travel (X) 282 mm
Maximum carriage length (Z) 1710 mm

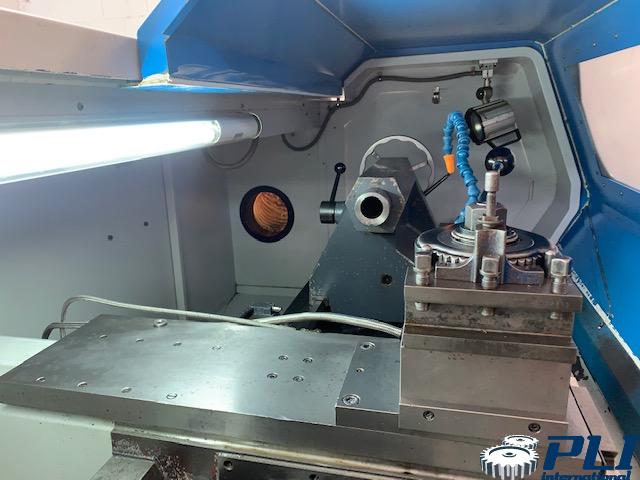

Counterpoint
Taper of the sleeve Morse taper 6
Tube Ø / Stroke Ø 100 / 295 mm
Space requirement
Length 3620 mm
Depth 1700 mm
Height 1830 mm
