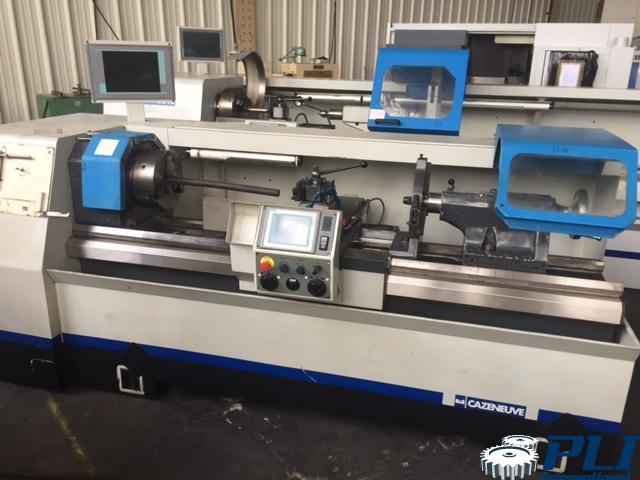

Lathe with Siemens Optica 590 X 1800 assistance from 2009
Max. diameter above the bench: 583 mm
Max. diameter above the carriage: 300 mm
Distance between centres: 1800 mm
Max. diameter in spindle: 82 mm
Spindle speed: 2500 rpm.
Spindle type : A1-8 ”.
Stroke: 255 x 1710 mm
Tailstock type : CM 6
Stroke of the fork : 295 mm
Sheath diameter: 100 mm
Dimensions: 3620 x 1400 x 1830 mm
Equipment
3-jaw quick change chuck
Parat Turret
Lubrication tank with pump
Fixed bezel
