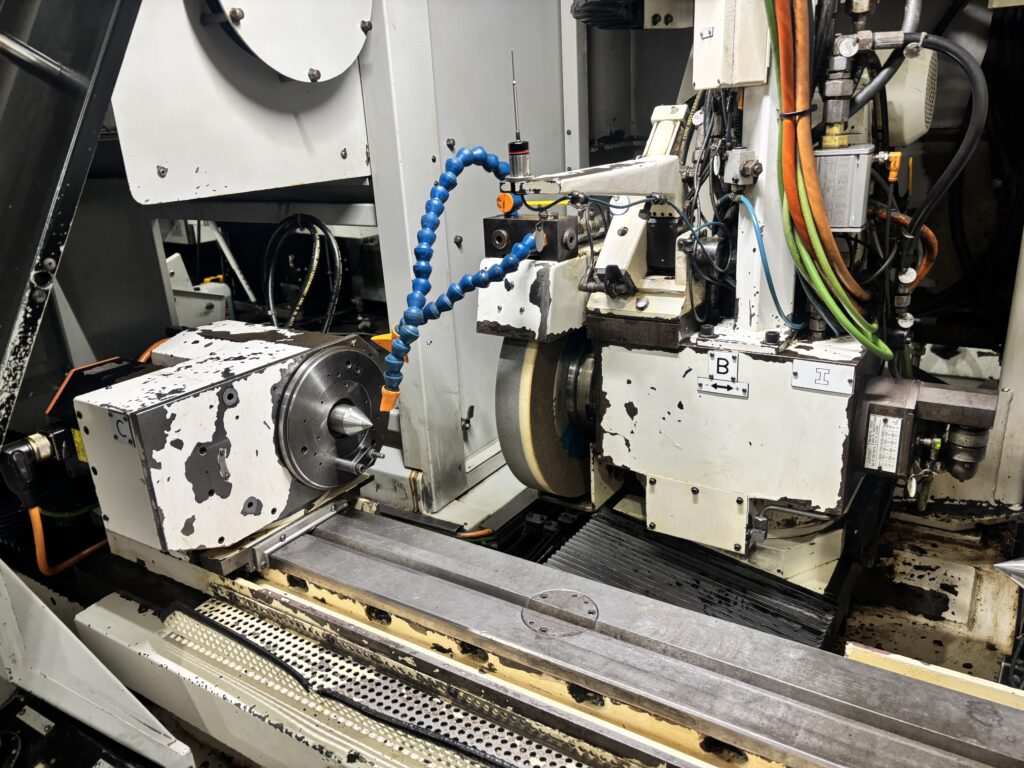

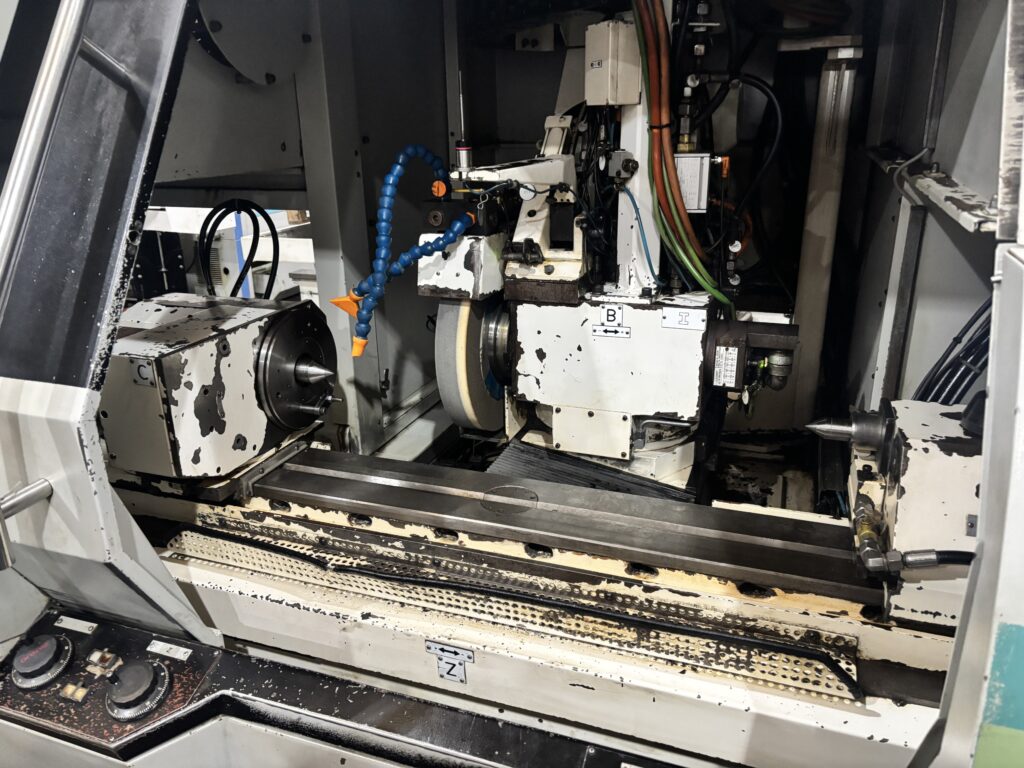

CNC Cylindrical grinder – JUNKER GRINDOR Allround

Grinding machines

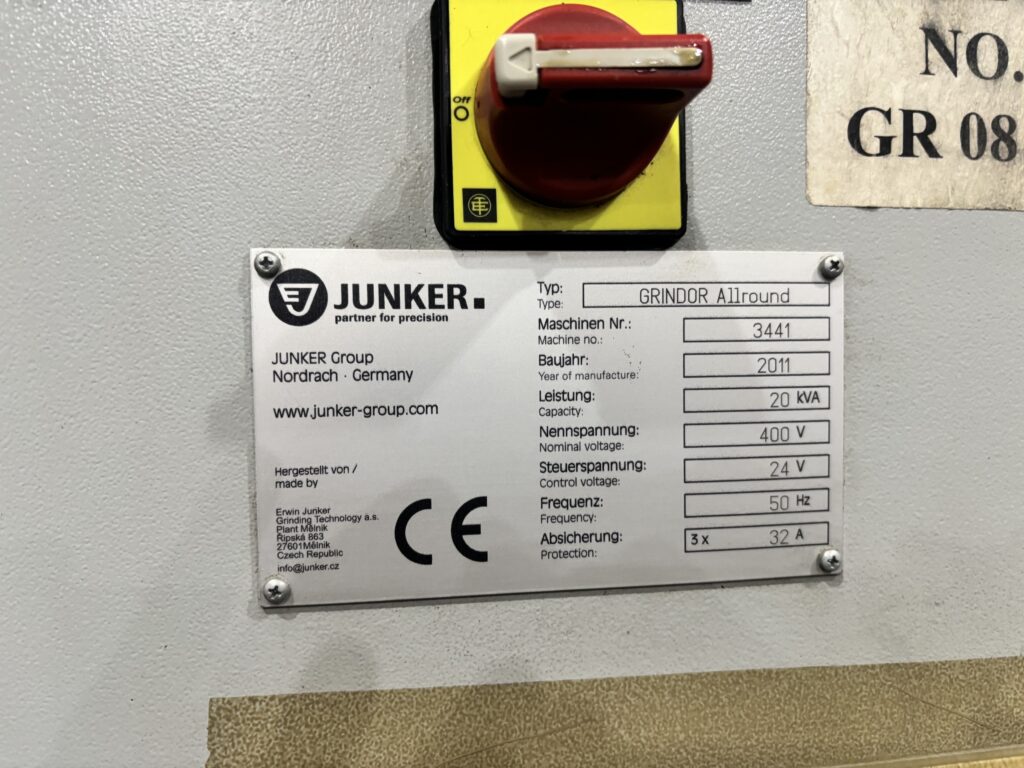

Brand : junker
Model : grindor aLLROUND
Year : 2011
Serial number : 3441

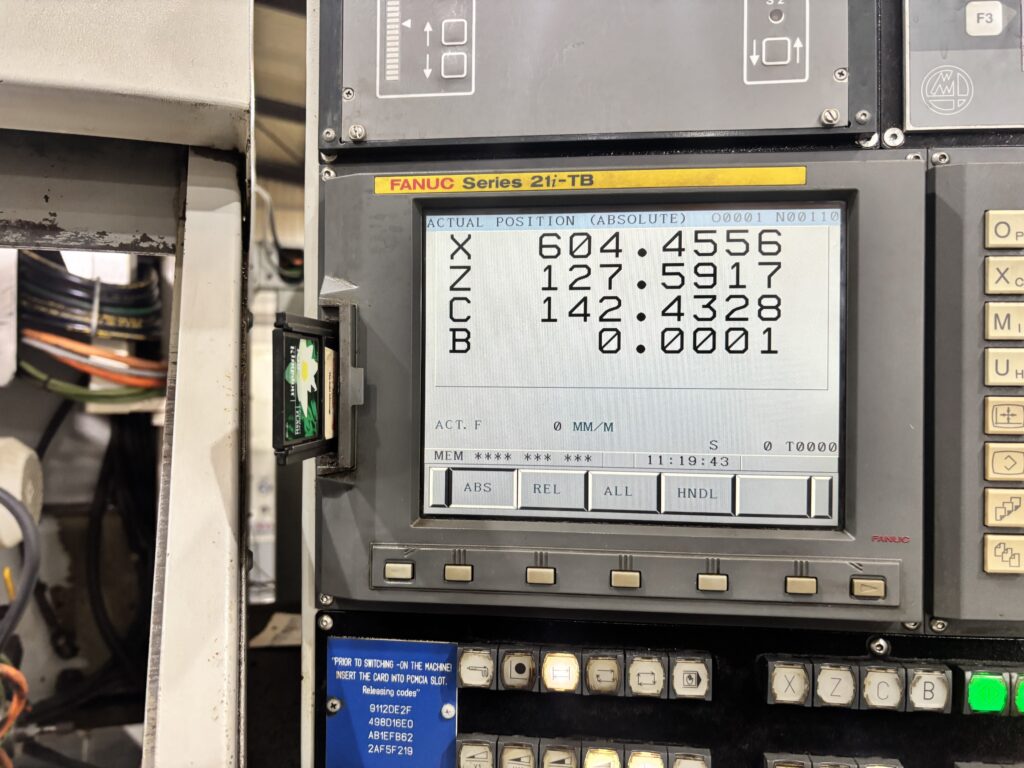

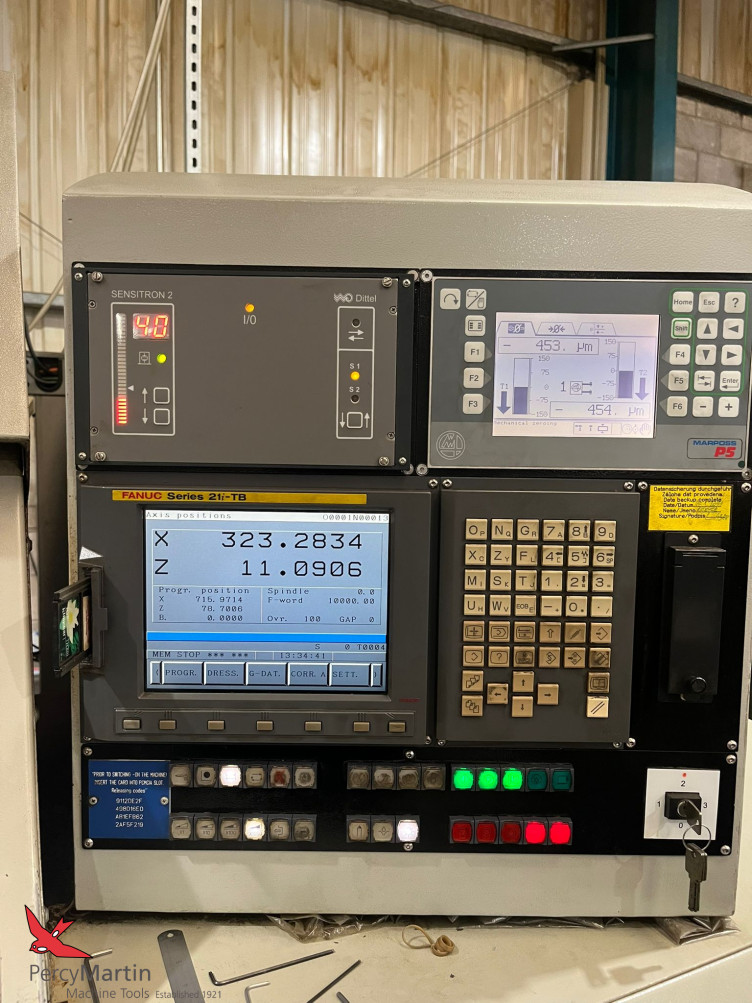

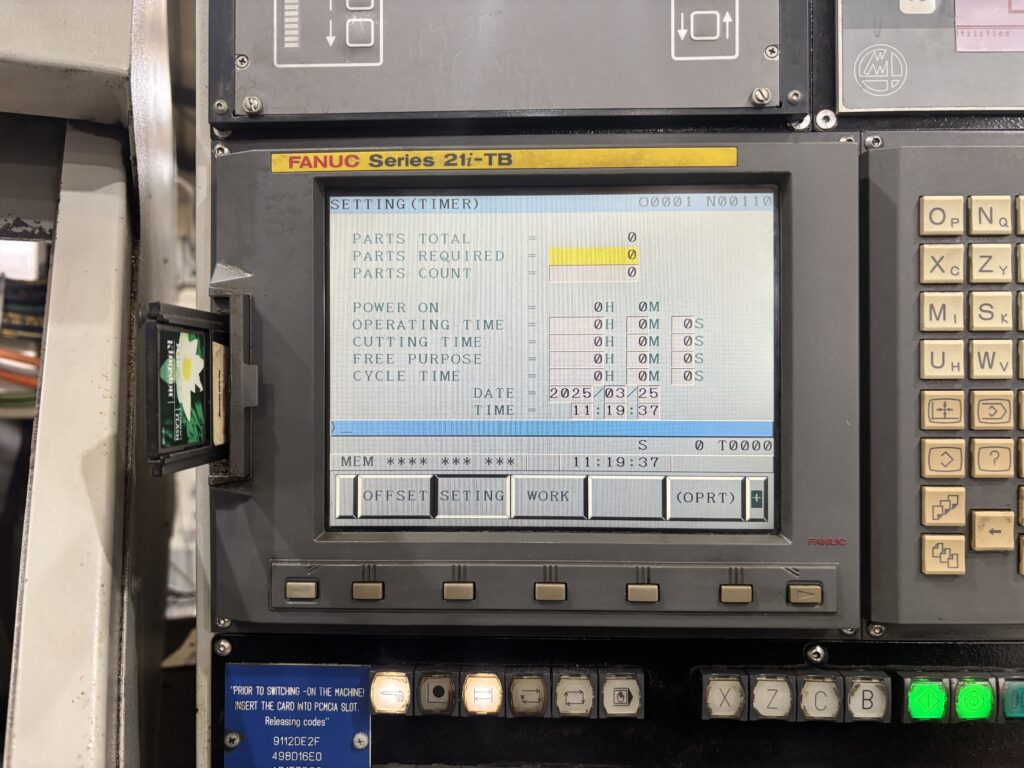

CNC : FANUC 21i-TB
Grinding Wheel Size (Dia x Width x Bore) : 290 x 63mm
Internal Spindle Motor : 1.5kW
Internal Spindle Speed : 25000/42000/55000rpm
Maximum Grinding Length : 800mm
Maximum Grinding diameter : 290mm
Maximum workpiece weight : 80kg
Spindle Motor Power : 5kW
Table Swivel Angle : +6° / -3,5°
Tailstock Quill Stroke : 30mm
Tailstock Taper : MT #4
Workhead Dead Spindle Taper : MT #5
Workhead Speed : 1000rpm
Workhead Swivel Angle : 0 ~ 90 degrees
X axis Travel : 350mm
Z axis Travel : 1000mm
Machine Weight : 5000kg
Coolant :
Interlocked guards :

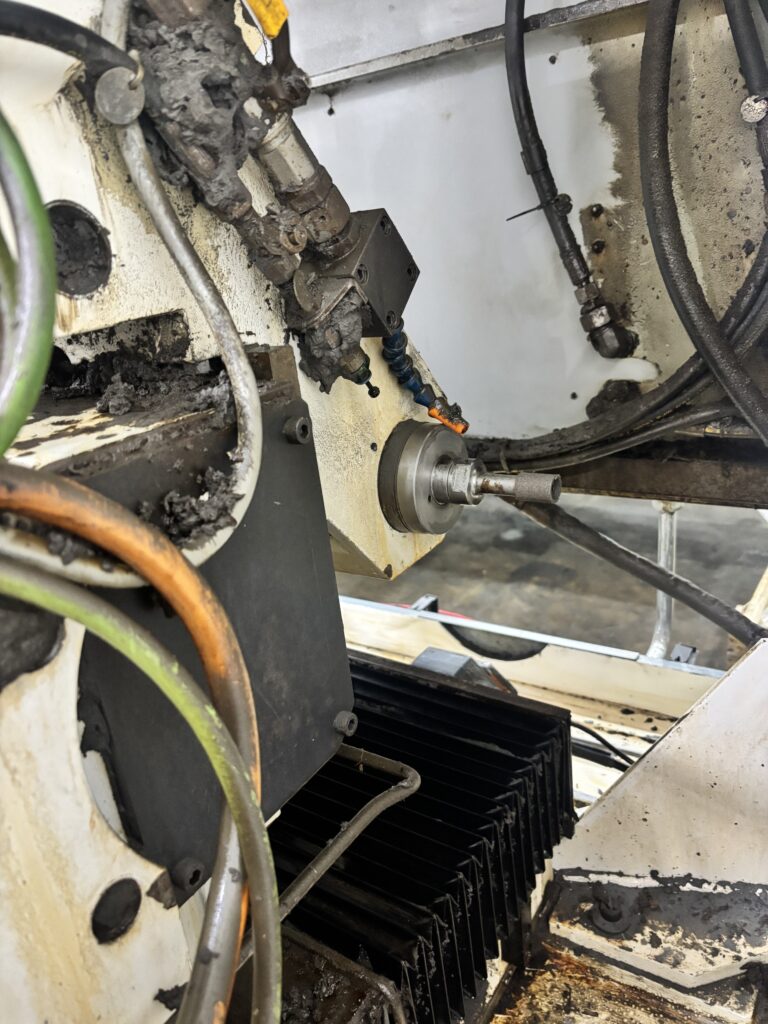

Internal Spindle :
Low Volt Light :
Swivelling Universal Head :

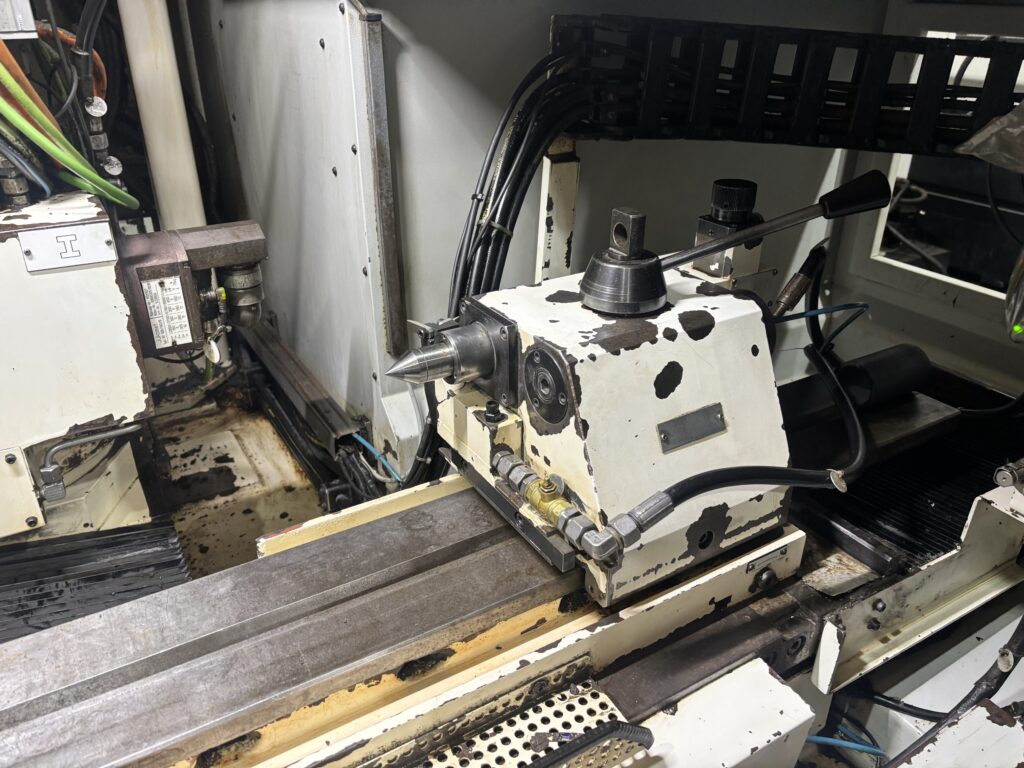

Tailstock :

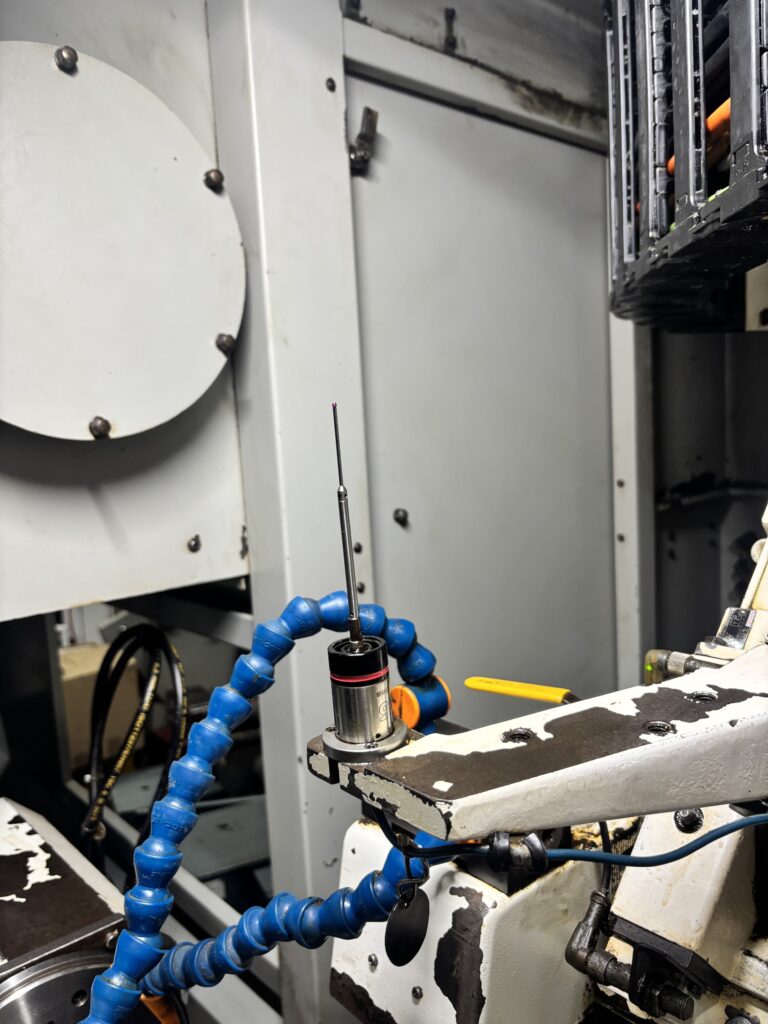

Marposs Gauging System :
