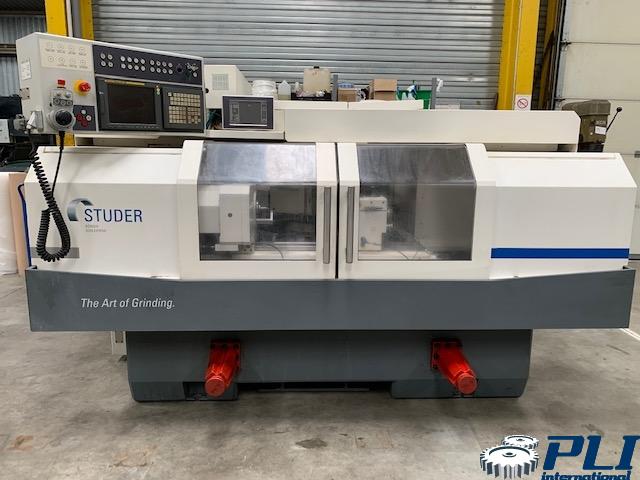

– distance between points: 650 [mm]
– peak height: 175 [mm]
– strokes (X/Z) : 285 / 800 [mm]
– table orientation: 0 – 8.5 [°]
PULLEY WHEEL HOLDER
– dimensions of grinding wheels: 500 x 63 x 203.2 [mm]
– peripheral speed: 50 [m/sec]
– power : 7,5 [kW]
– B axis indexing accuracy (manual): 1 [°]
PIECE HOLDER DOLL
– cone: CM5
– speeds : 1 – 1500 [tr/min]
– power: 1.6 [kW]
– bore: 30 [mm]
– C axis indexing accuracy: +/- 0.5 [°]
COUNTERPOINTS
– cone: CM3
– diameter of the sleeve: 50 [mm]
– sleeve stroke: 35 [mm]
POWER SUPPLY
– voltage: 400 [V]
– frequency: 50 [Hz]
DIMENSIONS
– floor area : 2850 x 2200 [mm]
– height : 1800 [mm]
– machine weight: 5,300 [kg]
HOURS
– hours under power: 6,870 [h]
Equipment
– CNC control FANUC 21i-TB
– remote electronic handwheel
– programmable constant cutting speed
– direct measurement rules
– tailstock with fine concentricity adjustment
– hydraulic recoil of the tailstock sleeve
– automatic workpiece length sensing device
– contact detection SENSITRON 2
– fixed dressage on tailstock
– lubrication tank: 375 [l]
* with paper filtration: STREULI SPB4
– 14 wheel flanges
– 7 grinding wheels
– balancing shaft
– hub puller
