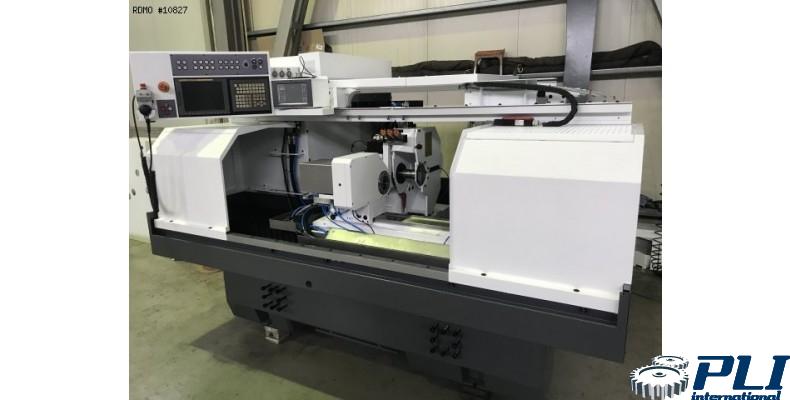

Distance between points: 650 [mm]
Tip height: 175 [mm]
Strokes (X/Z): 285 / 800 [mm]
Table orientation: 0 – 8.5 [°]
PULLEY WHEEL HOLDER
Grinding wheel dimensions: 500 x 63 x 203.2 [mm]
Programmable peripheral speed: 0 – 50 [m/sec]
Power: 7.5 [kW]
Manual orientation on stops: 0 and 30 [°]
PIECE HOLDER DOLL
Cone: CM5
Speeds: 1 – 1500 [tr/min]
Power: 1.6 [kW]
Bore: 30 [mm]
C axis indexing accuracy: +/- 0.5 [°]
COUNTERPOINTS
Cone: CM3
Diameter of the sleeve: 50 [mm]
Stroke of the sleeve : 35 [mm]
POWER SUPPLY
Voltage: 400 [V]
Frequency: 50 [Hz]
Machine weight: 5,300 [kg]
Cutting hours: 7,234 [h]
Equipment
FANUC 21i-TB CNC control
Option Studer Release D with pictogramming
Option Program check with handwheel
Extensive training functions
Remote electronic handwheel
Programmable constant cutting speed
Direct X and Z measurement rules
MOVOMATIC C25 measuring arm for automatic length positioning
Tailstock with fine concentricity adjustment
Hydraulic tailstock retraction with foot pedal
Supporting bezel Ø : 4 – 88 [mm]
Contact detection SENSITRON 2
Fixed dressage on tailstock
Lubrication tank: 375 [l]
* with paper filtration STREULI SAM5/SPB4
ERNI dust extraction
1 wheel flange
1 grinding wheel
2 tips
