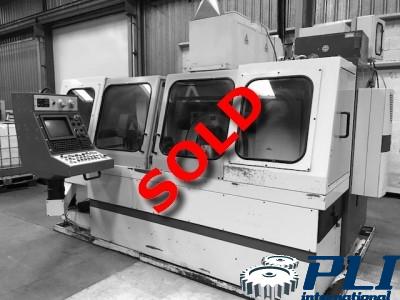

CNC gear grinding machine SAMPUTENSILI RI 370
Minimum modulus: 0.8
Maximum module: 12
Maximum permissible workpiece diameter: 370 mm
Distance between centres: 1020 mm
Ceramic reprofiling wheels or electroplated CBN wheels
This machine is universal, equipped with an automatic faser, allows to grind:
– spur and helical gears
– splined shafts (max length = 1020 mm)
– the worms
