Technical specifications:
Year 2007
CNC siemens 840D
Maximum diameter of the part in automatic loading: 250 mm
Maximum diameter of the workpiece in manual loading: 380 mm
Max. grinding module with master wheel : 0.7 to 5
Max. grinding module in form grinding wheel: 8
Maximum length of the part: 550 mm
Workpiece/spindle centre distance: 40/ 300 mm
Head tilt: +/- 45
Diameter of grinding wheel: 140 – 220 mm
Grinding wheel spindle speed: 0 – 20,000 rpm
Linear axis resolution: 0.0001 mm
Resolution of grinding wheel and workpiece spindle: 0.0001 °.
Accessories :
CNC automatic indexing unit
Dressing spindle on a grinding wheel
Oil vacuum cleaner
Filtration – refrigeration knoll
Automatic loading with conveyor

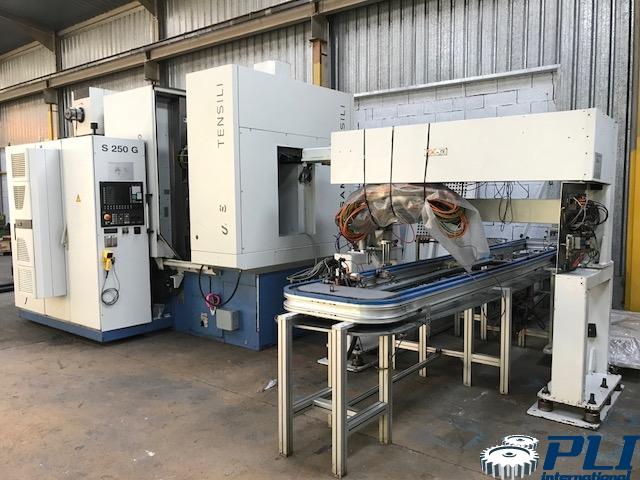

The machine is designed to grind straight and helical gears
– With ceramic grinding wheels or electroplated CBN wheels
– With ceramic grinding wheel or electroplated CBN
– Combined cycle with the 2 tools
