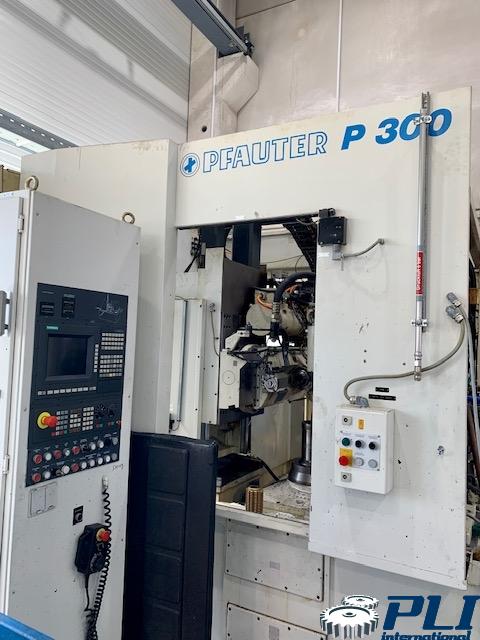

TECHNICAL DESCRIPTION:
Linear axes:
– Radial slide (X-axis)
– Tangential slide (Y-axis)
– Axial slide (Z-axis)
Rotary axes:
– Milling head (A-axis)
– Workpiece table (C-axis)
– Swivel gripper for automatic workpiece change (E-axis)
Spindle:
– Milling cutter (S-Spindle)
TECHNICAL DATA:
– Control: SIEMENS SINUMERIK 840C
Gear hob:
– Largest permissible tip diameter: 130 mm
– Greatest length (depending on milling arbor diameter): 220 mm
MACHINE
Milling arbors:
– Diameter: 40 mm
– Acquisition cone: Steep cone ISO 40
Sledding trails:
– Radial (X-axis): 185 mm
– Tangential (Y-axis): 200 mm
– Axial (Z-axis): 250 mm
Largest milling head swivel angle:
– Direction +A: 35°.
– Direction -A: 45
Workpiece table:
– Outer diameter: 300 mm
– Boron: 80 mm
Speeds
Feeds:
– X-axis: 1 – 10.000 mm/min
– Y and Z axis: 1 – 5.000 mm/min
Rapid traverse:
– X-axis: 10.000 mm/min
– Y and Z axis: 5.000 mm/min
Drehzahlen:
– Tool: 125 – 1,250 rpm
– Workpiece table: 1 – 55 rpm
Electrical equipment:
– Operating voltage: 400 V
– Supply voltage: 230 V
– Control voltage: 24 V
– Frequency: 50 Hz
– Connected load of the machine: 48 kVA
– Cable cross section: 25 mm2
– Protection: 100 A
Overall dimensions of the machine:
– Length/Width/Height: 4.930 x 6.730 x 3.200 mm
– Machine weight approx: 9,5 tons
EQUIPMENT:
– Chip conveyor
– Electronic handwheel
– Lubrication and hydraulic unit
– Full coverage of the workspace
– Documentation
– CE marking
