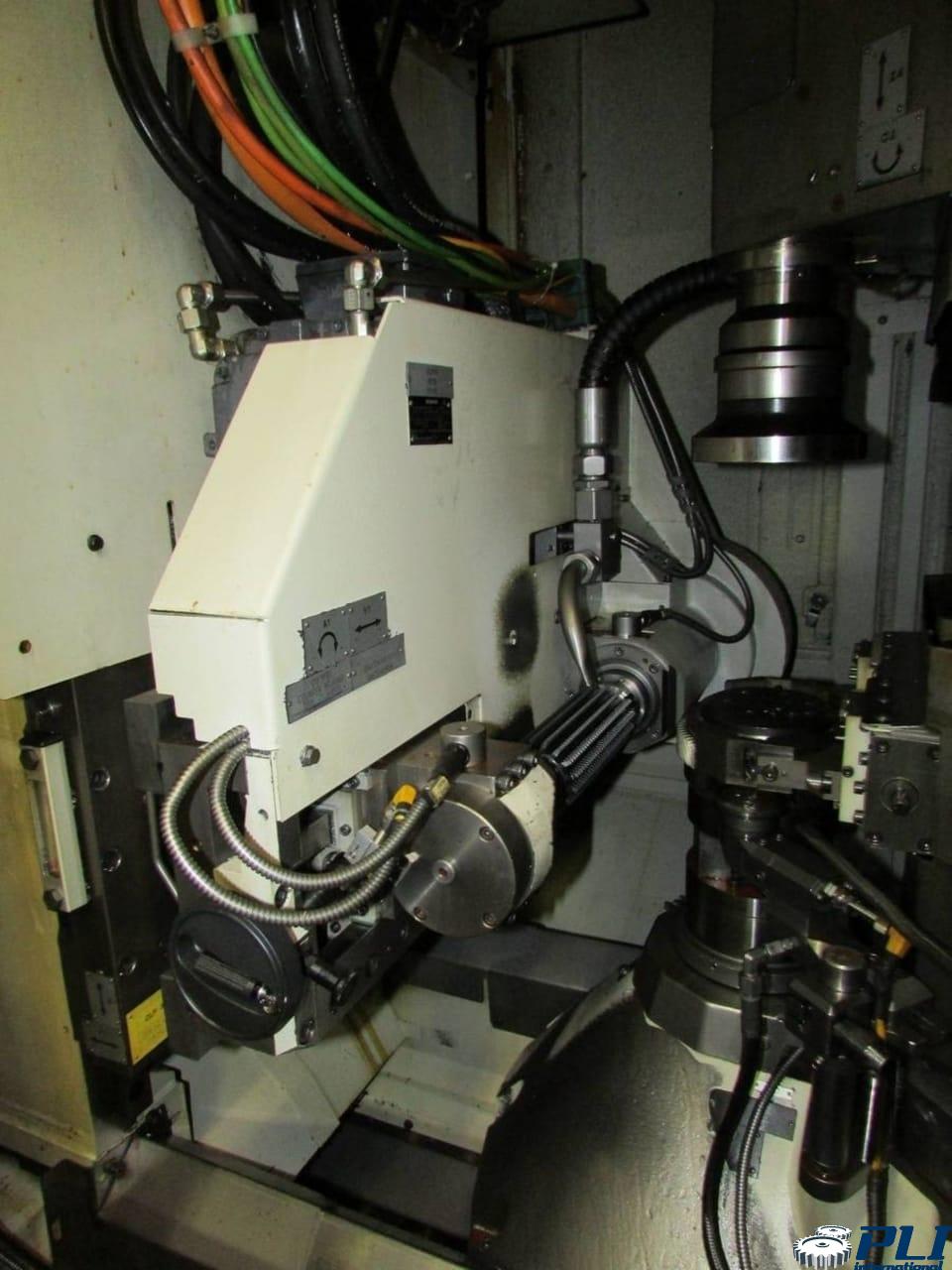

LIEBHERR LC180
YOM 2007
Machine specs are as follows
Max. DIAMETER GEAR…………………………………………….180mm
MIN. CENTER DISTANCE……………………………………………10mm
MAX. CENTER DISTANCE…………………………………………..200mm
MAX. RADIAL SPEED………………………………………..5000 mm/min
TABLE MACHINE:
MAX SPEED ………………………………………………..800 1/MIN
FLAT TABLE DIAM………………………………………………145mm
BORE TABLE DIAM………………………………………………..80mm
AXIAL TRAVEL:
MAX SWIVELING ANGLE ………………………………………+/- 45 DEG
MAX SWIVELING SPEED……………………………………….18 DEG/SEC
DRIVE CAPACITY:
MAX SPEED ……………………………………………….6000 1/MIN
MAX MODULE GEAR HOBBING………………………………………….3mm
MAX. MODULE PROFILE MILLING………………………………………5mm
MAX TANGENTAIL TRAVEL………………………………………….180mm
MAX TANGENTAIL SPEED………………………………………7500mm/min
MAX TOOL DIA…………………………………………………..90mm
MAX TOOL LENGTH BORE TYPE………………………………………211mm
MAX TOOL LENGTH SHAFT TYPE……………………………………..328mm
AXIS TRAVEL…………………………………………………..300mm
MAX STEADY COLUMN SPEED………………………………….30000 mm/min
MAX CLAMPING FORCE……………………………………………..kn
MAX WORK PIECE WEIGHT……………………………….15kg FORM LOCKING
MAX WORK PIECE WEIGHT……………………………….4kg FORCE LOCKING
MAX WORK PIECE LENGTH………………………………………….205mm
MAX OPERATING PRESSURE………………………………………..70 bar
MACHINE WEIGHT……………………………………………..11500 kg
Machine is equipped with :
Siemens 840D cnc controls
hob arbor
Chamfering station
Hydraulic table clamping
Mayfran chip conveyors
full guarding and safety sensors
misc tooling on machine
Books and manuals
