CNC Gear Shaping Machine – LIEBHERR LFS380

Gear shaping machines
Brand : LIEBHERR
Model : LFS380
Year : 2008

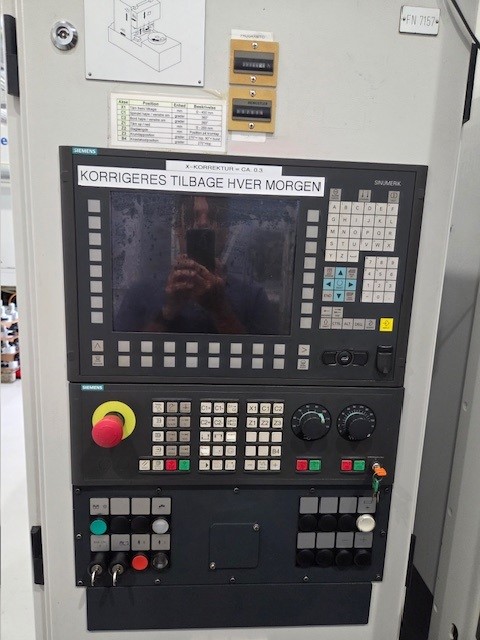

CNC : Siemens 840D
Max gear diameter : 380 mm
Max workpiece diameter : 400 / 600 mm (outside / inside)
Center distance between gear head and table center : - 50 / 450 mm
Z axis : 250 mm
Maxi modul : 6 mm
Maxi axial travel : 250 mm
Table diameter : 400 mm
Table hole : 150 mm
Drive power of face milling head : 37 kW
Face milling head axis angle adjustment : +/- 0,5 °
Stroke length, automatically adjustable : 0 - 215 mm
Duo cams for external and internal gear cutting : Manual switch to change
Magnetic chip conveyor :
