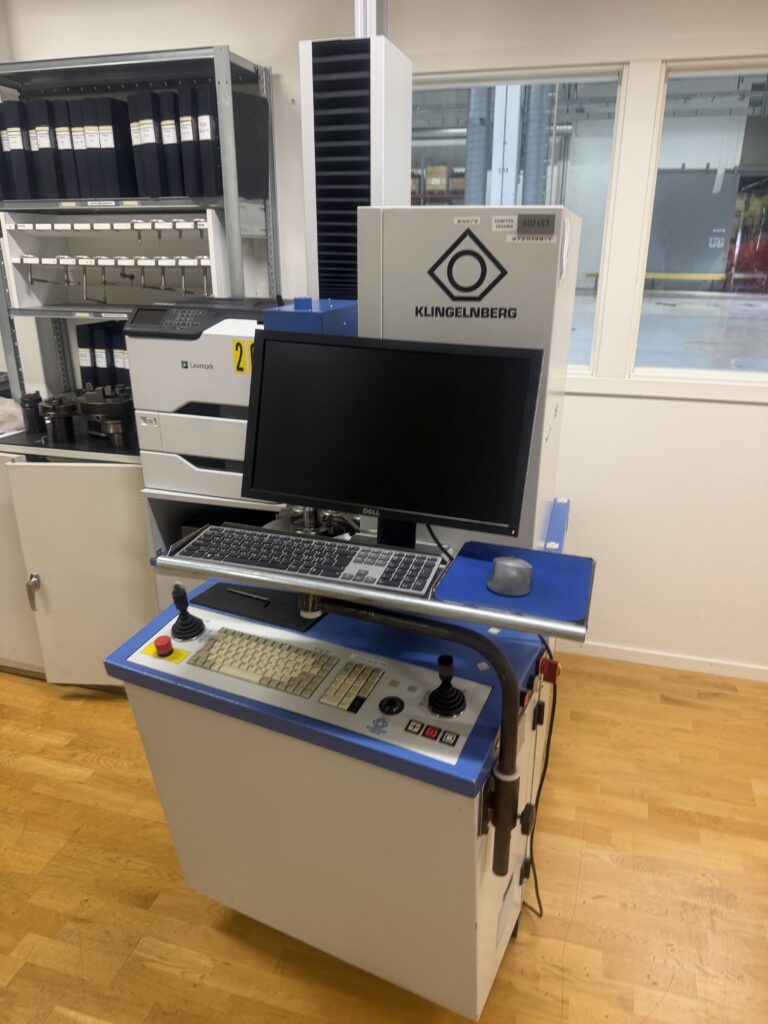

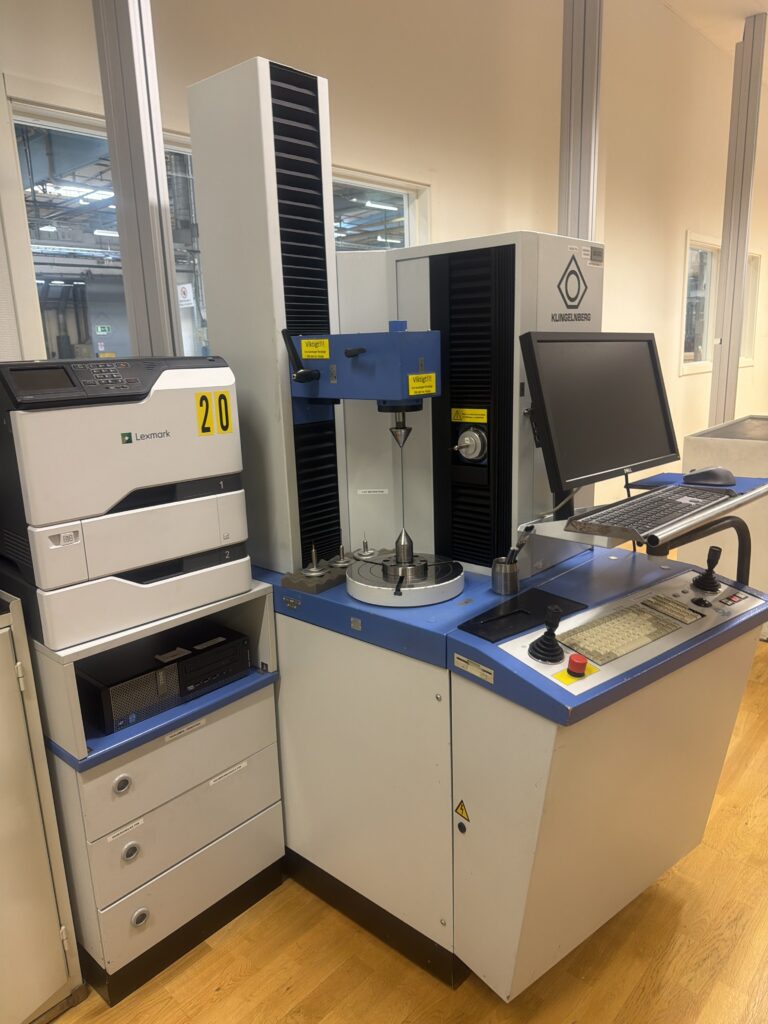

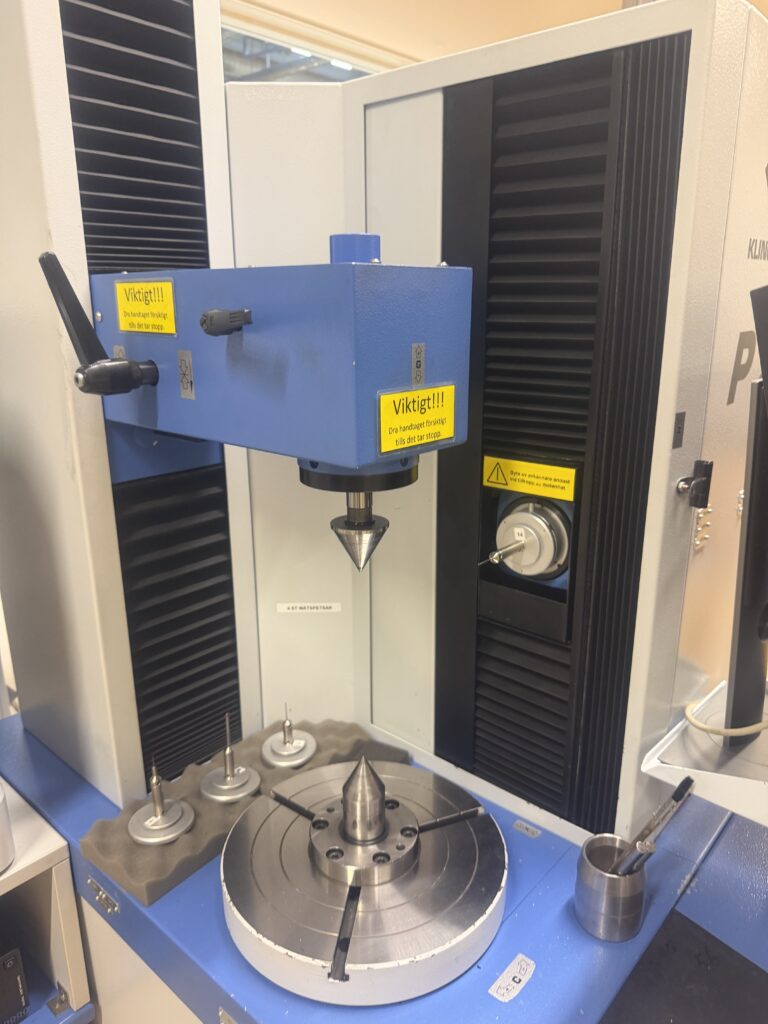

CNC Gear Tester – KLINGELNBERG P26

Gear tester
Brand : KLINGELNBERG
Model : P26
Year : 2001

Module (min. – max.) : 0.30 – 16 mm
Horizontal measuring range (X axis) : ±75 mm
Clamping/testing diameter of cylindrical gears between centers (max.) : 260 mm
Permissible moment of inertia (max.) : 1 kgm²
Permissible workpiece weight, approx. (max.) : 80 kg
Vertical measuring range (Z axis) : 400 mm
Distance between centers (min.– max.) : 50 – 600 mm
