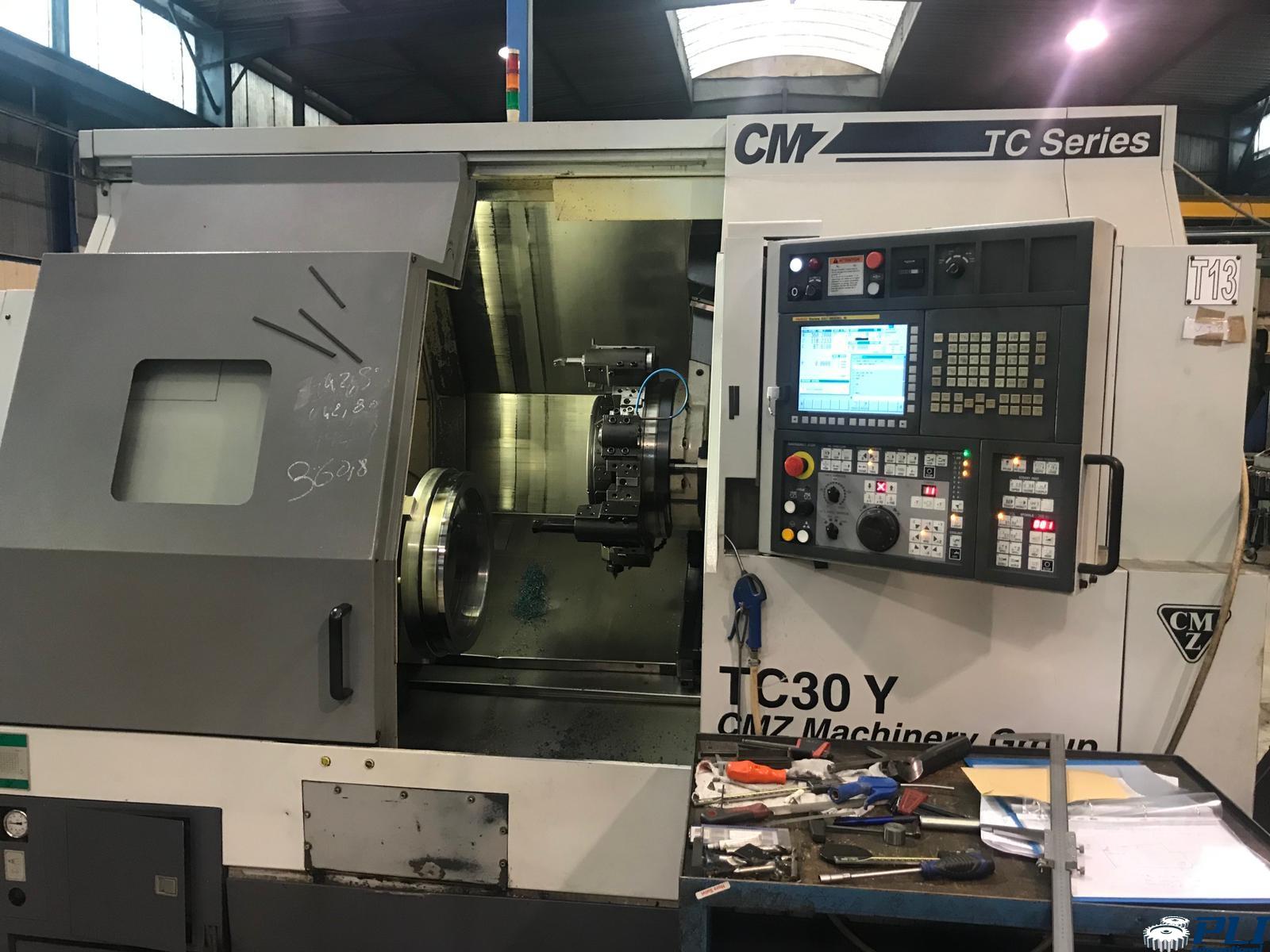

4-axis lathe CMZ TC 30 Y 800
CN: Fanuc 32iTB
Year: 2013
Spindle:
Spindle nose type A2 8” ISO
Spindle bore 77 mm
Spindle speed 3 500 rpm
Spindle motor :
Maximum power 42 Kw. 1020 Nm
Turret:
Chair type 16 positions
Turning tool cross section 25 x 25 mm
Rotating tool power. 16 Kw 75 Nm -4 000 rpm
Counterpoint :
Sleeve travel 120 mm
Cone of the CM5 sleeve
Footprint :
Length 4012 mm with conveyor belt
Width 2020 mm
Height 2236 mm
Weight 7T5
Equipment:
Autoblock 3-jaw chuck
Set of fixed and rotating tool holders
Conveyor
Tool probe
Sprinkler pump
Documentation
Number of hours under power 17632
Number of operating hours 5090
Technical description without guarantee, only for information purposes
