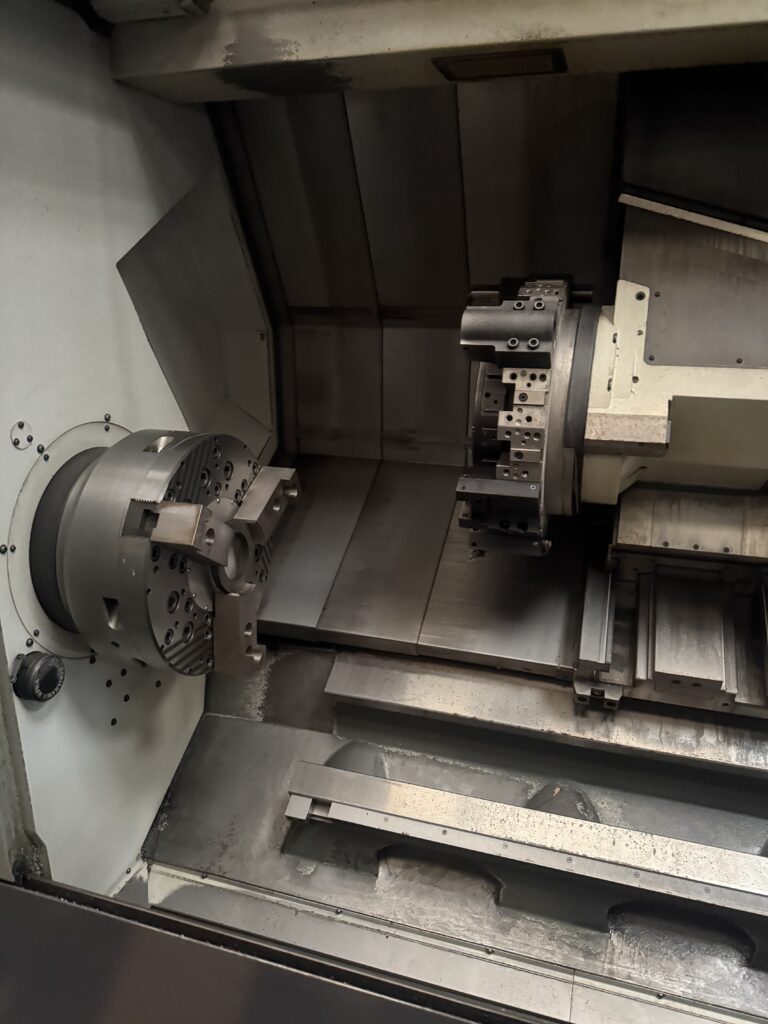

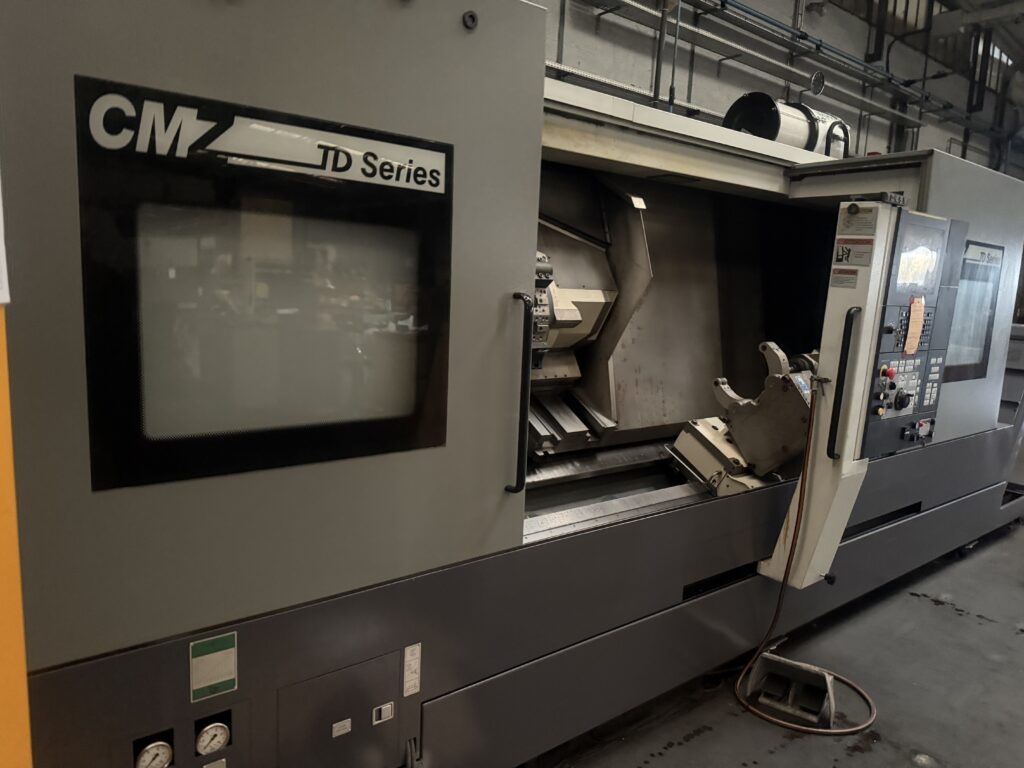

CNC Lathe – CMZ TD45Y / 2200

Lathe
Brand : CMZ
Model : TD45Y / 2200
Year : 2018

CNC : FANUC 32i B 15” Color LCD Manual-Guide
Swing over bed : 950 mm
Swing over carriage : 715 mm
Max. turning diameter : 550 mm
Max. turning length : 2,200 mm
Travels: X : 380 mm
Y : +80 / -60 mm
Z : 2,200 mm
Bar capacity : 127 mm
Spindle nose : ASA 11” A2
Spindle speed : 2,200 rpm
Turret : 12 stations
C axis indexing : 0.001 mm
Tool presetter :
Integrated tailstock :
High-pressure pump 30 bar :
Chip conveyor :
