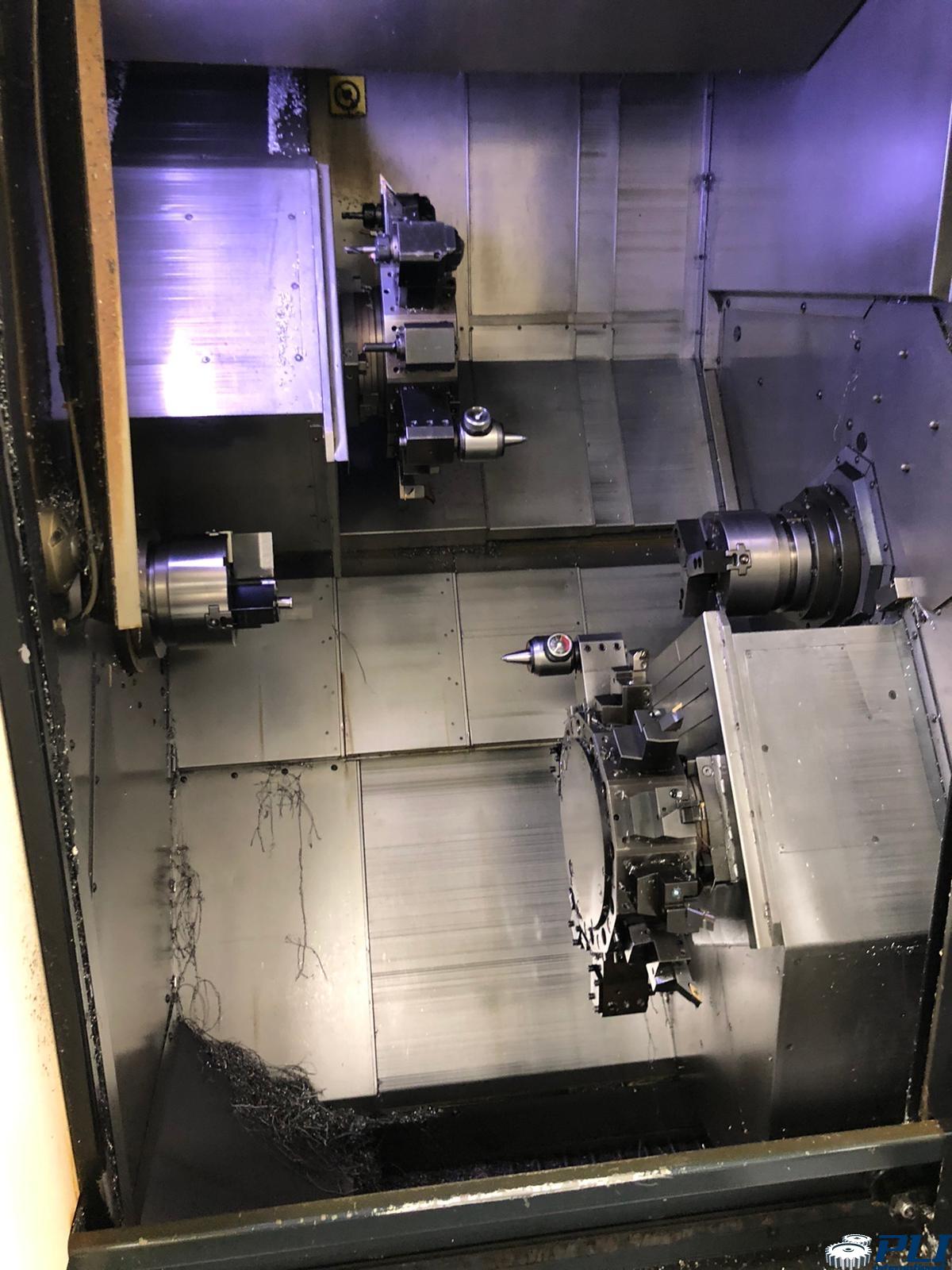

– Number of pins: 2
– Number of axes: 10
– Number of turrets: 2
MAIN SPINDLE
– Spindle nose: A2-6
– Spindle power: 22 [kW]
– Spindle speeds: 5000 [tr/min]
– Maximum bar diameter: 65 [mm]
– C axis indexing accuracy: 0.001 [°]
COUNTERBACK
– Spindle nose: A2-6
– Spindle power : 17.5 [kW]
– Spindle speeds: 5000 [tr/min]
– Maximum bar diameter: 65 [mm]
– C axis indexing accuracy: 0.001 [°]
– Race: 690 [mm]
– Spindle/counter spindle distance: 950 [mm]
UPPER LEFT TURRET
– Number of positions: 12
– Number of motorized positions: 12
– Stroke X/Z: 165/650 [mm]
– Y stroke: +50/-30 [mm]
– Tool type: VDI 30
– Rotating tool speed: 4000 [tr/min]
– Power of rotating tools : 2.5 [kW]
LOWER RIGHT TURRET
– Number of positions: 12
– Number of motorized positions: 12
– X/Z stroke: 165/150 [mm]
– Tool type: VDI 30
– Rotating tool speed: 4000 [tr/min]
– Power of rotating tools : 2.5 [kW]
POWER SUPPLY
– Supply voltage: 400 [V]
DIMENSIONS
– Floor dimensions : 4500X1990 [mm]
– Machine height: 2300 [mm]
– Machine weight : 10000 [kg]
MACHINE HOURS
– Powered hours: 17649 [h]
– Hours worked: 4147 [h]
EQUIPMENT
– CNC : Fanuc 310i
– Interface: Ethernet / RS232 / USB / PCMCIA
– Sprinkler tray
* with high pressure pump
– Chip conveyor
– Tool Probe
– Parts recuperator
– Parts conveyor belt
– Boat : IEMCA VIP 80
– Electrical transformer
– Number of rotating tool holders: 6
– Number of fixed tool holders: 12
– 3-jaw chuck: 2
