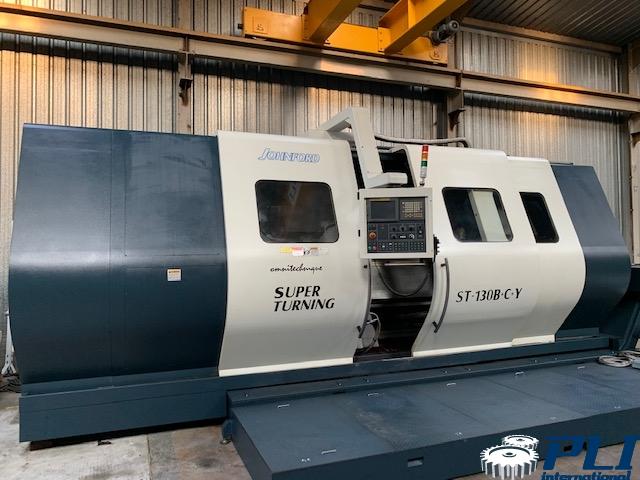

– Number of axes: 4
MAIN SPINDLE
– Spindle nose: A2-11
– Spindle power: 22 / 26 [kW]
– Spindle speeds: 0 – 2,000 [tr/min]
– Gearbox ranges : 4
– Maximum bar diameter: 116 [mm]
– Maximum machinable diameter: 700 [mm]
– Maximum diameter on the bench: 920 [mm]
– C axis indexing accuracy: 0.001 [°]
TOURELLE
– Number of positions: 12
– Number of motorized positions: 6
– X/Z stroke: 370 x 3,050 [mm]
– Y stroke: +/- 75 [mm]
– Tool type: VDI 50
– Rotating tool speed: 3.289 [tr/min]
– Rotating tool power: 5.5 / 7.5 [kW]
COUNTER POINT
– Type of tailstock : Digital
– Cone type: CM7
– Tailstock stroke: 2,800 [mm]
– Sheath race: 150 [mm]
– Distance between points: 3.000 [mm]
POWER SUPPLY
– Supply voltage: 380 [V]
– Installed capacity: 60 [kVA]
DIMENSIONS
– Floor dimensions: 8,460 x 2,540 [mm]
– Machine height: 3.117 [mm]
– Machine weight: 20.100 [kg]
MACHINE HOURS
– Hours on: 33,308 [h]
– Hours worked: 8,558 [h]
Equipment
– CNC : Fanuc 18i-TB
– Interface: RS232 / PCMCIA
– Conversational: Manual guide
– Remote electronic handwheel
– 3-color status lamp
– Tailstock pressure adjustment: hydraulic
– Rotating tailstock
– Sprinkler tray
– Chip conveyor
– Spindle cooling : HABOR
– Bearing: hydraulic ATLING LZ-245, Ø35-245 [mm]
– Number of rotating tool holders: 6
– Number of fixed tool holders: 37
– 3-jaw chuck : Auto Strong N-215, Ø380 [mm]
