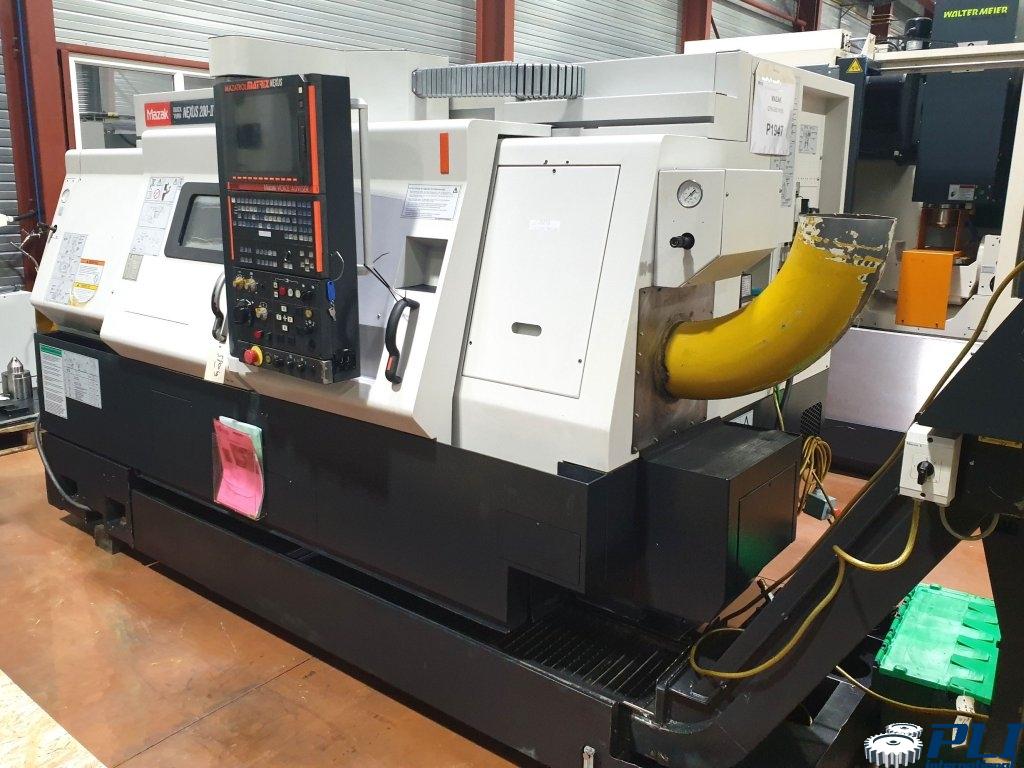

MAZAK NEXUS QTN 200 – 1000L – 2 axes
Year 2006
Serial number 187759
TECHNICAL CHARACTERISTICS
– Spindle nose: A2-6
– Spindle power : 26 Kw
– Spindle speeds: 35-5000 rpm
– Maximum machinable diameter: 350 mm
– Maximum diameter on the bench: 610 mm
– Standard diameter in chuck: 264 mm
TOURELLE
– Number of positions: 12
– Stroke X/Z: 190/1000 mm
NUMERICAL COUNTERPOINT
– Tailstock stroke: 750 mm
– Distance between spikes: 1000 mm
POWER SUPPLY
– Supply voltage: 400 v
– Installed capacity: 42 Kva
DIMENSIONS
– Floor dimensions : 3000X1800 mm
– Machine height: 1900 mm
– Machine weight : 5 T
MACHINE HOURS
– Powered hours: 71621 h
– Working hours: 17000 h
EQUIPMENT
– CNC : Mazatrol MATRIX NEXUS
– Interface: Ethernet / RS232 / USB / PCMCIA
– Watering tank with paper filtration
– Chip conveyor
– Oil mist vacuum cleaner
– Tool Probe
– 3-jaw chuck
Technical description without guarantee, only as an indication.
