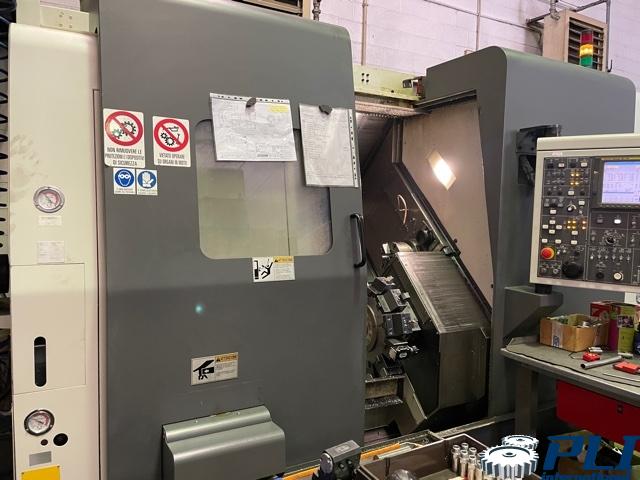

– Number of axes: 8
– Number of pins: 2
– Number of turrets: 2
MAIN SPINDLE
– Spindle nose: A2-6
– Spindle power: 18.5 [kW]
– Spindle speeds: 59 – 4500 [tr/min]
– Maximum bar diameter: 65 [mm]
– Maximum machinable diameter: 250 [mm]
– Maximum diameter in chuck: 215 [mm]
– C axis indexing accuracy: 0.001 [°]

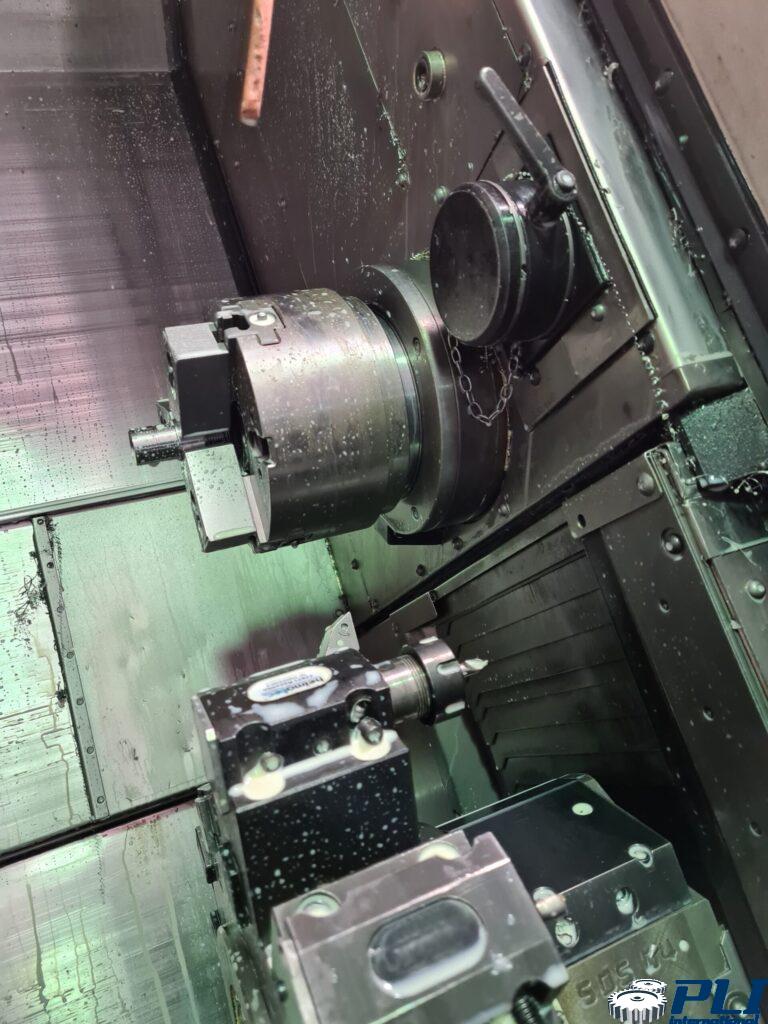

COUNTERBACK
– Spindle nose: A2-5
– Spindle power: 11 [kW]
– Spindle speeds: 59 – 4500 [tr/min]
– Maximum bar diameter: 51 [mm]
– Maximum machinable diameter: 165 [mm]
– C axis indexing accuracy: 0.001 [°]
– Race: 575 [mm]

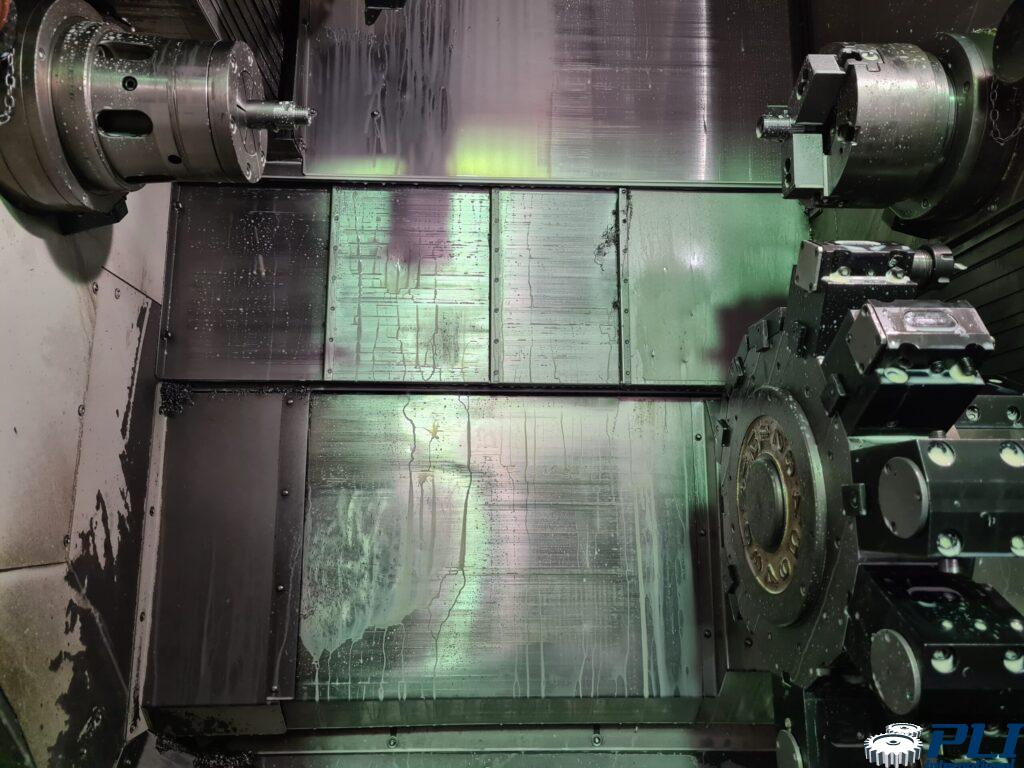

– Spindle/counter spindle distance: 250 – 870 [mm]

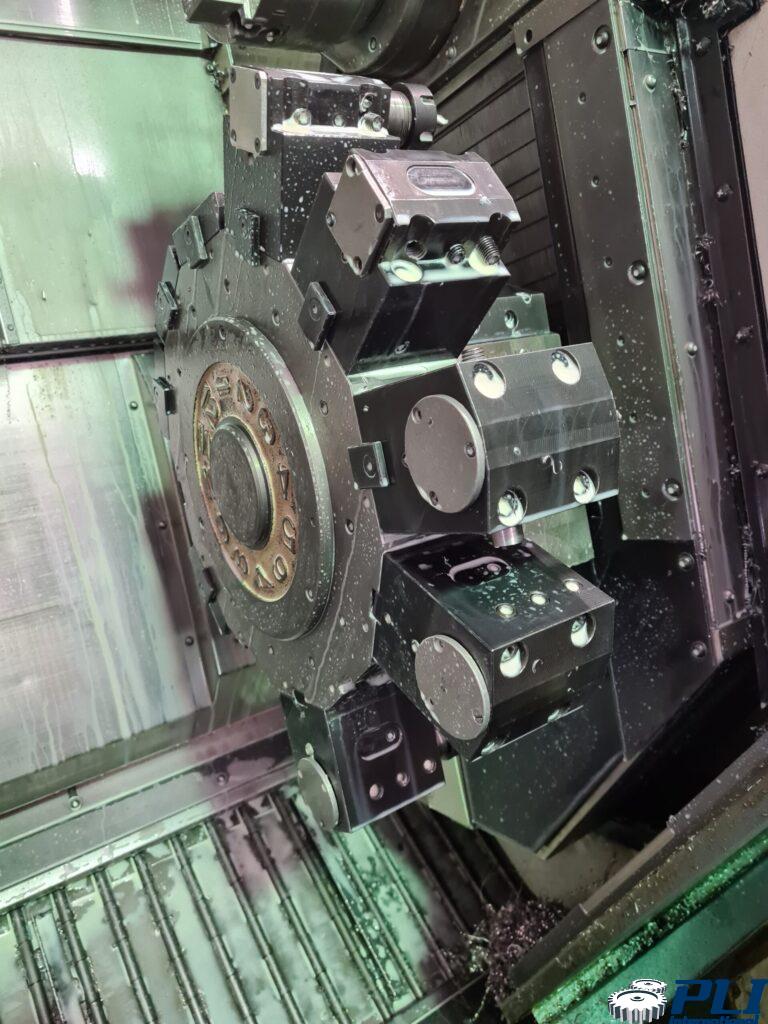

TOURELLE 1
– Number of positions: 12
– Number of motorized positions: 12
– X/Z stroke: 195/600 [mm]
– Y stroke: +/- 42 [mm]
– Rotating tool speed: 80 – 3600 [tr/min]
– Power of rotating tools : 5.5 [kW]

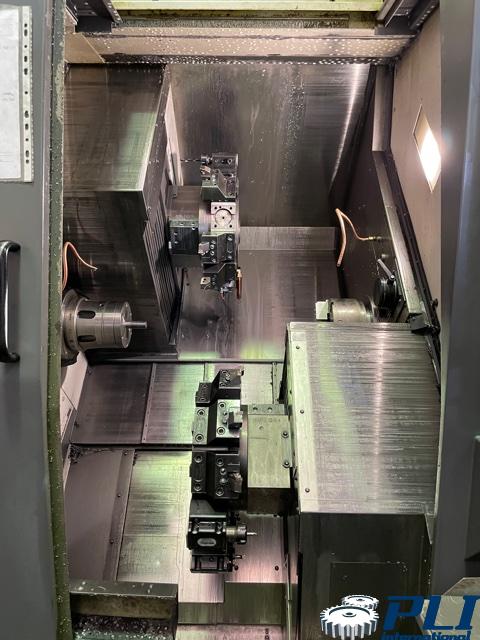

TOURELLE 2
– Number of positions: 12
– Number of motorized positions: 12
– X/Z stroke: 195/600 [mm]
– Rotating tool speed: 80 – 3600 [tr/min]
– Power of rotating tools : 5.5 [kW]
POWER SUPPLY
– Supply voltage: 400 [V]
– Installed capacity: 63 [kVA]
DIMENSIONS
– Floor dimensions: 3475 x 1933 [mm]
– Machine height: 2225 [mm]
– Machine weight : 6000 [kg]

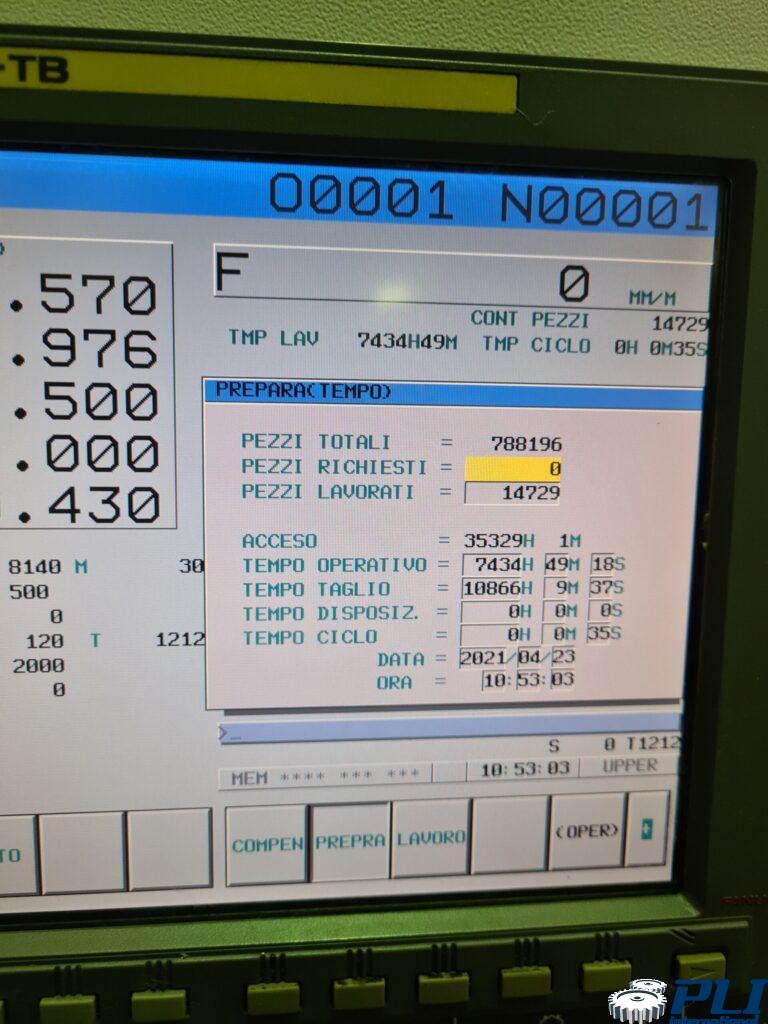

MACHINE HOURS
– Hours on: 35328 [h]
– Spindle hours: 11000 [h]
Equipment

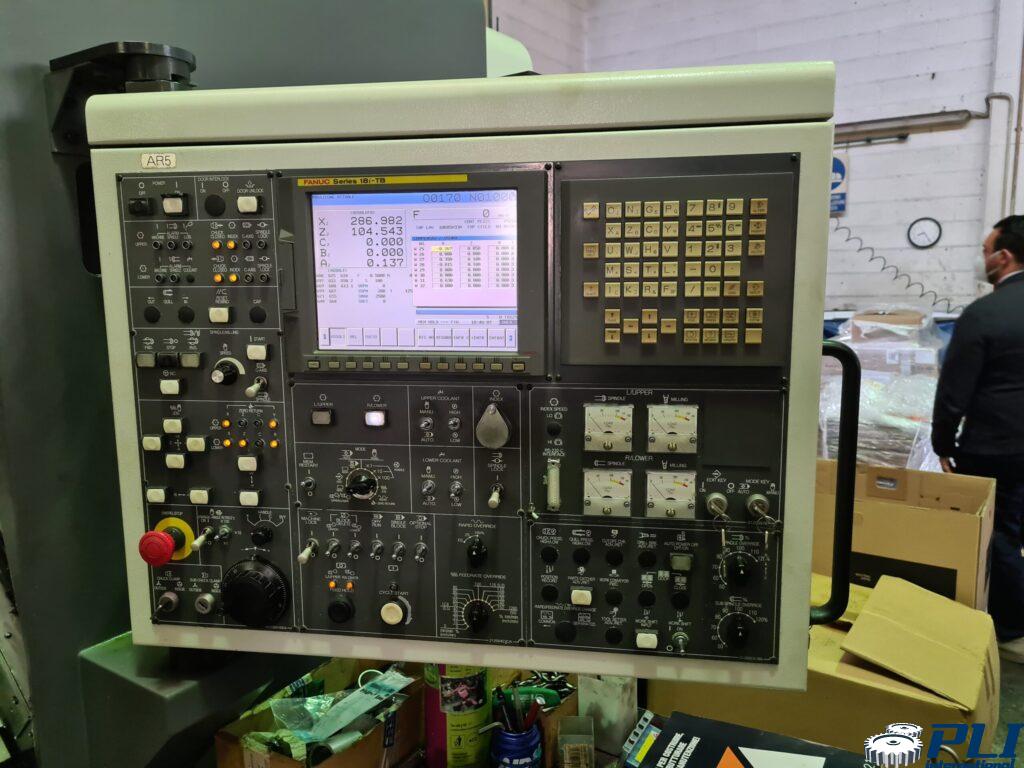

– CNC: 18i-TB
– 3-color status lamp
– Sprinkler tray
* with high pressure pump: 25 [bars]
– Chip conveyor
– Parts recuperator
– Parts conveyor belt

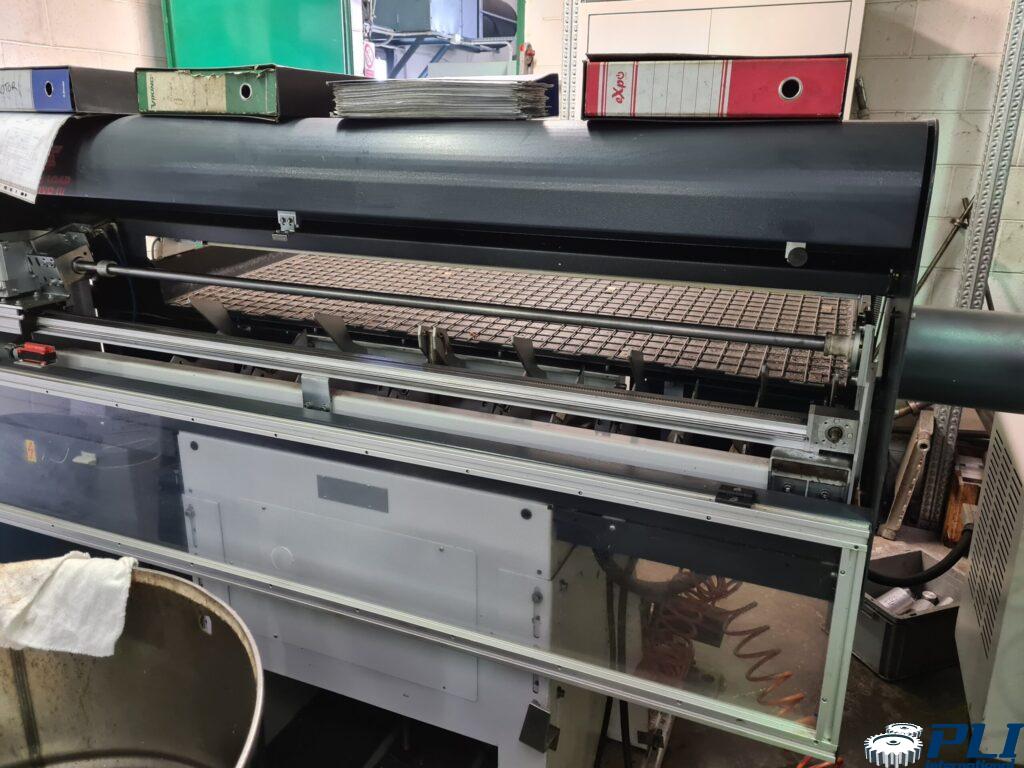

– Boarding device: LNS QUICK LOAD SERVO 3
– Number of rotating tool holders: 4
– Number of fixed tool holders: 15
– Collet chuck
