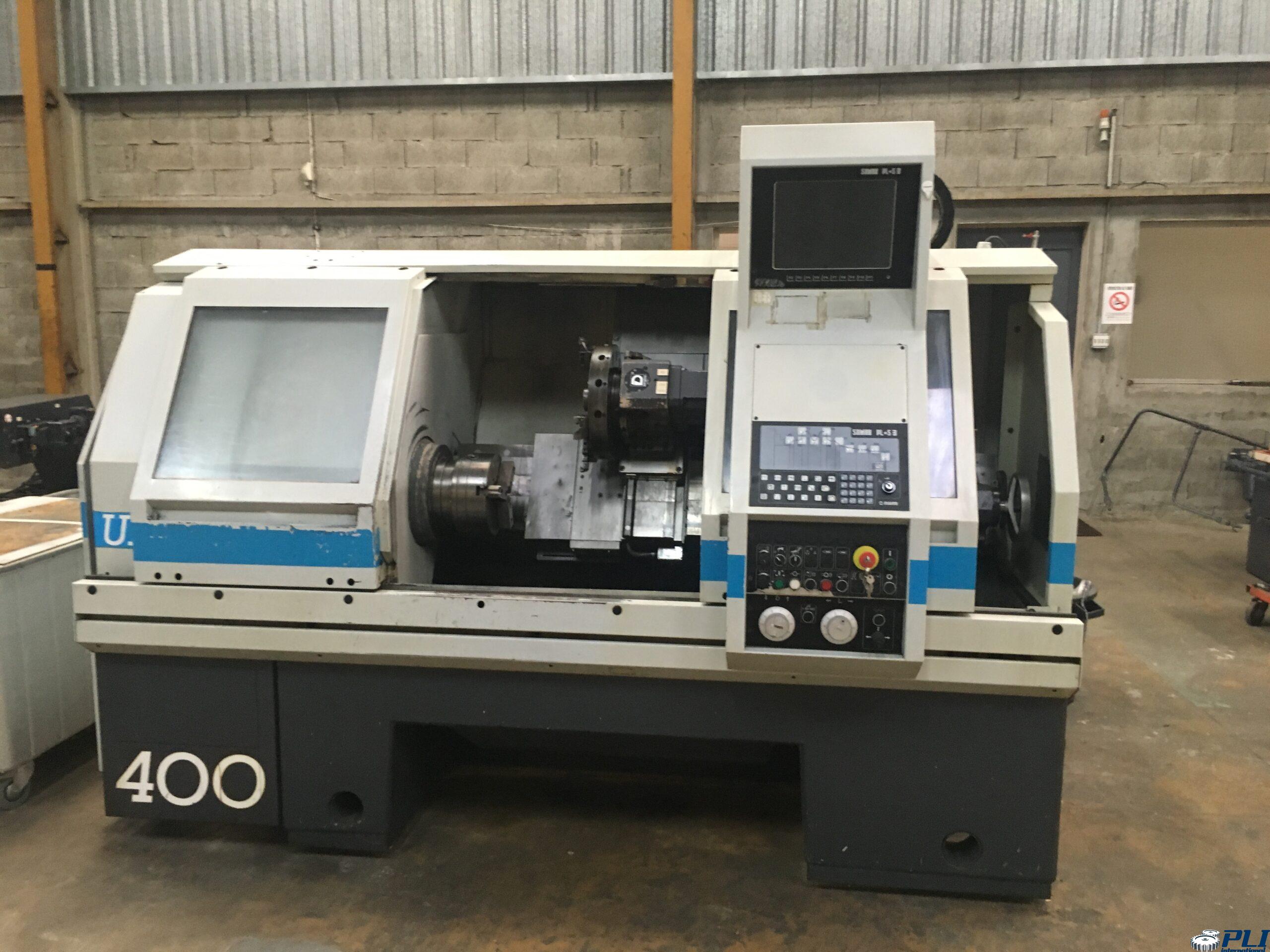

TECHNICAL DATA
max. diameter above the bench: 400 mm
max. diameter over the trolley: 350 mm
maximum machinable diameter between tips: 220 mm
distance between tips: 1130 mm
X x Zstrokes : 235 x 915 mm
maximum bar diameter: 52 mm
counterpoint sleeve stroke: 150 mm
spindle speed: 0 – 3000 rpm
spindle power: 15 kW
total power: 34 kW
dimensions: 2800x2200x2100 mm
weight: 5300 kg
EQUIPMENT
CNC control NUM 1060
12-station turret
manual counter point
lubrication tank with pump
Madrin 3 jaws
