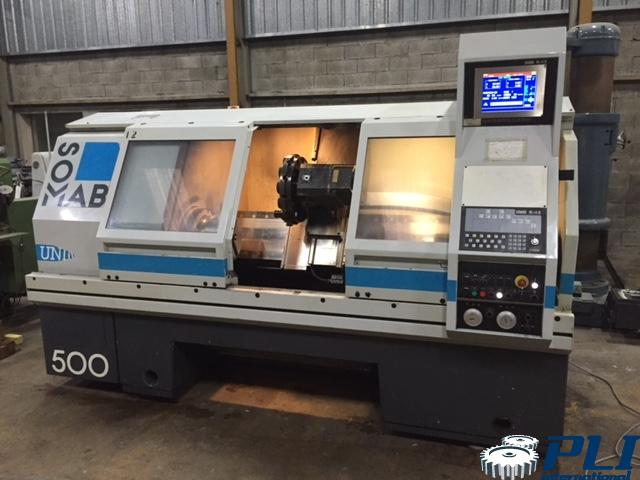

Technical specifications:
Diameter of passage on bench: 500 mm
Maximum diameter of passage on protector: 420 mm
Distance between warehouses: 1500 mm
Machinable diameter in between: 300 mm
Transverse stroke: 267 mm
Longitudinal stroke: 1130 mm
Maximum machining distance with chuck: 1095 mm
Maximum distance spindle nose/end of P.C.: 1350 mm
Doll :
Spindle nose type: A1 8′.
Spindle bore: 72 mm
Spindle speed: 60 to 2500 rpm
Spindle power: 18/24 kW
Trainard:
Longitudinal screw: diameter 40, 10 mm pitch
Transverse screw: diameter 32, 10 mm pitch
Fast longitudinal movement speed: 15m/mn
Rapid traverse speed: 15m/min
Turret (VDI 40):
Number of positions: 12
Boring bar diameter: 40 mm
Tailstock :
Sheath diameter: 110 mm
Quill stroke: 160 mm
Dimensions: 3400 mm * 2205 mm * 2200 mm
Weight: 7300 kg
Equipment :
CNC NUM 1060
Granite bench
Contrepointe CM5
12-position turret VDI 40
Chip conveyor
Lubrication tank with pump
3-jaw chuck 215 mm
Fixed tool holders
