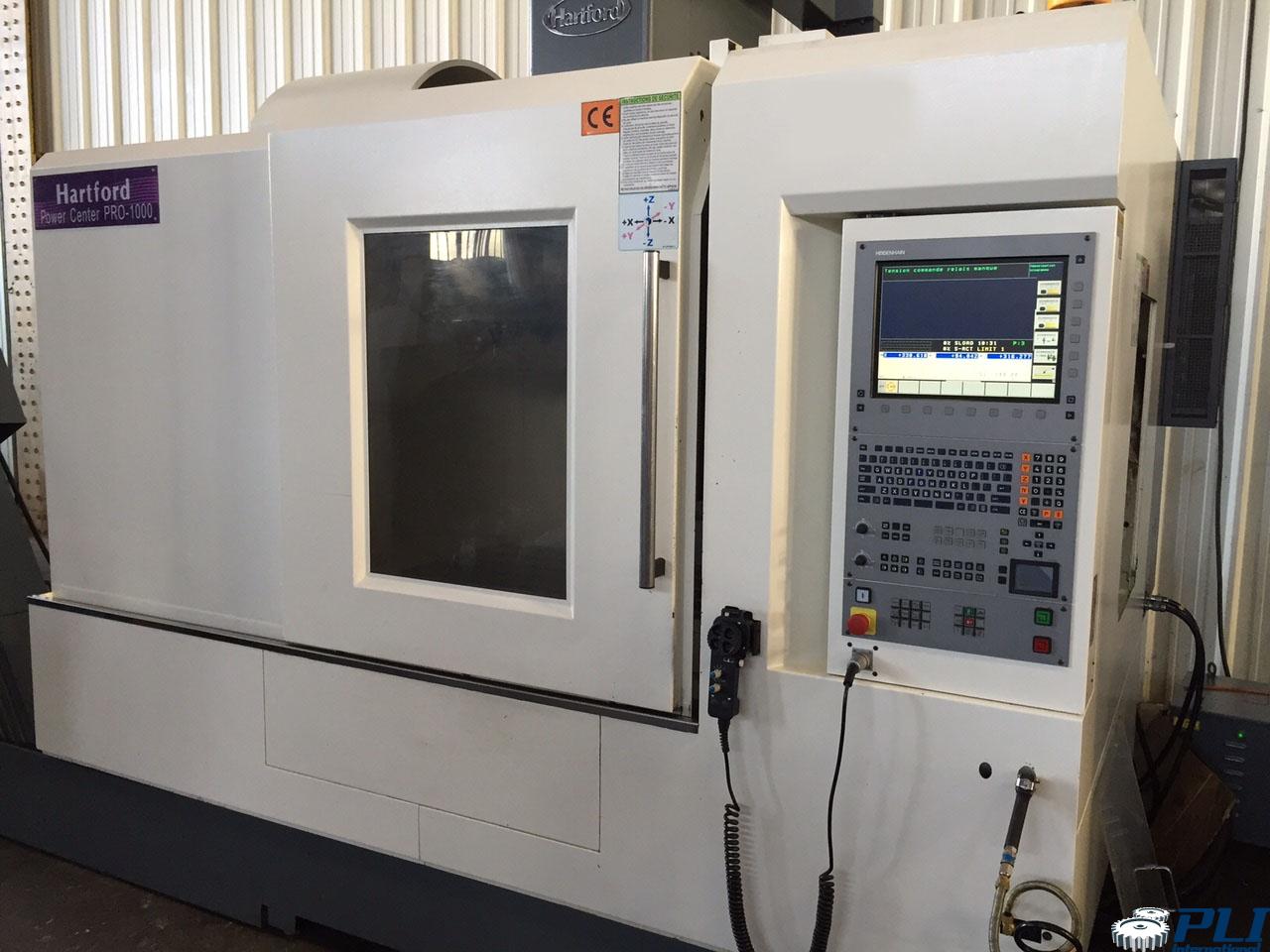

2008 HARTFORD POWER PRO 1000 machining centre
HEIDENHAIN TNC 530 Numerical Control
Technical specifications:
Spindle 8000 rpm
Spindle power: 12.5 kw
Races:
X : 1000 mm
Y: 600 mm
Z : 630 mm
Machine weight: 6000 Kg
Installed electrical power: 23 Kva
Dimension: 2900 X 2644 X 2890 mm
Table size: 1150 mm X 42600 mm
Maximum weight on table: 700 kg
Accessories :
Chip evacuator
Gearbox (2 speeds)
Spindle center watering 20 bars
Spindle cooling
Prismatic slides
Electronic handwheel
Tool changer ATC 24 BT 40
