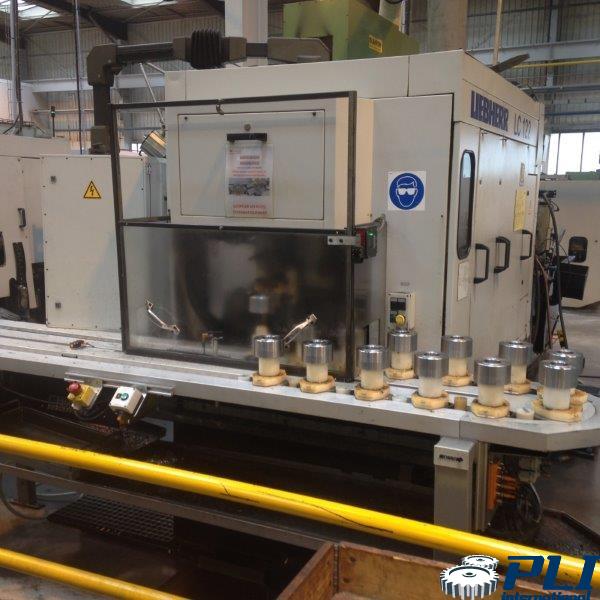

CNC milling machine LIEBHERR LC 122 year 1999 CN Siemens 840C
Technical specifications:
Max. workpiece diameter: 125mm
Max. module 3mm
Axial stroke : 250mm
Table diameter: 145mm
Table rotation: 150 rpm
Tiller rotation: 2000 rpm
Distance between milling cutter and table centre: 10-160 mm
Head tilt ±45 degrees
HSK50A milling cutter shaft cone
Maximum Shifting : 108mm
Maximum diameter/length of the hob: 90/200 mm
Accessories :
Liebherr automatic loader (HSL) 20 positions with automatic feeder
Tailstock
Clamping device
Cooling system
Magnetic chip conveyor
