| CMZ TC20 YS - 800 CNC : | |
| CMZ GL20-II robot : | |
| CNC : | Fanuc 31iT |
| Maxi diam over bench : | 920 mm |
| Maxi diam over carriage : | 745 mm |
| Maxi turning diam : | 550 mm |
| Spindle bore : | 66 mm |
| Spindle speed : | 4000 rpm |
| Spindle power : | 22/15 [kw] |
| Servo turret : | 16 positions |
| Rear exit chip conveyor : | |
| High pressure coolant pump : | |
| Tools : | 4 x double axial driven holders. 2 x extended boring bar holders 1 x double ended standard boring bar holder 2 x double ended turning tool holder |
| Machine manuals and service records : |
SOLD

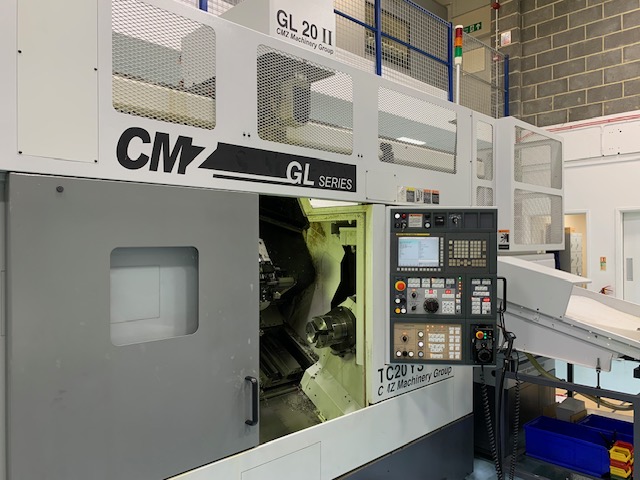

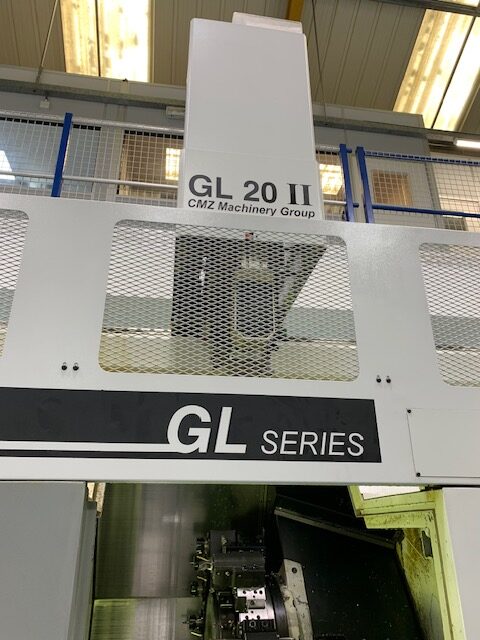

CNC Turning Machine – CMZ TC20 YS – 800 – GL 20 II
| Brand : | CMZ |
| Model : | TC20 YS - 800 - GL 20 II |
| Year : | 2013 |
