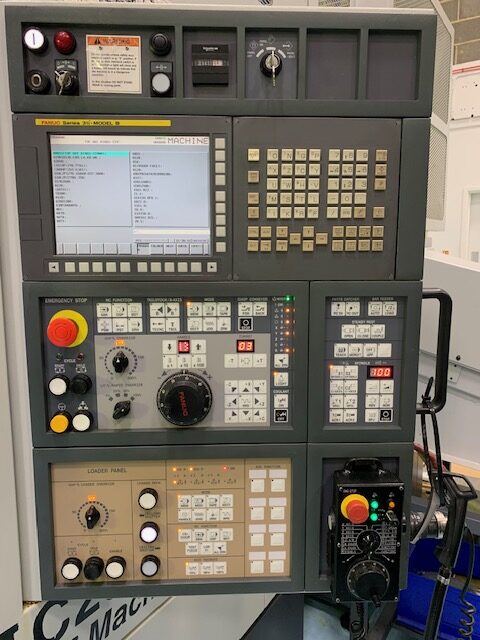

| CNC Chip convoyer Tool probe Parts collector Tools Technical description without guarantee, only as an indication. : | FANUC 31i |
| Maxi diameter over bed : | 920 mm |
| Maxi diameter over carriage : | 745 mm |
| Maxi turning diameter : | 550 mm |
| Spindle bore : | 66 mm |
| Distance between centers : | 797 mm |
| Spindle Motor power : | 22/15kW |
| Spindle nose : | A2-6 |
| Spindle speed : | 4000 rpm |
| Sub spindle bore : | 46 mm |
| Sub spindle max speed : | 5000 rpm |
| Turret : | 16 positions |
| Machine weight : | 7 200kg |

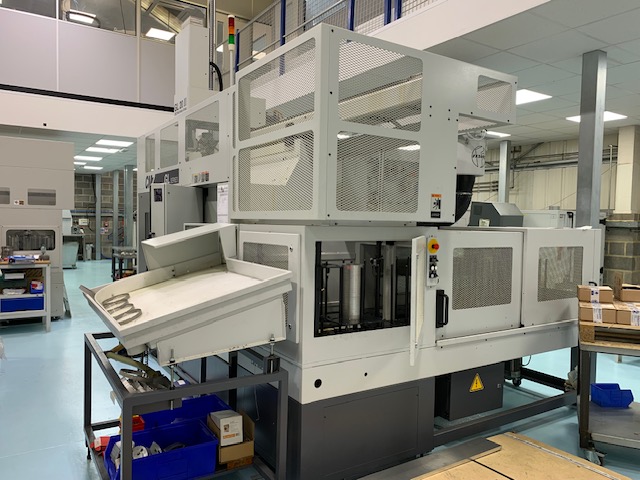

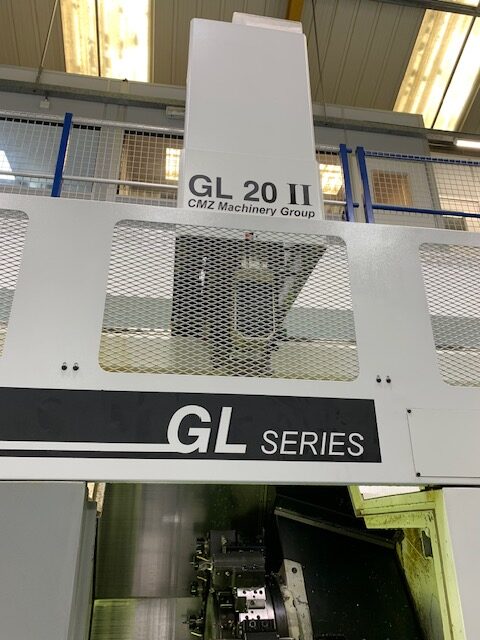

| Gantry Robot GL-20 : | |
| Chip conveyor : | |
| Many accessories : |
SOLD
CNC Turning Machine – CMZ TC20YS – GL20
| Brand : | CMZ |
| Model : | TC 20 YS - GL20 |
| Year : | 2013 |
