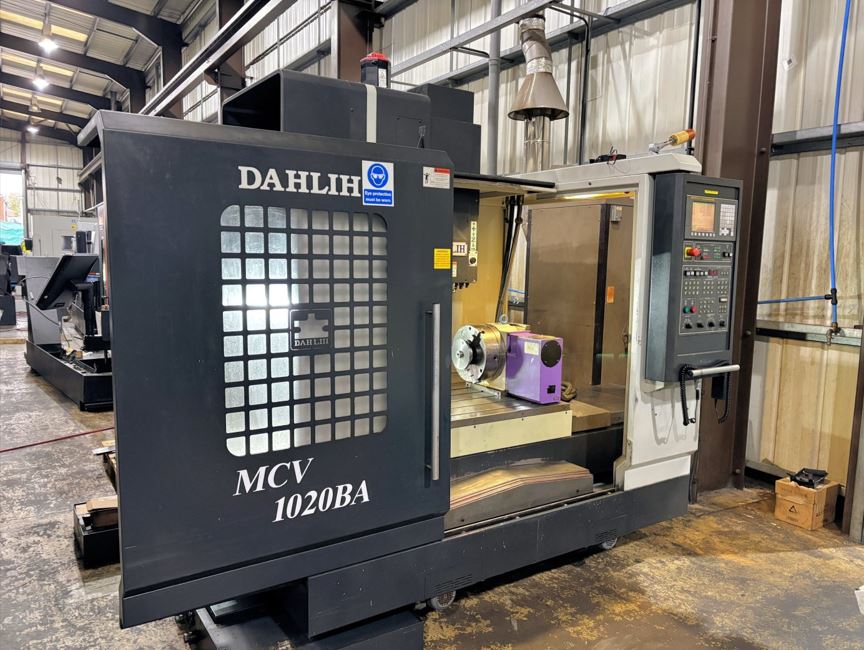

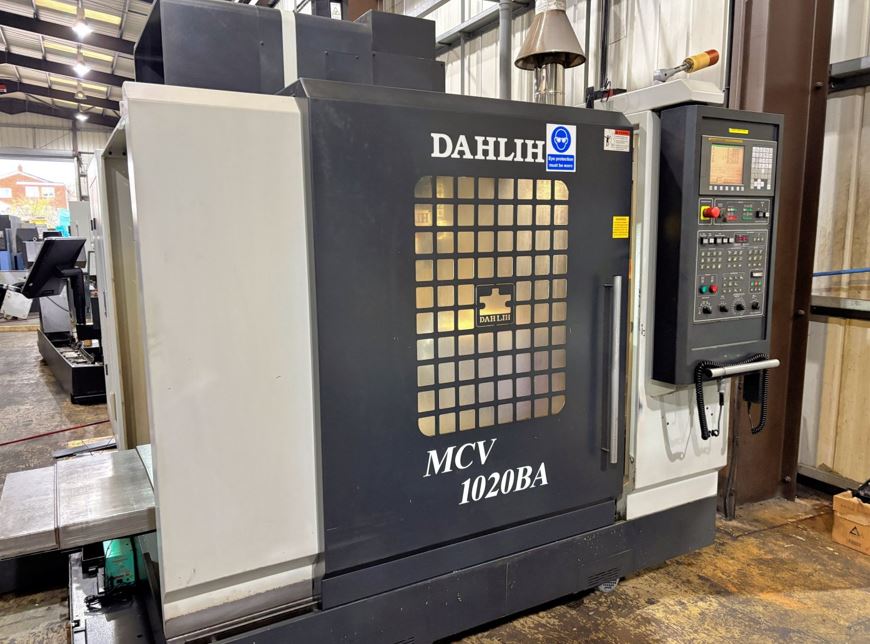

CNC Vertical Machining Center – Dahlih MCV 1020BA

Machining centres
Brand : Dahlih
Model : MCV 1020BA
Year : 2008

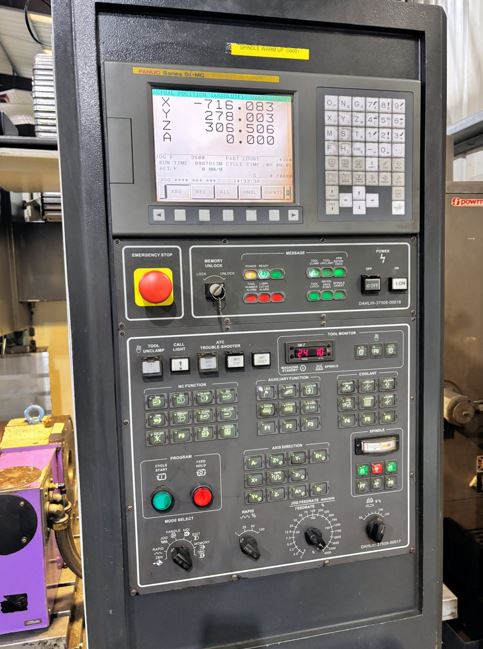

CNC : FANUC 0i-MC
Distance from Spindle Centre to Column : 600mm
Machine Dimensions : 5670 x 2975 x 2715mm
Machine Weight : 7830kg
Maximum Tool Diameter : 77mm
Maximum Tool Length : 300mm
Maximum Tool Weight : 7kg
Maximum workpiece weight : 1000kg
Min - Max Height under Spindle : 150 ~ 710mm
Rapid Feedrates : 20m/minute
Spindle Motor Power : 11kW
T- Slots : 5 x 18mm
Table Size : 1250 x 660mm
Tool Change Capacity : 24 Stations
Tool Size : BT40
Traverses XYZ : 1020 x 550 x 560mm
4th axis Interface :

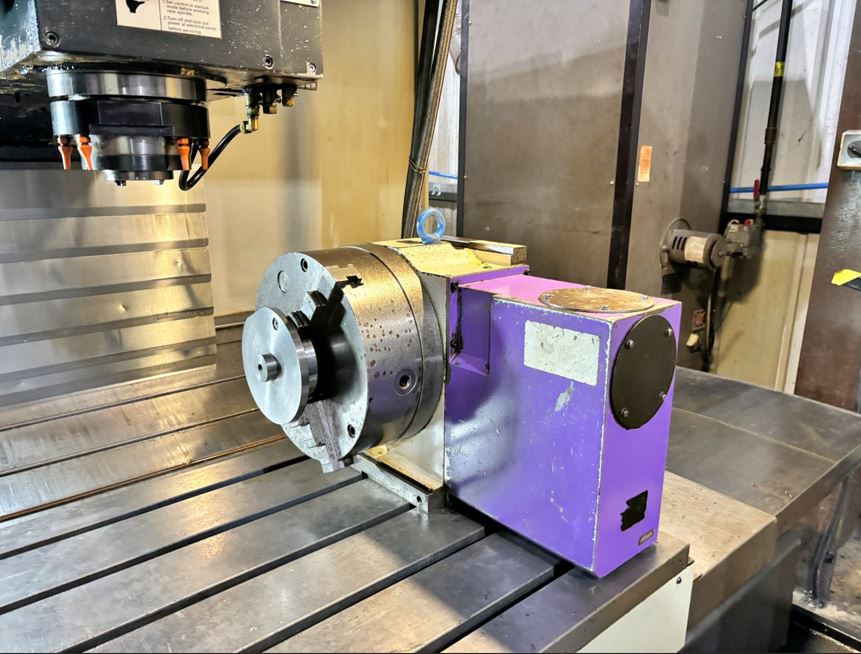

4th axis Rotary Table :
Coolant :
Interlocked guards :
Through Spindle Coolant :
