HCMC-1892 + 0iMD
BBT-50
Tool ARM Type Tool Magazine_40 pcs,
Gear Spindle 6000RPM_
Spray Around Spindle
Spindle Air Curtain
Air Blast through Spindle
Spindle Cooler, HBO-600
Coolant Through Spindle_20BAR
Longitudinal Travel (X-axis) 1800 mm
Cross Travel (Y-axis) 920 mm
Vertical Travel (Z-axis), 820_C2350_S200~1020 mm
X-axis Cutting Feedrate_1-10000 mm
Y-axis Cutting Feedrate_1-10000 mm
Z-axis Cutting Feedrate_1-10000 mm
X-axis Rapid Traverse_18000 mm
Y-axis Rapid Traverse_18000 mm
Z-axis Rapid Traverse_18000 mm
X-axis Box Guide way
Y-axis Box Guide way
Z-axis Box Guide way
XYZ-axis Ball Screw Enforce Pressure
Z-axis Counter Balance

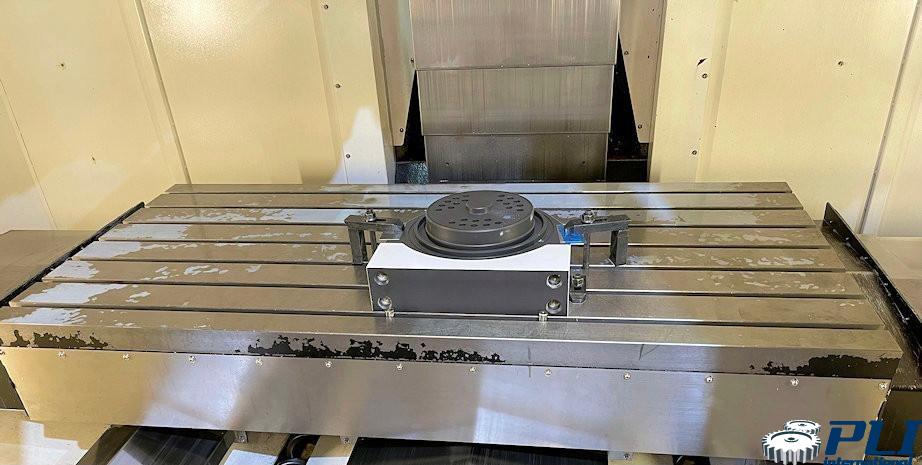

Working Surface_1950*920 mm
Max. Table Load 3000kg
Table Side Air Blast M50 Control
Lubrication System
Hydraulic Hose Coolant Gun
Coolant system_Coolant Pump Motor, Standard 1.0HP
Coolant flushing device
Air gun
Hoist Seat
Remote manual pulse generatorJ835

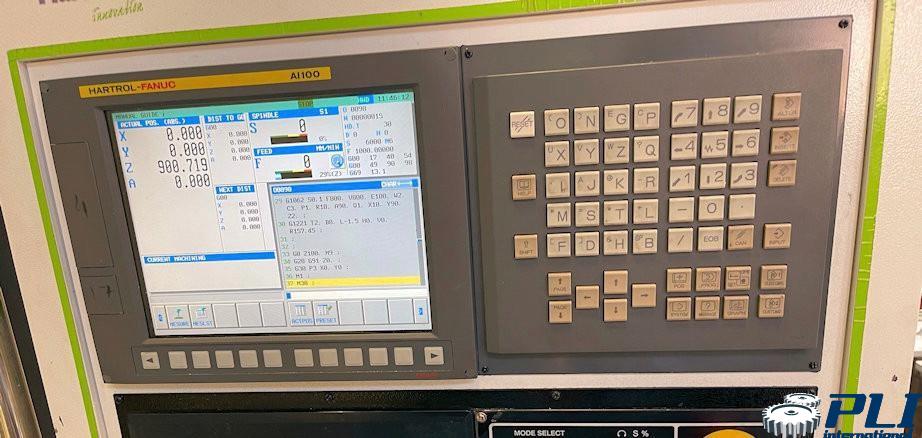

Dual Screen
CE mark
