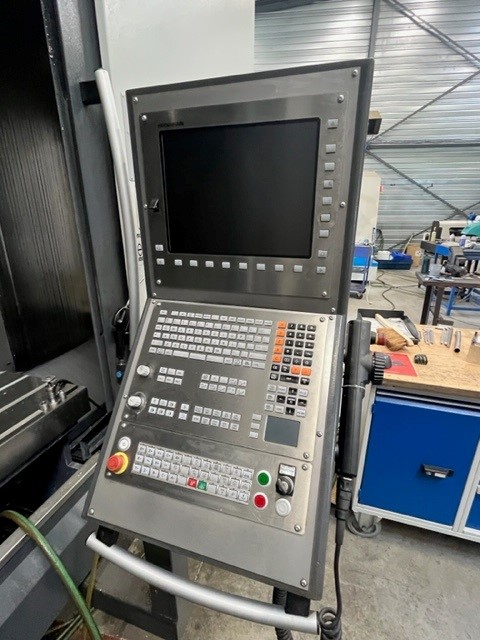

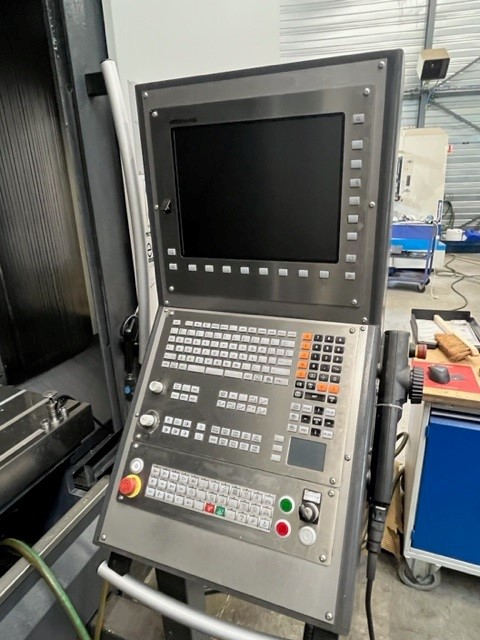

| CNC : | Heidenhain iTNC 640 |
| Table dimensions : | 2.800 x 820 mm |
| Maximum table load : | 3100 Kg |
| X-axis trave : | 2580 mm |
| Y-axis travel : | 800 mm |
| Z-axis travel : | 800 mm |
| Tandem machining travel (X-axis) : | 975 x 2 |
| Rapid X-Y-Z axes : | 50 - 50 - 50 m/min |
| Spindle data Rotation speed : | 15000 rpm |
| Power : | 24 Kw |
| Magazin tools : | 40 |

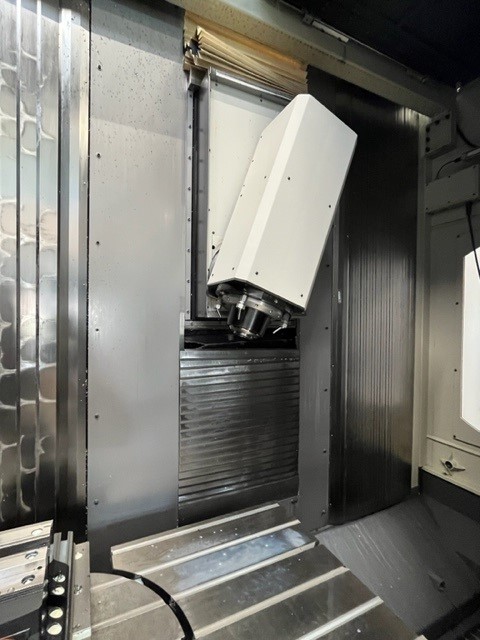

| B-axis head trave : | +/- 105° degrees |

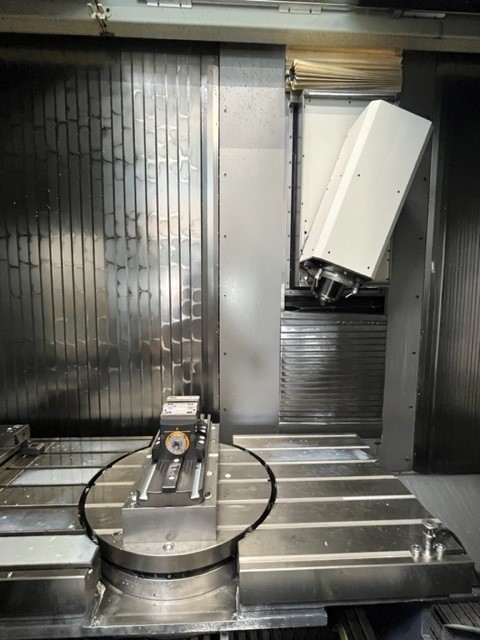

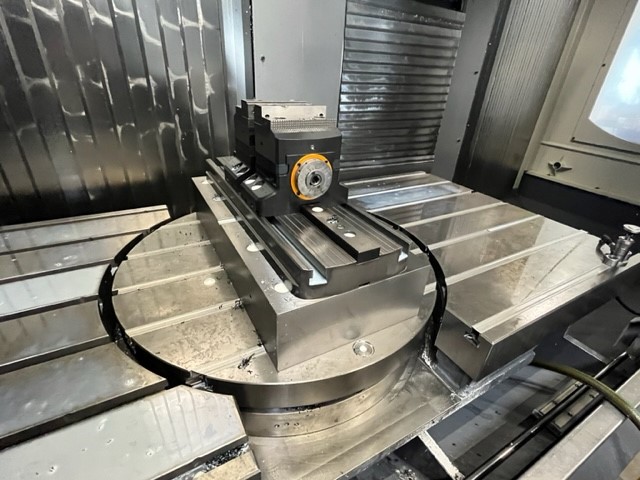

| Integrated rotary table Table diameter : | 700 mm |
| Maximum table load : | 1600 Kg |
| C-axis rapid travel : | 80 rounds/min |
SOLD
CNC Vertical Machining Center – REMA CONTROL NBT5.25
| Brand : | REMA CONTROL |
| Model : | NBT5.25 |
| Year : | 2017 |
