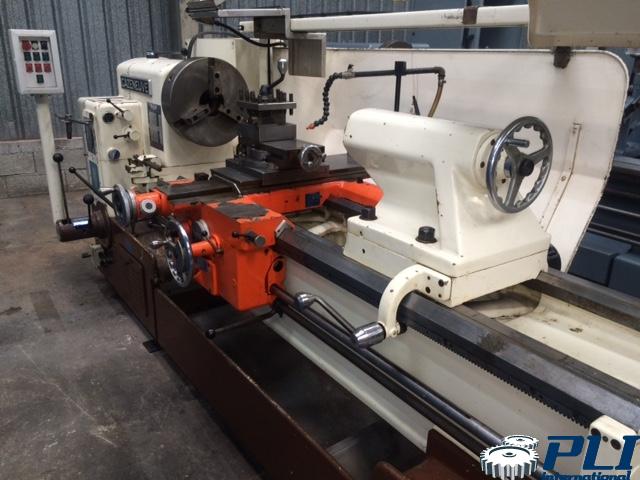

Conventional turning lathe – CAZENEUVE HB 725
Spike height: 315 mm
Spindle passage: 81 mm
Diameter allowed above the bench: 725 mm
Permitted diameter above the carriage: 670 mm
Diameter allowed in the breakaway: 920 mm
Total width of the break: 310 mm
Distance between centres: 1500 mm
Bench width: 505 mm
Maximum cross slide travel: 400 mm
Value of long-term advances: 0.0125 to 8
Value of the transversal advances: 0.0062 to 4
Overall dimensions: 3150*1300*1400
Weight: 3T
