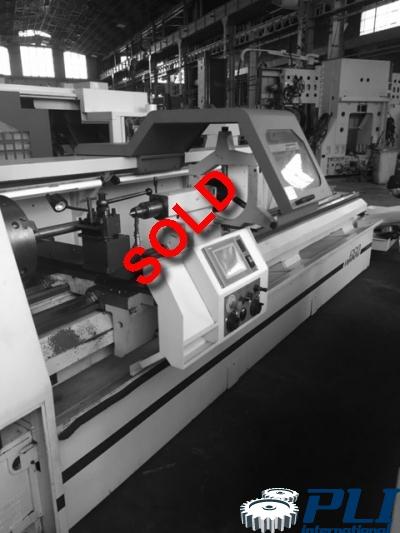

Assisted Tower Siemens Optica 660 X 4000 from 2011
Max. diameter above the bench: 660 mm
Max. diameter above the carriage: 370 mm
Distance between centres: 3980 mm
Max. diameter in spindle: 115 mm
Spindle speed: 2500 rpm. with two speed ranges
Spindle type : D1-8 ”.
Tailstock type : CM 5
Stroke of the sleeve: 200 mm
Sheath diameter: 100 mm
Dimensions: 5897 x 2100 x 2012 mm
Weight 6T1
Equipment
3-jaw quick change chuck
Parat Turret
Lubrication tank with pump
Fixed bezel
