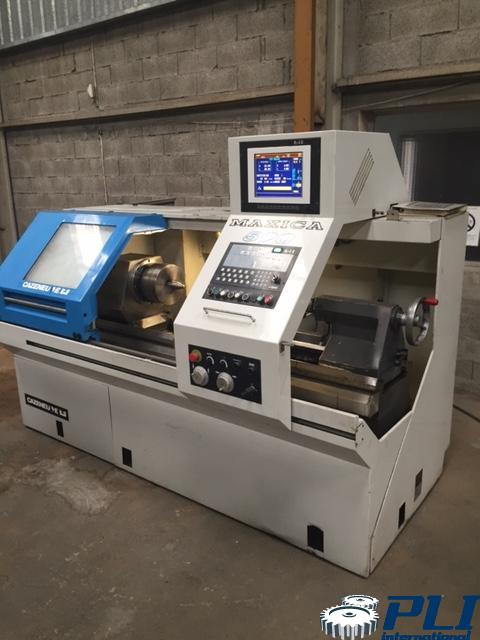

Learning lathe CAZENEUVE MAXICA 590 X 1100 from 1997
Max. diameter above the bench: 583 mm
Max. diameter above the carriage: 300 mm
Distance between centres: 1100 mm
Max. diameter in spindle: 82 mm
Spindle speed: 2500 rpm.
Spindle type : A1-8 ”.
Stroke: 282 x 1710 mm
Tailstock type : KM 6
Stroke of the fork: 285 mm
Sheath diameter: 100 mm
Dimensions: 3620 x 1400 x 1830 mm
Equipment
CN CAZENEUVE PL+S5
3-jaw chuck Ø250 mm
MULTIFIX rear turret
Lubrication tank with pump
