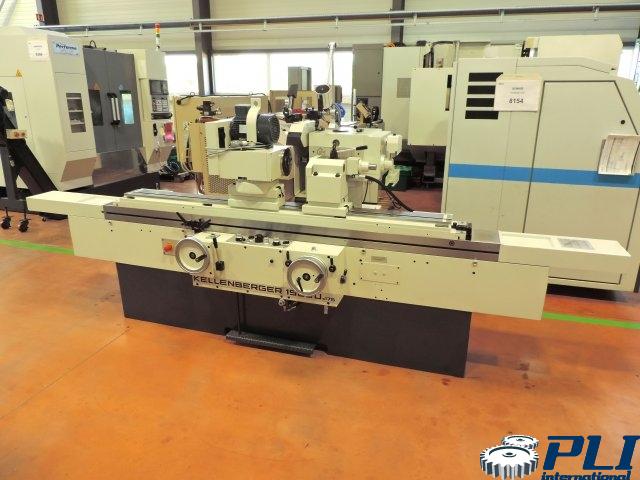

Rebuilt machine 2 external grinding wheels 1 internal grinding wheel
Technical specifications:
Distance between centres: 1500 mm
Tip height: 225 mm
Table orientation: 7°.
Dimensions external left wheel : 400 * 63 * 127 mm
Dimensions external right wheel : 225 * 20 * 76.2 mm
Grinding wheel spindle speed : 1530 / 1750 / 2040 / 2450 rpm
Orientation of the headstock : 270°.
Grinder motor power: 4,4 kW
Workpiece spindle speed: 5-500 rpm
Inner cone Morse 5 workpiece holder pin
Workpiece motor power 0,9 kW
Inner cone Morse tailstock 3
Machine size with table travel: 5400 * 2000 * 1400 mm
Weight: 3600 kg
Equipment :
Automatic pass taking
Variable speed drive for workpiece carrier
Hydraulic tailstock
