Available JUNE 2019

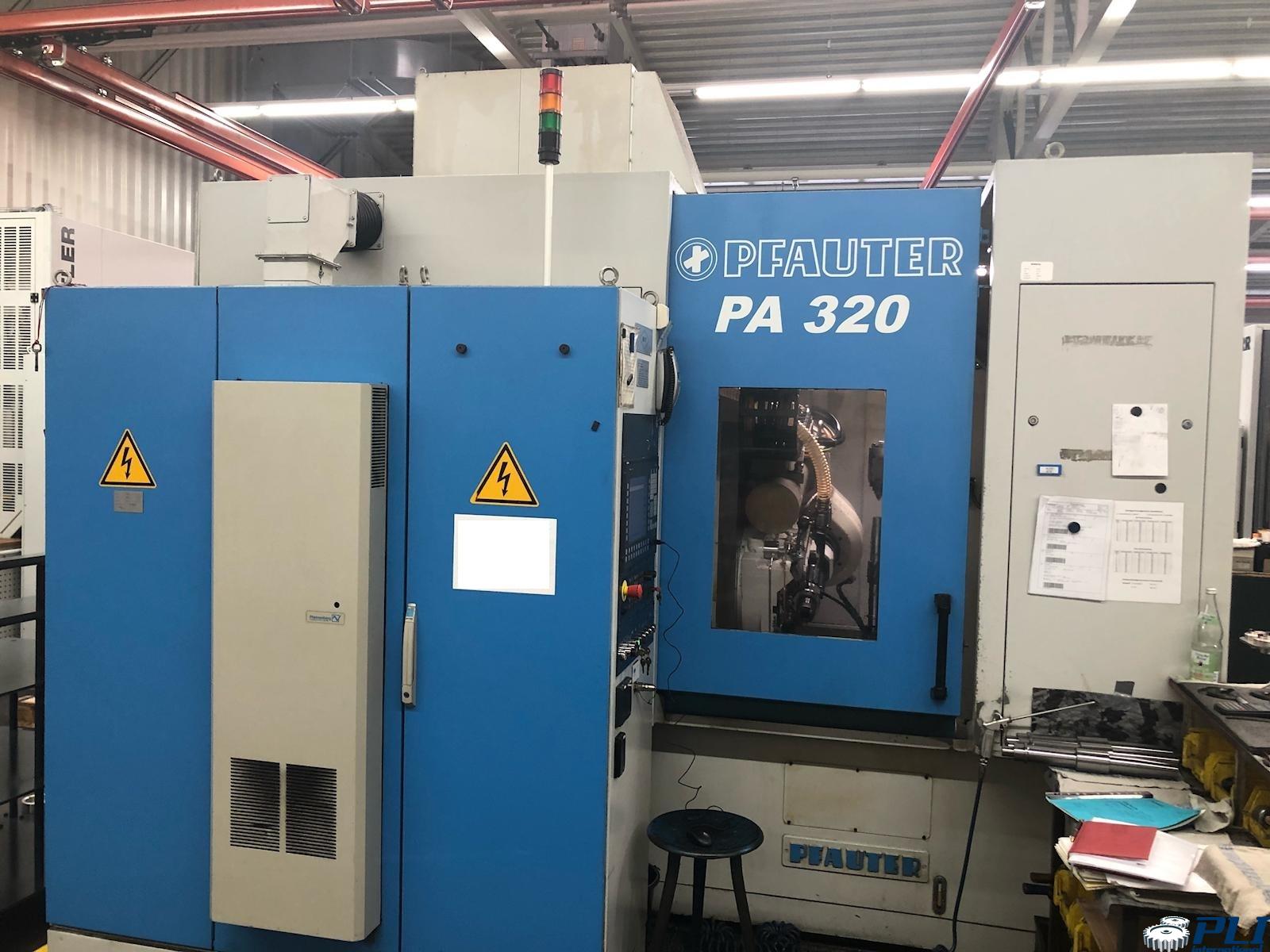

Gear Hobbing Machine – Vertical –
PFAUTER
PA 320 CNC
New in 1982/2003
Control Siemens Sinumerik 840 D
Max. wheel diameter : 350 mm
Gear width : 230 mm
Max. module: 8
Tip circle diameter : 163 mm
Milling arbors Ø : 22/27/32/40
Radial slide travel : 225 mm
Tangential slide travel : 170 mm
Axial slide travel : 250 mm
Milling head -swivable +A = 30 Grad
Milling head -swivable -A = 45 Grad
Rapid travel x/y/z: 1000 mm/min
Table diameter : 350 mm
Table turning speeds : 1 – 40 rpm
Boron table: 150 mm
Weight of the machine : 9,4 t
Dimensions of the machine ca. 6,0 x 3,0 x 3,2 m
Description
2003 complete rebuilt and new CNC control Siemens Sinumerik 840 D
with:
– complete covering
– outer steady
– oilmist exhauster
– chip conveyor
– arbors Ø22,27,32,40 mm
