Maximum workpiece diameter: 1000 mm
Maximum gear width : 700 mm
Tangential stroke Y: 200 mm
Maximum modul : 14
Min/max distance between hob center/table center : 130/700 mm
Head tilt: +30°/ -145°.
Table bore : 180 mm – Table diameter : 780 mm
Maxi weight on table : 3170 kg

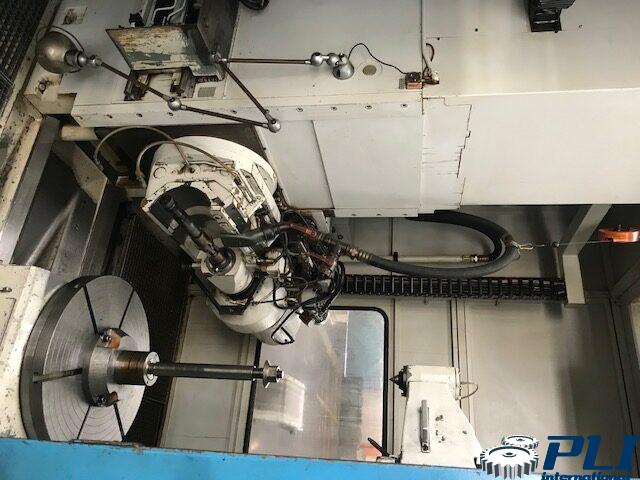

Hob dimensions : maxi diam 270mm – maxi lenght : 300 mm
Machine weight : 13500kg
Dimensions: 6460 x 6135 x 3825 mm
Options:
Teeth by teeth cutting
Carbide cutting with faser item
