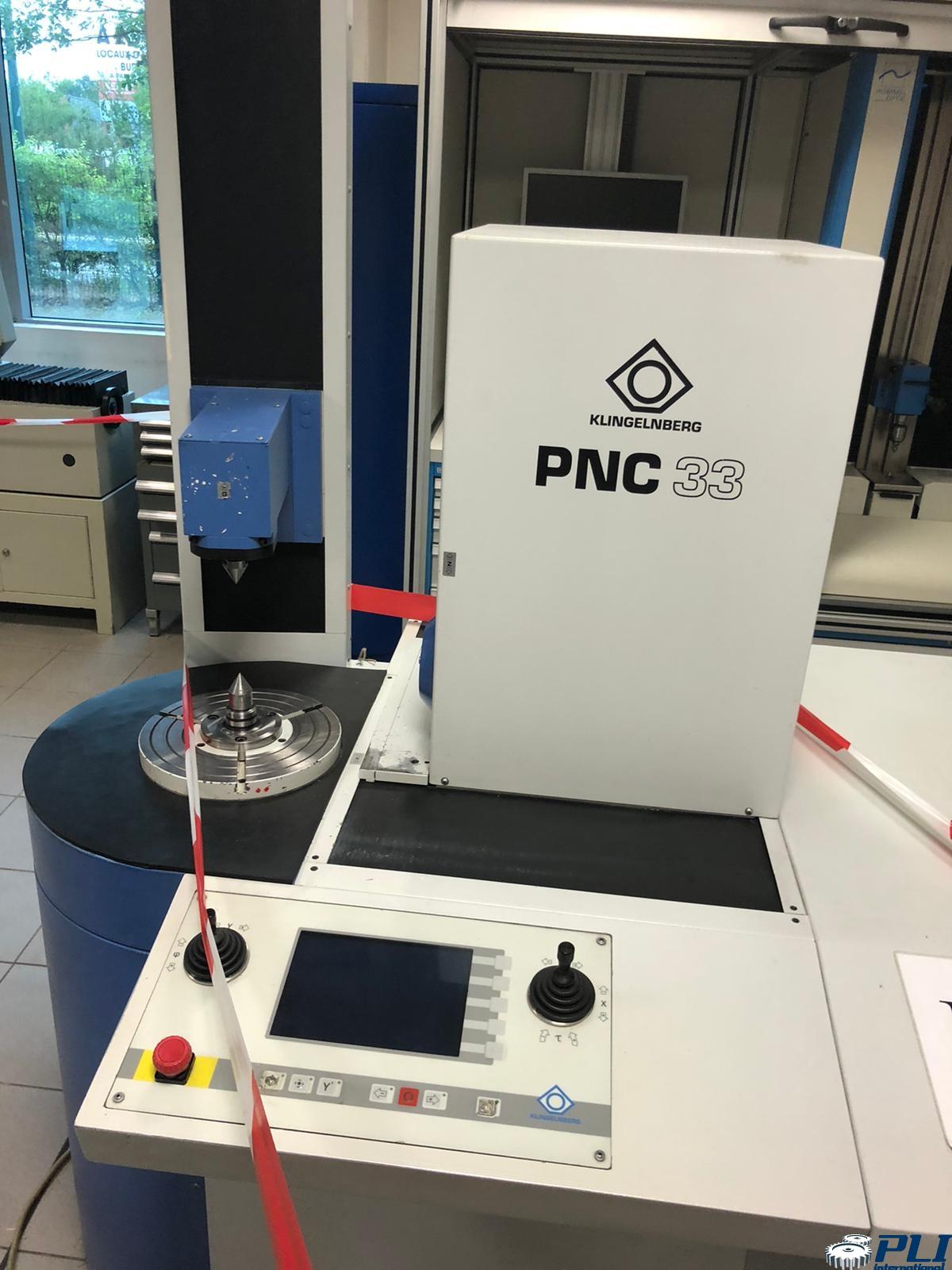

Gear Testing Machine – KLINGELNBERG PNC 33
Max. wheel diameter 330 mm
Max. module 15
Min. module 0.5
Weight of the machine ca. 1200 kg
Measuring range Z-axis 400 mm
Min/max distance between centers 15 – 990 mm
Connected load frequency 380 V
Total connected load 3 kVA
Dimensions of the machine ca. 2,9 x 2,0 x 2,2 m
Control unit CNC
