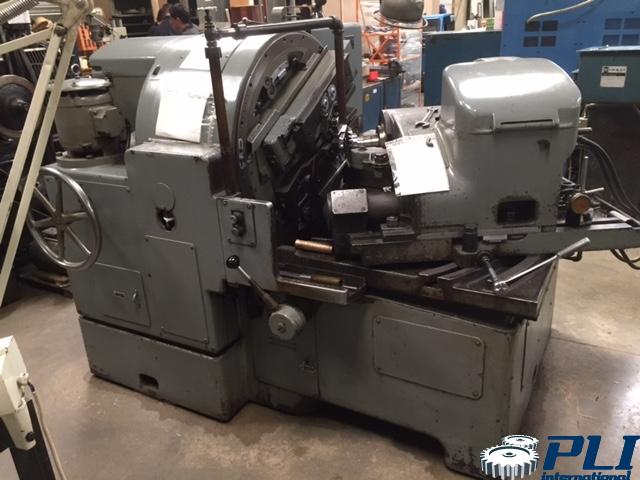

GLEASON 14 “CONIFLEX” STRAIGHT BEVEL GEAR GENERATOR
MODEL 14
Serial No. 33313
Maximum cone distance (2.75″-3.5″ face) 12″
Maximum cone distance (1″ face) 11-1/8
Minimum cone distance 0″.
Maximum pitch angle (angular gears) 105 deg
Maximum pitch angle (90-degree shafts) 84 deg/18min.
Minimum pitch angle 5 deg/42min.
Maximum ratio 10/1
Maximum face width 3.5″
Maximum Stroke Length .5″-4.5″
Index Range (inclusive ( up to 200) 5-100
Maximum pitch 3 DP (nominal)
Diameter of hole in work spindle (large end) 3-29/32″
Spindle taper per foot 39/64
Depth of spindle taper 6″
Diameter of spindle hole (15.75″ deep) 3.25″
Spindle nose to center line 2.5 to 15″
Diameter of hole through spindle 3-1/16″
