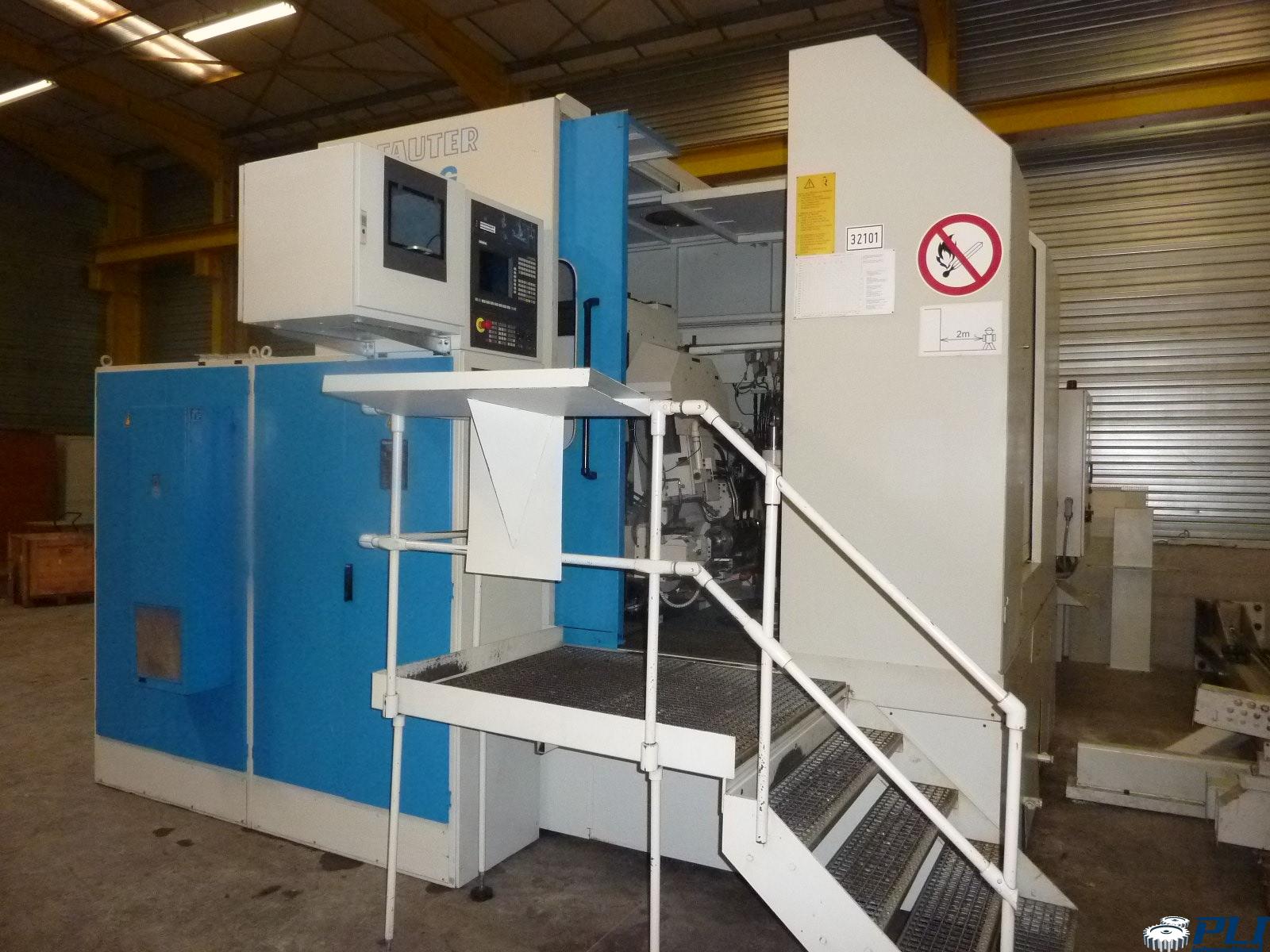

Features:
- Maximum diameter and grinding and control: 600mm– extension to 800mm possible
- Max. module approx. 15mm (profile depth 35mm)
- 600mm axial stroke
- Propeller angle +/-45
- Dressing wheel from Ø 300 to 170mm – max width 50mm
- Table bore Ø 125mm, depth 450mm
- Maximum table load 1200kg
- Weight of the machine about 11T
Equipment:
- Siemens 840C CNC
- Counter-mounting – automatically removable by NC axis for use as a workpiece loader or workpiece Ø > 600mm
- 3-circuit filter and cooler unit
Options
- Error diagnosis
- Automatic power supply
- Leveling wedges
- Integrated NC Dresser
- Automatic wheel balancing
- Diagnosis by phone ( Analog modem )
- Centering probe ( Renishaw )
- Integrated gear control (profile, helix, pitch, runout, ball rib) with Renishaw probe
- Color printer
- Rotating tailstock
- Oil mist vacuum cleaner
- Sensor for automatic centering ( for series )
- Automatic grinding strategy (the machine proposes a cycle strategy)
- Foot and head Ø control
- Heating program
- Hydraulic pot
- Gantry crane with automatic part change + 10-station conveyor
