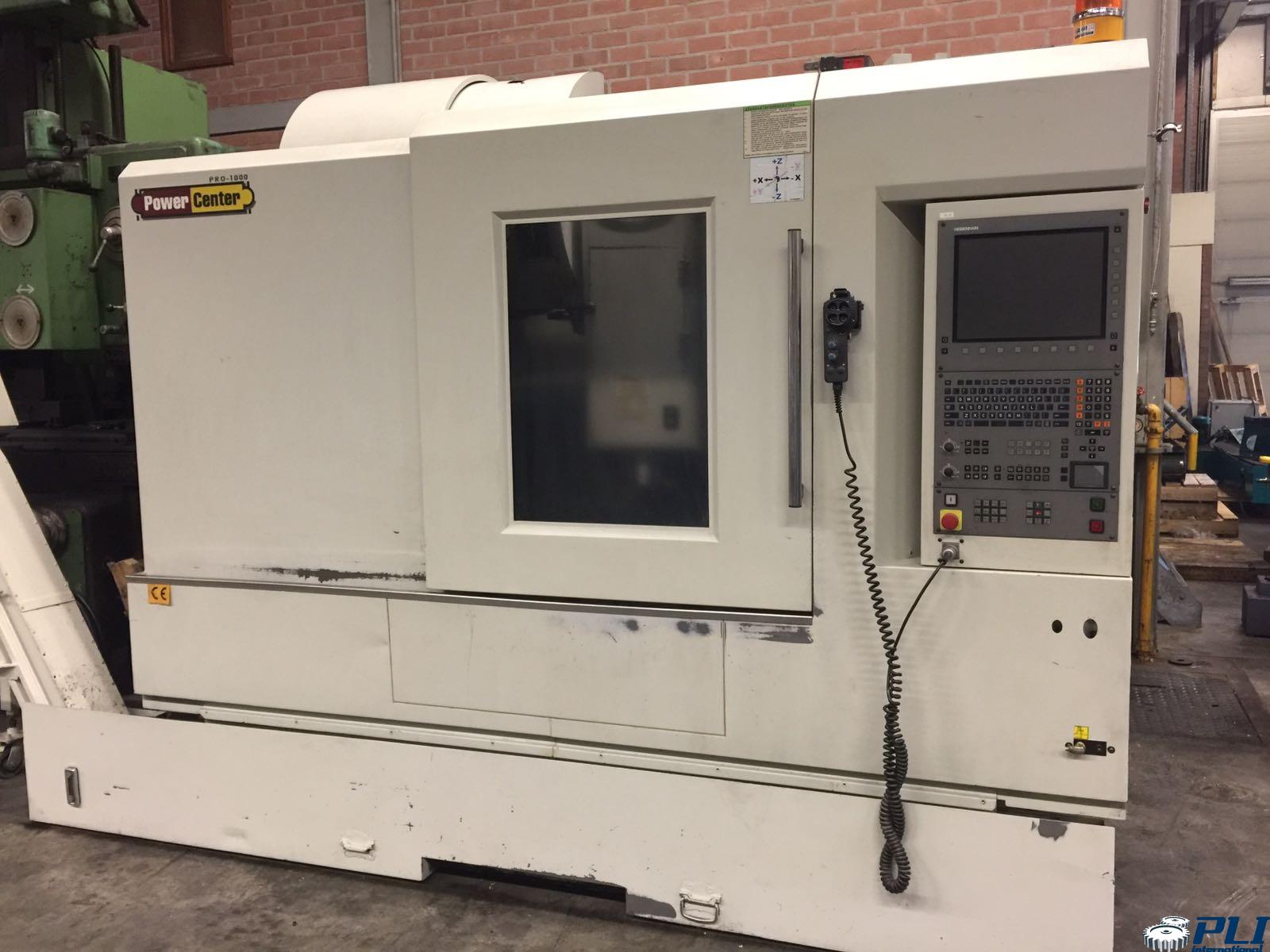

Heidenheim 530i numerical control
Strokes: X : 1000 mm Y : 600 mm Z : 630 mm
Table size: 1150 mm X 600 mm
Maximum weight on table: 700 kg
Spindle 10000 rpm
Spindle power : 12,5 Kw
Spindle cooling and pressurization
Tool changer ATC 24
BT 40 attachments
Electronic handwheel
Chip conveyor + crankcase washing
Spindle center watering 20 bars
Upper housing
M50 Air Blower
Spray gun
Machine weight: 6700 Kg
Dimension: 2900 X 2644 X 2890 mm
Heidenheim linear rules on the 3 axes
Tool probe IT130
