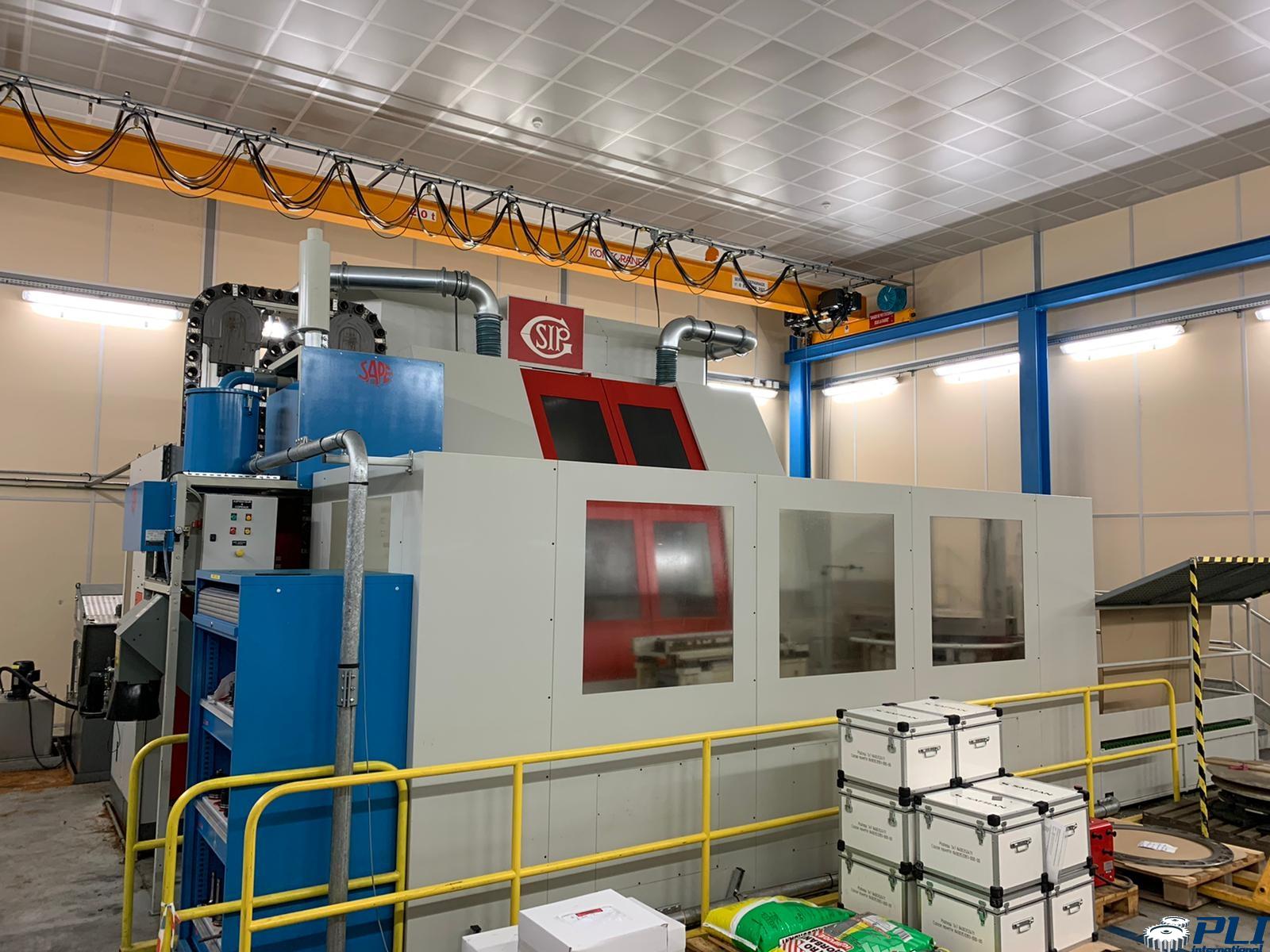

– Number of axes: 4
MILLING SPINDLE
– Tool type: ISO50
– Spindle power: 17 [kW]
– Spindle speed: 10-4000 [tr/min]
– Spindle hours: 29050 [h]
LINE AXES
– X/Y/Z axis travel: 1600/1100/1000 [mm]
– Fast forward speeds (X/Y/Z): 12 [m/min]
– Working feed rates (X/Y/Z): 0.0001-8 [mm/min]
TOOL CHANGER
– Type of tool changer: Loader arm
– Tool magazine capacity: 120
TABLE
– Table dimensions : 1700 X 1200 [mm]
– Weight capacity on table: 4000 [kg]
– Distance table / spindle nose (min/max): 85-1085 [mm]
PALLET CHANGER
– Pallet size : 1200 X 1200 [mm]
– Number of pallets : 2
POWER SUPPLY
– Supply voltage: 400 [V]
– Installed capacity: 55 [kW]
DIMENSIONS
– Floor dimensions : 51100 X 7250 [mm]
– Machine height: 3610 [mm]
– Machine weight : 15000 [kg]
MACHINE HOURS
– Hours on: 94683 [h]
– Working hours: 29050 [h]
Equipment
– CNC : Siemens 840 D
– Interface: Ethernet / RS232 / USB / PCMCIA
– Conversational: Shopmill
– Remote electronic handwheel
– Direct measurement rules
– Rigid tapping
– 3-color status lamp
– Divider type: Integrated 4th axis CNC
* 4th axis travel: 360 [°]
* 4th axis indexing accuracy: 0.0001 [°]
* with high pressure pump: 50 [bars]
* with paper filtration
* with cutting fluid cooling unit
– Spindle center watering
– Chip conveyor
– Oil mist vacuum cleaner
– Spindle cooling
– Tool probe: Renishaw NC4 laser
– Workpiece sensor: Renishaw
