Year: 2012

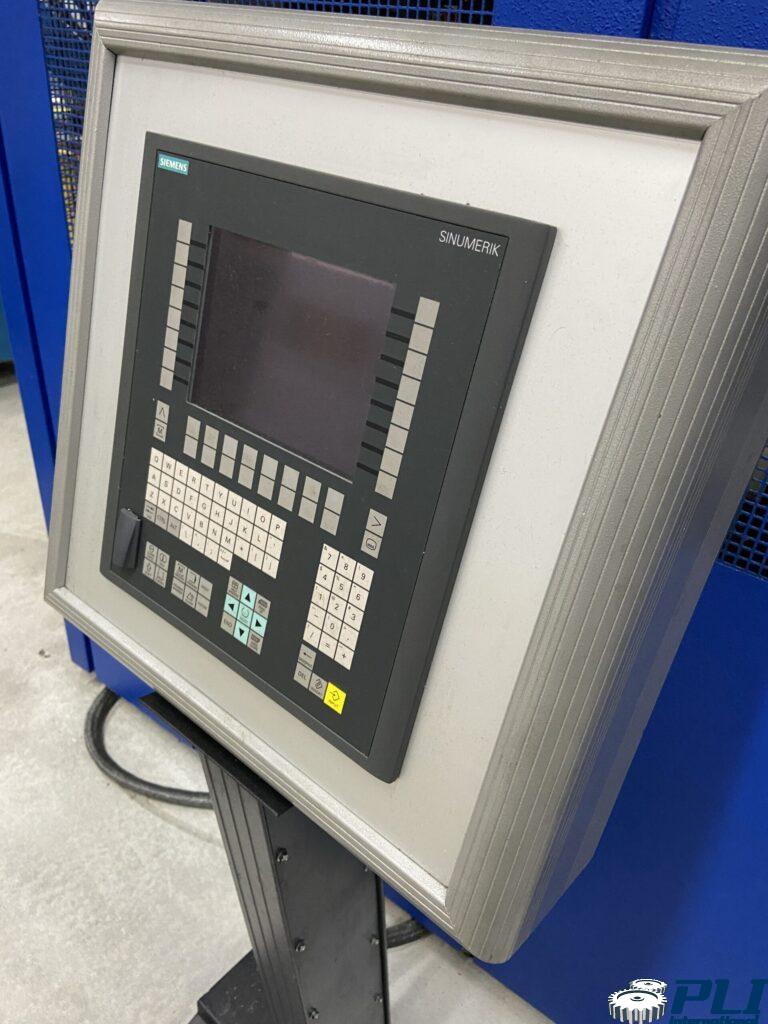

Siemens 840
Cone HSK 100 – 50 kw

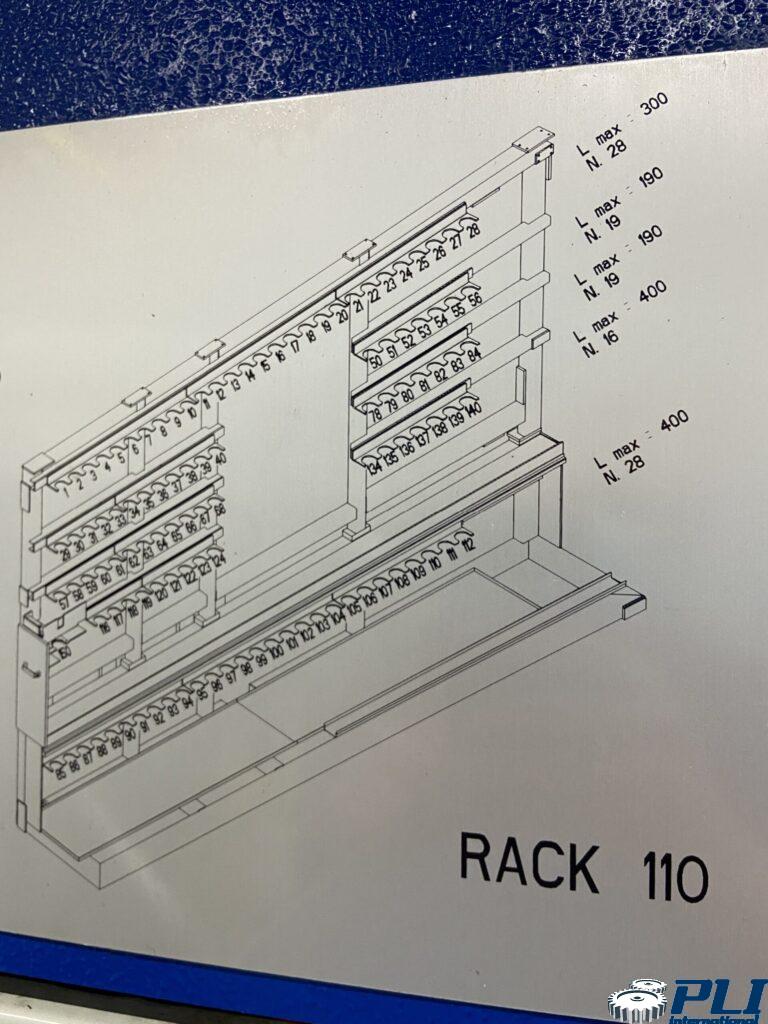

110 tool magazine
Number of pallets : 2

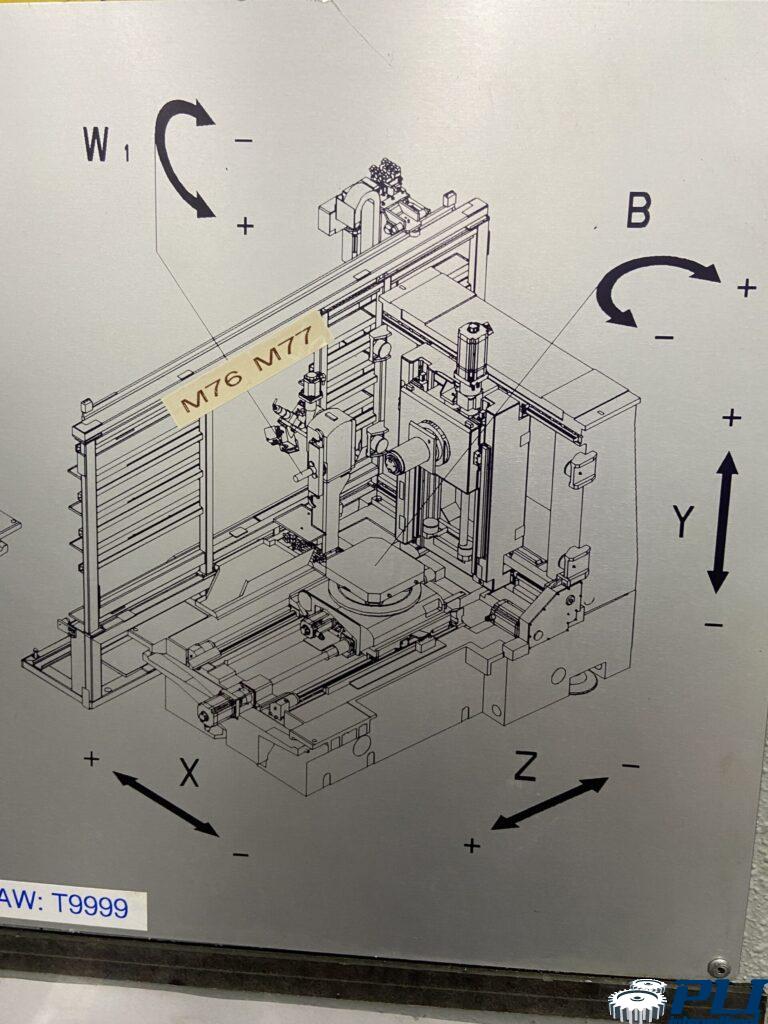

4 axes – 360.000° indexing
Spindle 8,000 rpm
Strokes X,Y,Z : 1000 x 850 x 850 mm
Distance between spindle axis and pallet surface: 80 mm
Distance spindle nose to pallet surface: 140 mm

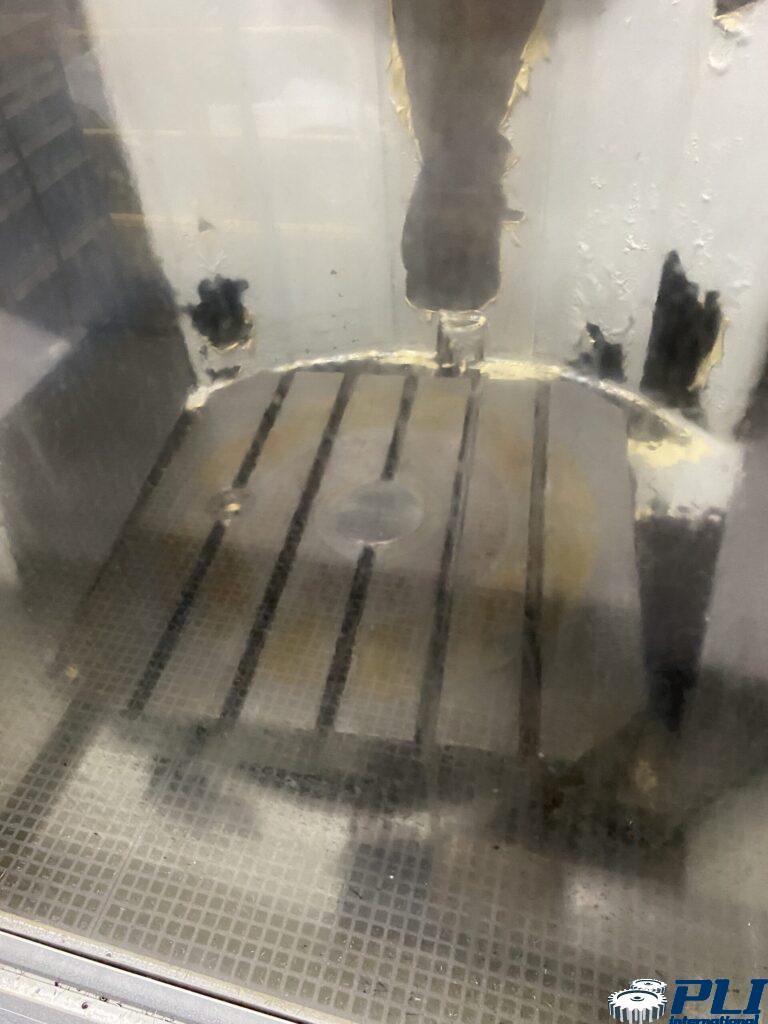

Pallets: 630 x 630 mm
Maximum pallet weight 800 kg
Machine size: 7100 x 5000 x 3200 mm
Weight 28T
Equipment:
Chip conveyor
Spindle refrigeration unit
Refrigeration plant for watering liquids
Vacuum cleaner
Smoke extractor
