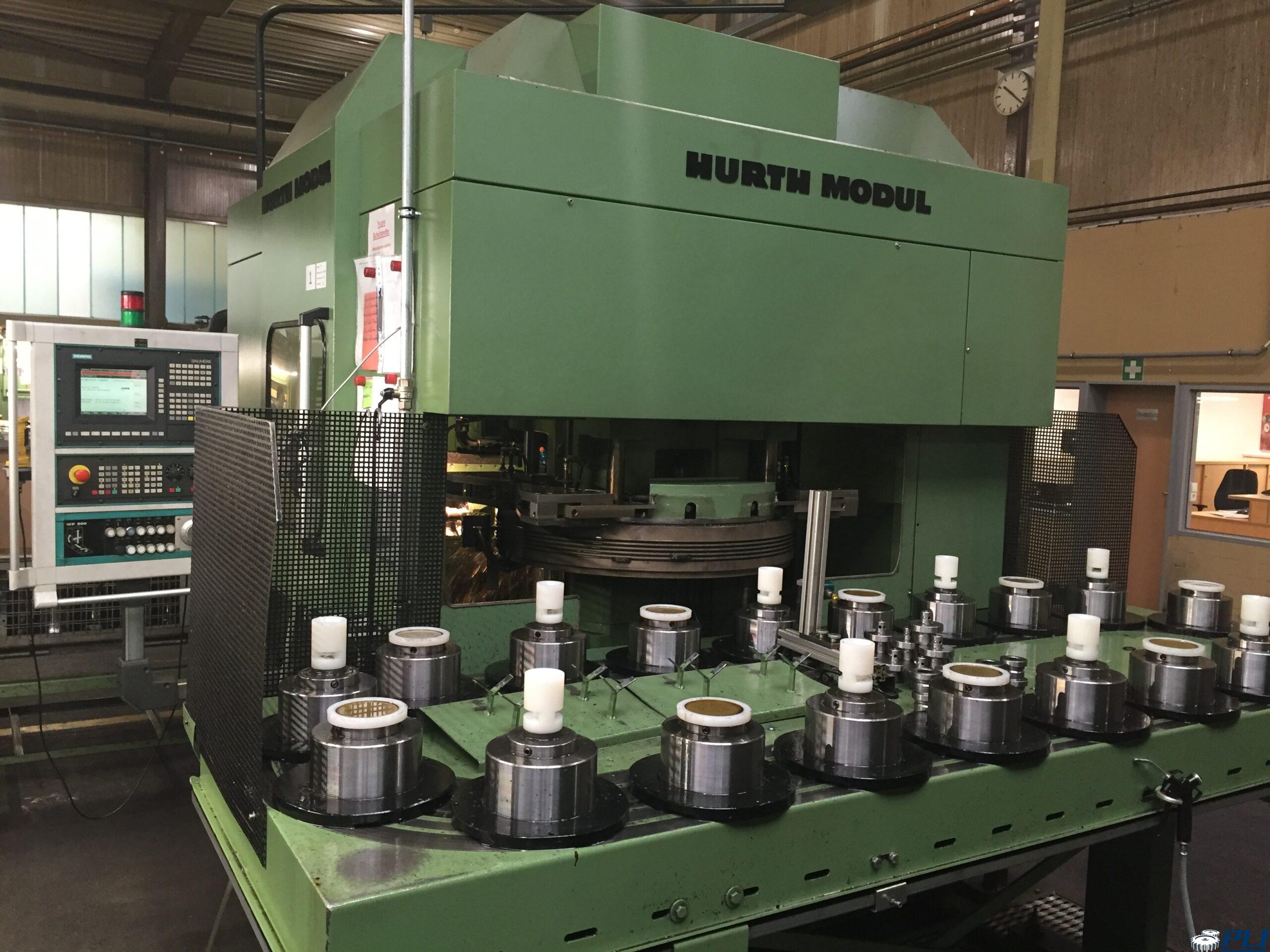

CNC milling machine HURTH MODUL WF300
Year: 1997
CNC : SIEMENS 840C
Maximum diameter of the piece : 315 mm
Maximum module: 8
X stroke: 210 mm
Y stroke: 240 mm
Z stroke: 360 mm
Head tilt: +/- 45
Maximum diameter of the cutter: 175 mm
Cutter speed: 100/120 rpm
Distance between milling axis and table: 210/570 mm
Distance between milling centre and workpiece centre: 40 / 250 mm
Table diameter : 315 mm
Table bore: 150 mm
Hydraulic clamping pot
Automatic power supply
Weight : 10 500 Kg
