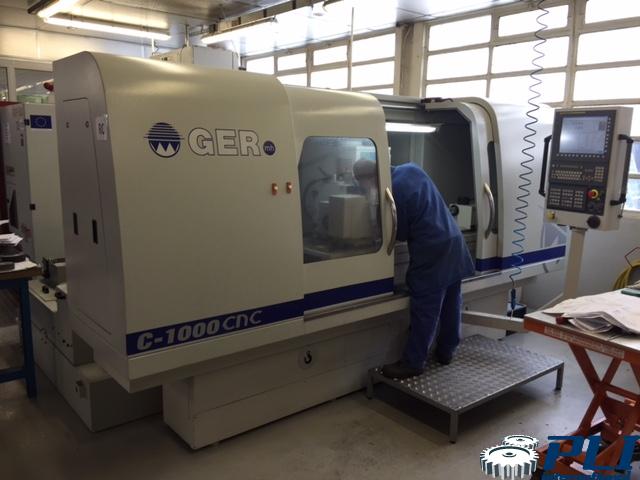

Technical characteristics :
Working time: 600 H
Length between spikes: 1000 mm
Spike height: 140 mm
Maximum grinding diameter: 275 mm
Internal spindle diameter: 80 mm / max. speed: 25,000 rpm
Maximum weight between points: 100 Kg
Z-axis Longitudinal Table
Table travel 1150 mm
Table orientation +/- 9°.
Working speed: 0.01 – 15 000 mm/mn
Resolution 0.001 mm/mn
Positioning control: Encoder
X axis Transverse (wheelhead)
Total stroke: 250 mm
Minimum programmable increment: 0.01 mm/mn
Maximum programmable increment: 15,000 mm/min
Resolution 0.001 mm
Positioning control: Digital linear ruler
Grinder head
Grinding head with automatic rotation: -20º/+210º digitally controlled
Dimension of the left wheel : 450*50*127 mm (cone and face grinding)
Peripheral speed: 45m/s
Motor power: 5.5 kW
Resolution: 0.001 °.
Workpiece carrier head
Turning angle: Manual +/- 45
Rotational speed: 10-1000 rpm
External spindle mounting: DIN 55.026 size 5
Inner cone: Morse 4
Internal bore: 32 mm
Tailstock
Inner cone of the axis: Morse 4
Operation: Manual as standard
Tailstock travel: 40 mm
Shaft diameter: 50 mm
Maximum taper correction: +/- 0.050 mm
Engines
Hydraulic pump: 0,10 kW
Sprinkler pump: 0.25 kW
Longitudinal axis: 7.3 Nm
Cross axis: 5.1 Nm
Equipment :
Axial probe
GAP and CRASH capture (anti-collision)
Arborage 230 L
100l/min pump
Paper filtration
Magnetic separator
